Technical solution for rental and stage rental LED wall display :
1. High Quality Components
LED lamp: High-brightness and anti-static LED lamps with wide viewing range and lower power consumption. It can save your rental led display screen energy.
Driving IC: Constant current LED driving ICs with current gain control; the light decay can be controlled to maintain a stable brightness, which is suitable for outdoor led screen advertising.
Connectors: Aircraft-grade reliable connectors, ensuring stable power supply and data transmission to make led screen for best led wall.
Antiglare mask: Patented new-style antiglare mask on the surface of hd LED display absorbs direct light to eliminate light reflection, thus no glare will disturb the audience. It also improves contrast ratio and enlarges the viewing angle of the large video display screen.

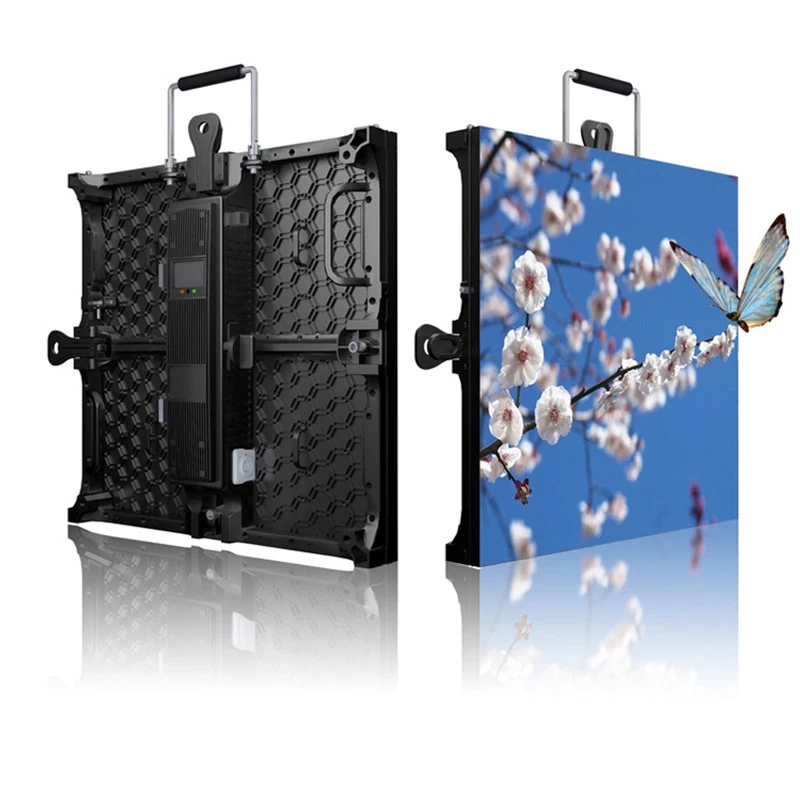

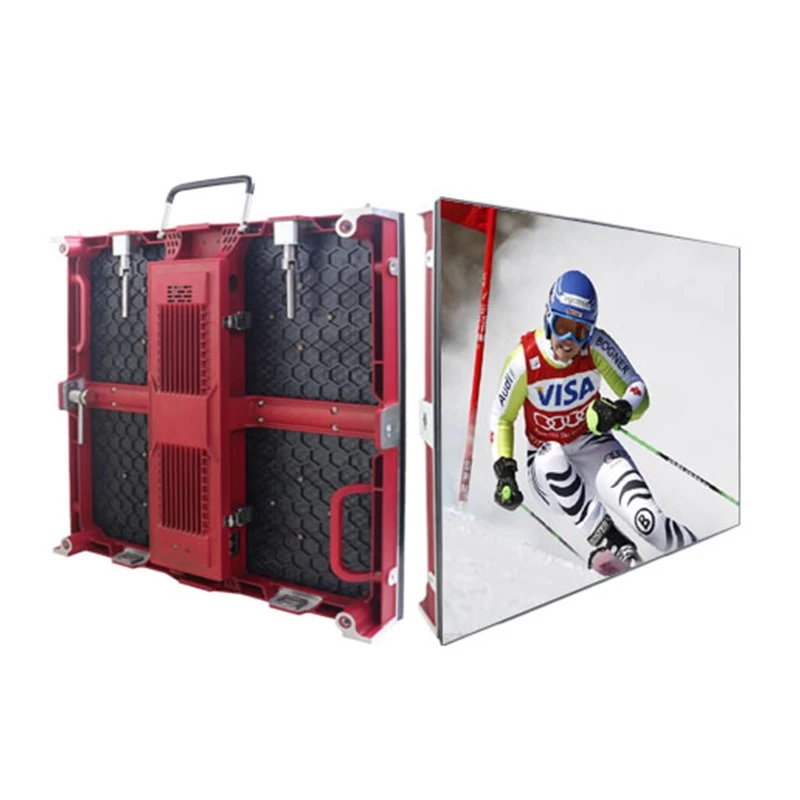

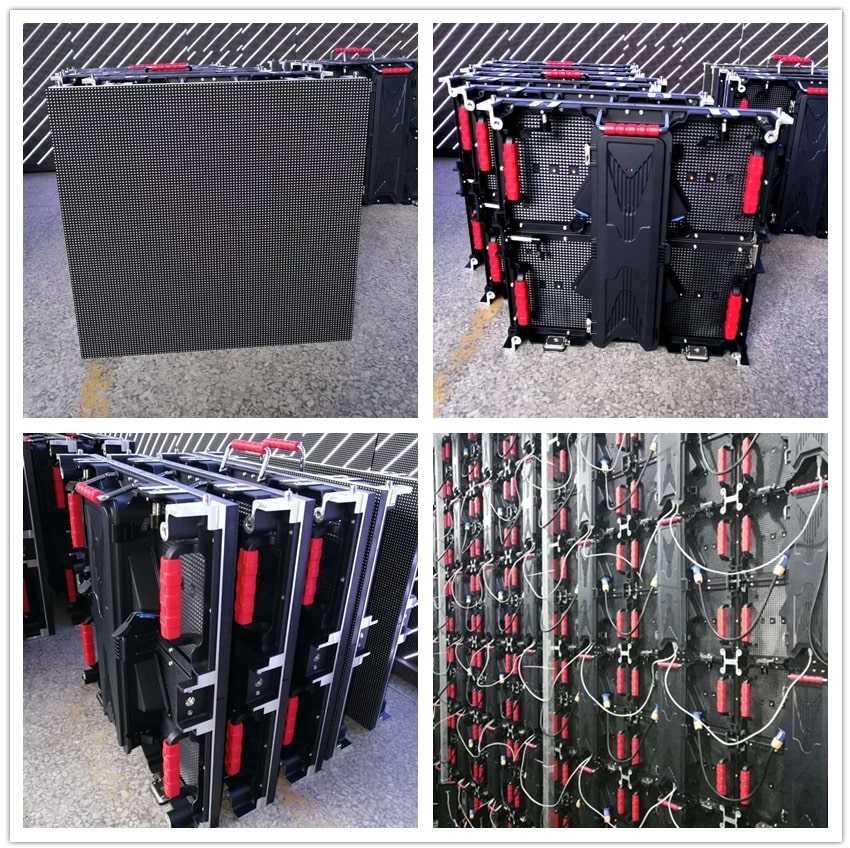

Die-casting aluminum cabinet: thin, light and precise die-casting aluminum cabinets, achieving seamless connection between cabinets, easy to transport and convenient to assemble and disassemble. Side lock and hanging mechanism make quick assembly. These feature make outdoor digital screen displays more suitable for live events and no need to worried about digital screen price.

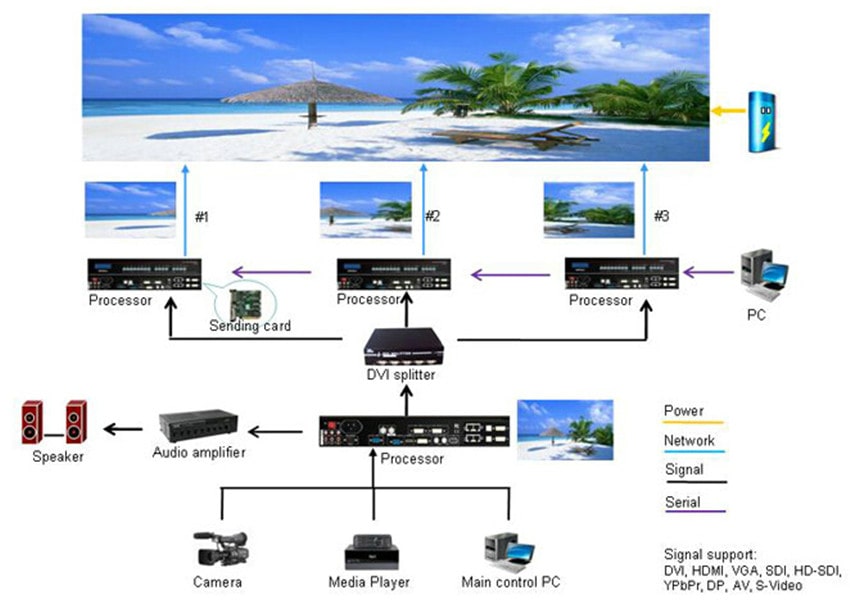

Video processor: Professional video professor, supporting various video signals such as AV, S-Video, RGB, YPBPR, VGA, DVI, HDMI, SDI, etc. to make led running display.
2. Advanced Control Technology
Calibration: Adopting Pixel-by-pixel brightness and color calibration technique to keep uniform brightness and natural colors of LED hd screen display.
Adjustable brightness: Adjusting screen brightness manually, appropriate and comfortable for the audience. It is programmable led panel , easily to control.
Double backup system: When one control system falls into malfunction, the other one will back up and start work immediately to make smd led display screen effect more stable.
High refresh rate: Using special controller and driving ICs to guarantee refresh rate at least 1920 Hz.

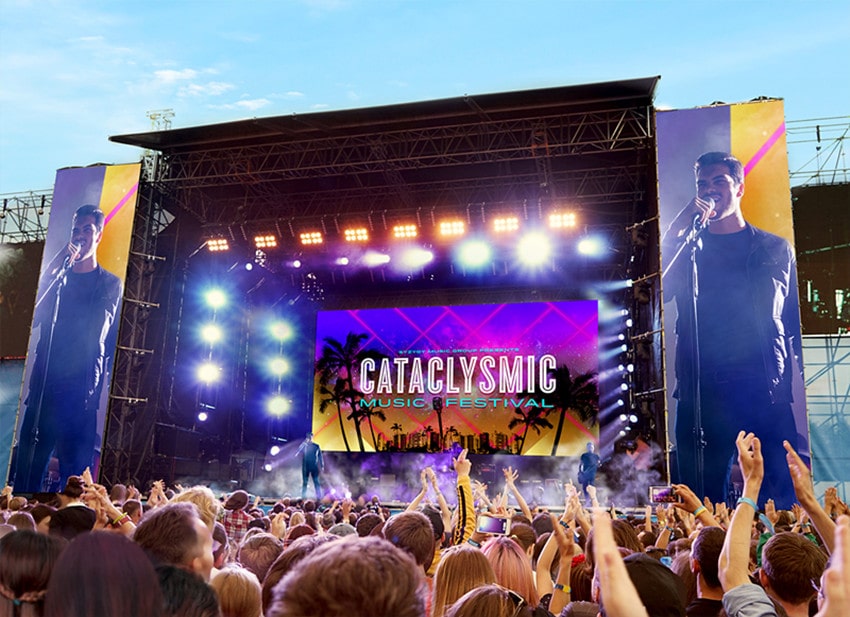

Live broadcast: Providing live broadcast with professional video professor or video server for any events such as concerts, shows, conventions, trade expo, sports, etc. which is perfection for outdoor led advertising panel.
|
Pixel
|
Dot Pitch
|
4.81 mm
|
|
Pixel Configure
|
1R1G1B SMD 3IN1
|
|
Pixel Density
|
43,264 Pixel/m²
|
|
LED Lamp
|
LED TYPE
|
SMD 2727
|
|
Chip Brand
|
EPISTAR
|
|
Wavelength & Brightness
|
Red:620-625nm;>270mcdGreen:520-525nm;>550mcd
Blue:470-475nm;>90mcd
|
|
Module
|
Module Resolution
|
52 Pixel * 52 Pixel
|
|
Drive Mode
|
Constant Current Drive
|
|
Scanning Method
|
1/13 Scanning
|
|
Module Dimension
|
250 mm(Width)x250 mm(Height)
|
|
Drive IC
|
MBI5124/MBI 5153 /ICN2038S /ICN2053
|
|
LED & Drive Composition
|
Light-Drive Combo
|
|
Refresh Rate
|
>1920HZ
|
|
Cabinet
|
Cabinet Thickness
|
80 mm
|
|
Cabinet Assembly
|
Connecting Sheet
|
|
Cabinet Color(Front/Back)
|
Customized
|
|
Aviation Plug
|
wp20
|
|
Maintenance Mode
|
Front / Back Maintenance
|
|
Cabinet Material
|
Die Casting Aluminum
|
|
Cabinet Dimension
|
500*1000mm /500*500mm
|
|
Module QTY
|
2(Width)X4(Height) or 2(Width)X2(Height)
|
|
Power Supply
|
G-energy /Mean well
|
|
LED Screen
|
Viewing Angle
|
Horizontal : 140 ° Vertical: 140 °
|
|
Brightness
|
4000-4500cd/m²
|
|
Best Viewing Distance
|
4~50m
|
|
LED Life
|
100,000Hours
|
|
Maximum Power
|
800w/m²
|
|
Average Power
|
400w/m²
|
|
Input Voltage
|
220V±10% Or 110V±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|
Protection Grade
|
IP 65
|
|
LED Screen Weight
|
17.5 kg/cabinet
|
I.Function introduction of led display screen ：
1.Honghui LED is not just one of digital display manufacturers ,we could meet different customer requirements, we do P1.667,P1.8, P1.9, P2, P2.5, P3, P3.91, P4,P4.81, P5, P6,P8,P10 LED display.
2.Synchronous and Asynchronous system option, plug and display, we can give solutions for different led display case and need not worried about led wall screen price.
3.LED pixel display screen can show video, animation, picture, live show,tv show,etc.
II.Advantages of outdoor wall led display screens :
1.super flatness& uniformity, large view angle, high brightness which can make excellent advertising led display screen.
2. Long visual distance, screen can be viewed in a faraway space for mdwndown area, which is also led sign panel can show led digital signage.
3. Screen can work under very strong sunlight and very suitable for led advertising signs.
4. Outdoor standard cabinet applied with strong humidity resistance ability as well as corrossion resistance ability; cabinet still works in good condition under all kinds of bad weather; strong durability.
5. Wide application usage, high IP grade,cost effective, customers can enjoy high-quality visual effect with favorable price, greatly lower investment cost.
III.Application area of led display screen :
1.Full color LED display : Equally or compactly make the red, green, blue color in one dot, equally distribute at the panel tom make the whole display.
2. Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment,etc.
