1.High brightness, stable performance, long lifespan and low power consumption. Accurate color uniformity and smoother, flicker-free video.
2.16, 777, 216 colors combined with 256 level grey scale by each Red, Green and Blue LED.
3. Extreme viewing angle by 3IN1 SMD, better color mixture and gorgeous image quality.
4. Latest LED technology and control method accepted, making excellent performance with attractive price.
5. Point by point correction available
6，size can be custom made
|
Item
|
Technical Specification
|
|
Pixel
|
Pixel pitch: 5mm
|
|
Pixel configuration: 1R1G1B
|
|
Brightness: Red: 600mcd Green: 2300mcd Blue: 500mcd
|
|
Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm
|
|
Module resolution: 32x32pixels
|
|
Module
|
Module size: 320mmx160mm
|
|
Module resolution:64x32pixels
|
|

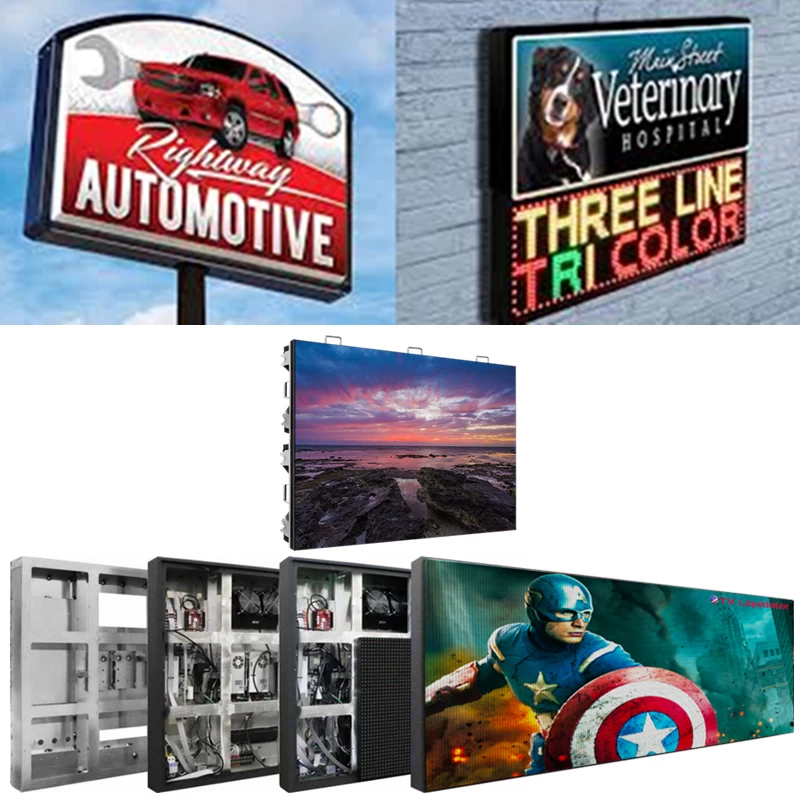

Cabinet
|
Cabinet resolution: 16384pixels
|
|
Cabinet material: Steel
|
|
Gross weight: 35kg
|
|
Module quantity: 16pcs= 4(w) x 4(h)
|
|
Cabinet size: 96mm×800mm×100mm
|
|
Power consumption : Max.:1900W/m² Average: 900W/m²
|
|
Screen parameter
|
Drive method: 1/8 scan constant current
|
|
Brightness:1800-2500cd/m²
|
|
IC driver: MBI 5024
|
|
Density:40000 dot/m2
|
|
Whole display flatness: ≤ 1mm juncture
|
|
Best view distance: ≥5m
|
|
Viewing angle: Horizontal: 120° Vertical: 60°
|
|
Humidity(RH): ≤ 90~95%
|
|
Working temperature: from -20°C~ +50°C
|
|
Working voltage: AC220V/110V±20%
|
|
Refresh frequency: ≥ 300Hz(Linsn)
|
|
Frame rate: ≥ 540Hz
|
|
Protection grade: IP67
|
|
MTBF: More than 10000hrs
|
|
Life time: 100,000 hrs
|
|
Control system
|
Control system: Linsn
|
|
Signal interface: DVI
|
|
Communication distance: The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers
|
|
Systems operating platforms :XP,WINDOWS(WIN95,WIN98,WIN2000)
|
|
Input Signal:RF.S-VIDEO.RGBTV.YUT.YC.COMPOSITION
|
|
Image adjustment:contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc
|
|
Life span:100,000 hours
|
|
Out-of Control rate:0.0001
|
|
Control system:Synchronized
|
|
Operating Environment Temperature :-20℃-65℃ Optional
|
