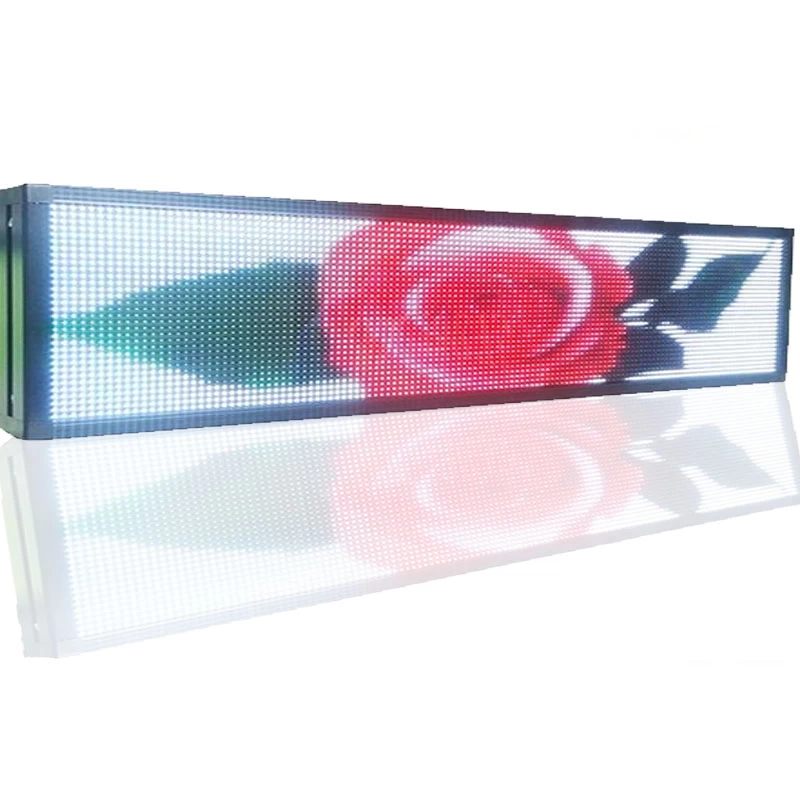

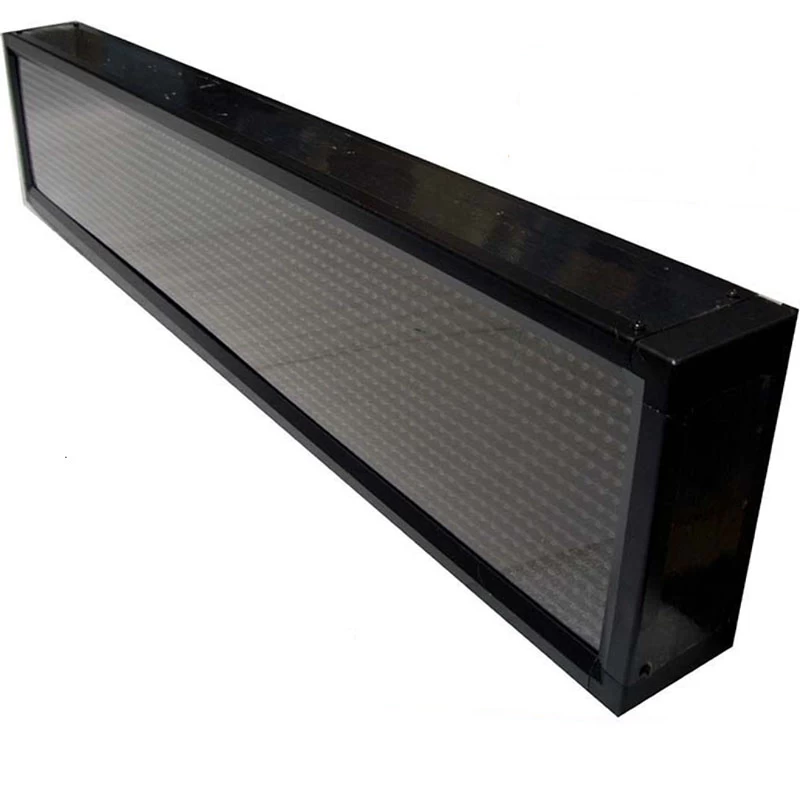

With enriched industrial experience and knowledge, we are providing an excellent range of LED Scroll Boards. Widely demanded by hotels, restaurants, banks, commercial shops and others, the offered boards are manufactured using high grade inputs and latest technology in compliance and advanced technology. In addition to this, our offered signage boards are quality checked under the supervision of quality controllers, in order to ensure their flawlessness.
Specifications
*. high brightness but low energe consumption
*. kinds of dynamic effects can be easily controlled
*. size choice is available(meet customer-designed)
*. color selective: RGB
Package including
*LED sign 1 PCS (size 231x23cm / 91 x 9 Inch)
*Signal connection cable
* Professional installation bracket
*USB with free software and English user manual
Feature & Function
P5 LED Module model
|
Color
|
RGB
|
LED Type
|
SMD
|
Module Resolution
|
W64 X H32
|
Module Size(MM)
|
W320 x H160
|
Driving Method
|
1/16 scan
|
Led display parameter
|
Voltage
|
220V or 110V ±10%
|
Material
|
Indoor Aluminum Frame Waterproof (IP20)
|
Cabinet Size (mm)
|
W 2310x H230 MM (91X9 Inch)
|
Power Consumption Max (w/set)
|
60 Watt
|
Brightness(CD/㎡)
|
≥1500
|
Viewing Angle
|
120º/70º
|
Theoretic LED Working Life
|
More than 100000 hours
|
Control Method
|
USB control(network port,optional)
|
Display function
|
Date, Text, Picture, Logo
|
