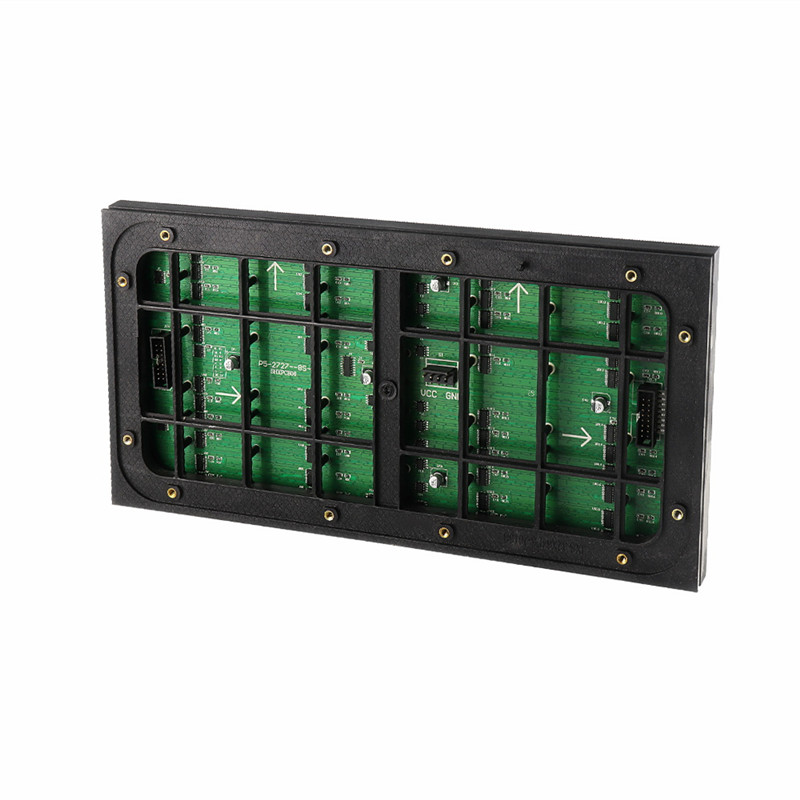

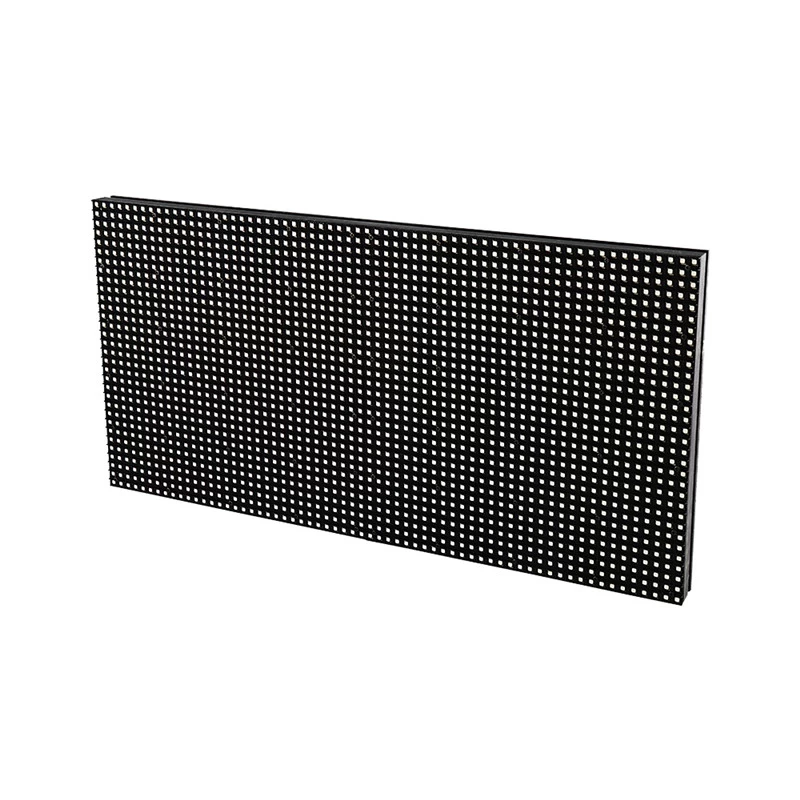

P5 Outdoor Full Color Clear Video LED Display Module (320*160 mm)



Outdoor P5 LED Display Module Specification

Pixel

Pixel  Pitch

5 mm

Pixel Configure

1R1G1B SMD 3IN1

Pixel Density

40,000 Pixel/m²

LED Lamp

LED Type

SMD 2727

LED Lamp

Nation Star /King light

Chip Brand

EPISTAR

Wavelength & Brightness

Red:620-625nm;174-230mcd

Green:520-525nm;680-900mcd

Blue:470-475nm;130-160mcd

Module

Module Dimension

320 mm(Width)x160 mm(Height)

Module Resolution

64 Pixel * 32  Pixel

Scanning Method

1/8 S

Drive IC

5020 /5124 /5153 / 2037 /2038 /2038S/2053

Refresh Rate

>1920HZ

Viewing Angle

Horizontal : 140 °     Vertical: 140 °

Brightness

>5500cd/m²

Best Viewing Distance

5-100 m

LED Life

100,000Hours

Maximum Power

800w/m²

Average Power

400w/m²

Input Voltage

220V/110V ±10%

Operation Environment

Temperature: -20°C~60°C; Humidity: 10%~95%

Protection Grade

IP 65

LED Module Weight

0.45 kg/piece
