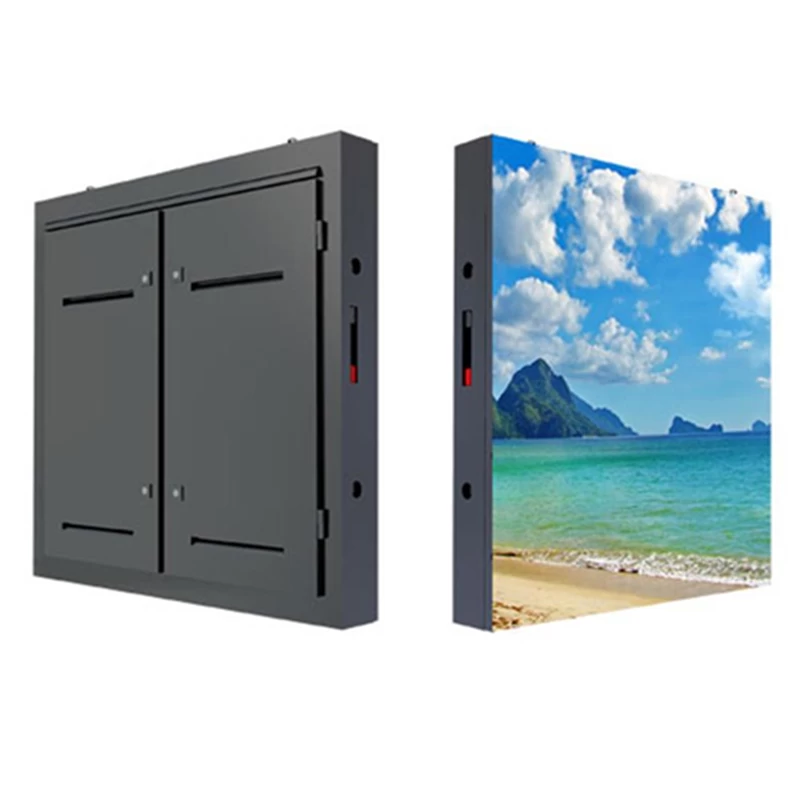

P5 Outdoor RGB Fullcolor led display ,billboard advertising led screen

Applicable to outdoor stage, TV studio, park, airport station, exhibition, widely used in shopping malls, conference halls and other places such as high-definition display, fast installation.

Facebook Twitter Pinterest LinkedIn 分享
P5 Outdoor fullcolor led screen main parameters

Unit Module

Item Parameter
Model Number CN-P5-8S
Module size 320mm*160mm
Pixel pitch 5mm
Pixels Density 40000pcs/m2
Pixel configuration 1R1G1B
Package mode SMD2727
Pixel resolution 32dots(W)*32dots(H)
Max Power consumpion 30W
Module thickness 17mm
Weight 0.8KG
Drive type Constant drive
Scan mode 1/8scan
Port type HUB75
Brightness of white balance ≥5000cd/㎡

bracket

Size 320mm*160mm

LED

Unit Module

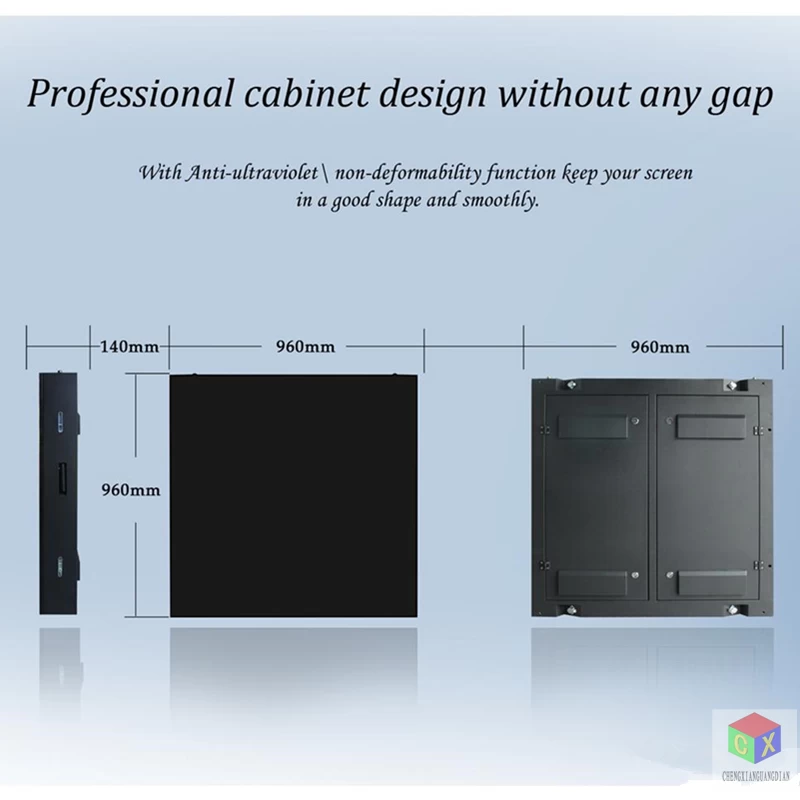

Dimension 960mm*960mm
Quanty of Module 18
Power supply 5V/60A*3 pcs
Thermal discharge fan 1pcs
Pixel per cabinet 192*192
Best viewing distance 4M～20M
Best viewing distance 140°(W) 120°(H)
Temperature storage:-35℃～+85℃ working:-20℃～+50℃
Opration humidity 10%-95%
Thickness 85mm

Power

Working voltage AC220V±10%
Average Power consumption 260W/㎡
Max.Power consumption ≤800W/㎡
Current ≤20mA(single LED)

Control system

CPU Pentium4 or above
Operation system WIN98/2000/NT/XP
Control method Synchronization

Main technical

parameter

Driving device Constant currentdriver
Refresh frequency ≥400HZ
Grey scale/colors 256levels of each color(RGB)/16.7M colors
MTBF ≥9000hours
Power switch Automatic switch
Display Mode 800*600/1024*768
