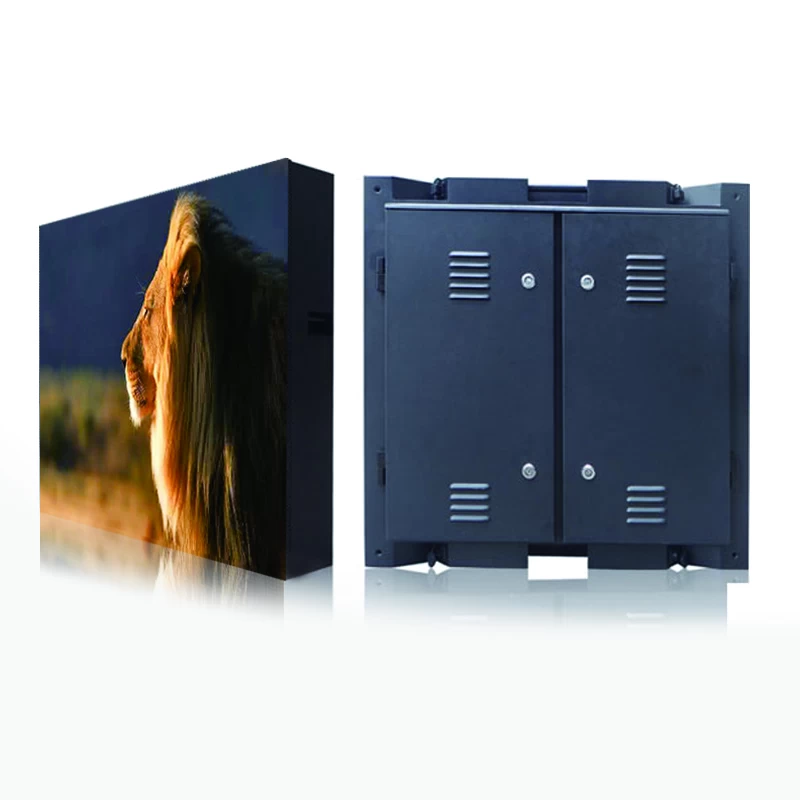

P5 SMD Outdoor Fixed High Definition LED Display for Live Show Event

P5 SMD full color led display for outdoor advertising display, high brightness could meet the outside environment request, to attract the audience's vision.

  • Weight/cabinet55kg
  • Operation temperature-20 ℃~ +65 ℃
  • Working voltage110/220V
  • LED chipSMD2727
  • ApplicationStreet/building/plaza/publi service places
  • CertficationCE, RoHS
  • Brightnessup to 5000cd/㎡
  • Module size320*160mm
Facebook Twitter Pinterest LinkedIn 分享
SMD P5 outdoor fixed LED display with 160x160mm LED module for live video Showing

Features of outdoor panel P5 led display:
1、Energy-saving design to lower 25% power consumption, help you to save the cost in your project.
2、Professional aviation connectors, stable and safe.
3、High-level durable material and Ip65 to resist any terrible weather.
4、Support one-by-one pixel revise to assure the uniformity of brightness and color.

SPECS



          Pixel Pitch

5mm

          LED Package

SMD2727

          Pixel Density

40,000 dots/㎡

          Color Configuration

1R1G1B

          Brightness

Up to 5000cd/㎡ @ white color

          Refresh Rate

Up to 1920Hz/s, could be adjusted

          Gray Scale

16.7M color (Synchronized)

          View Angle

H:140°, V:120°

          Module Size

320x160mm

          Cabinet Size

960x960mm

          Cabinet Material

Iron/Aluminum

          Viewing Distance

5-100M

          Drive Mode

1/8 scan

          Power Supply

AC220V/110V/50 Hz, or manual switch

          Lifespan

100,000 hours

          Trouble Free Time

10,000 hours

          Working Temperature

-20°C + 65°C

          Environment Humidity

10% ~ 95%

          Control System

Linsn/Nova
