Product Description:
1. Made with aluminum alloy with very light weight
2. Super thin cabinet size ,only 60mm thickness
3. Rental design, easy to install and dismantle without any tools
4. Seamless splicing,good heat dissipation,Low noise
5. High brightness, good display performance and cost performance
6. Wide view angle,good heat dissipation
7. 2 years quality warranty, according to the international standard of FCC,CE,RoHS, etc.
8. Packed with flight case or wooden case as required
9. Widely used in public advertising, shopping mall, theatre, live show, live meeting, banquet, stage background etc.
Indoor P6

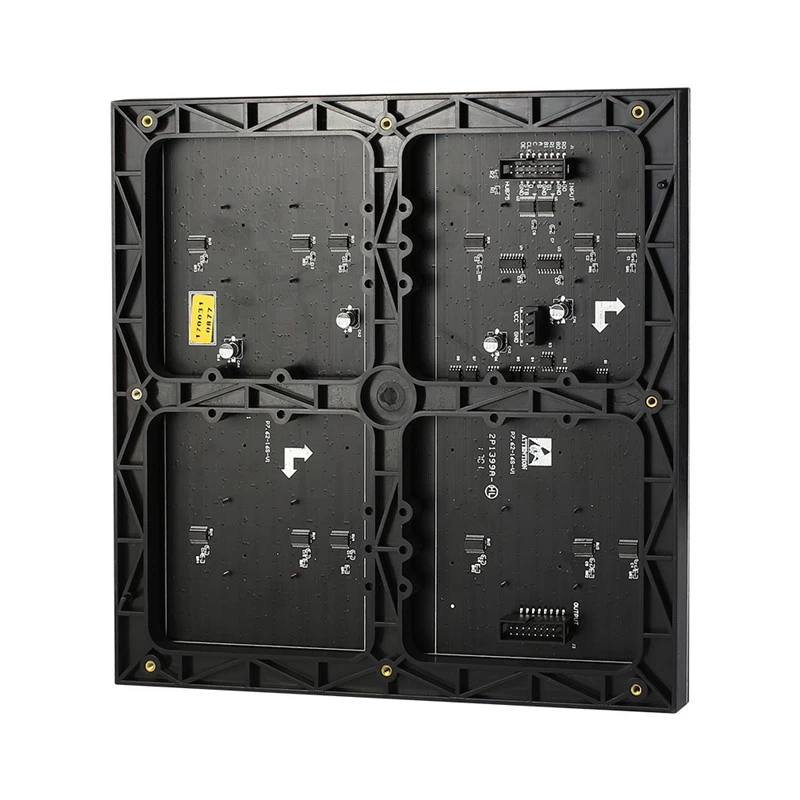

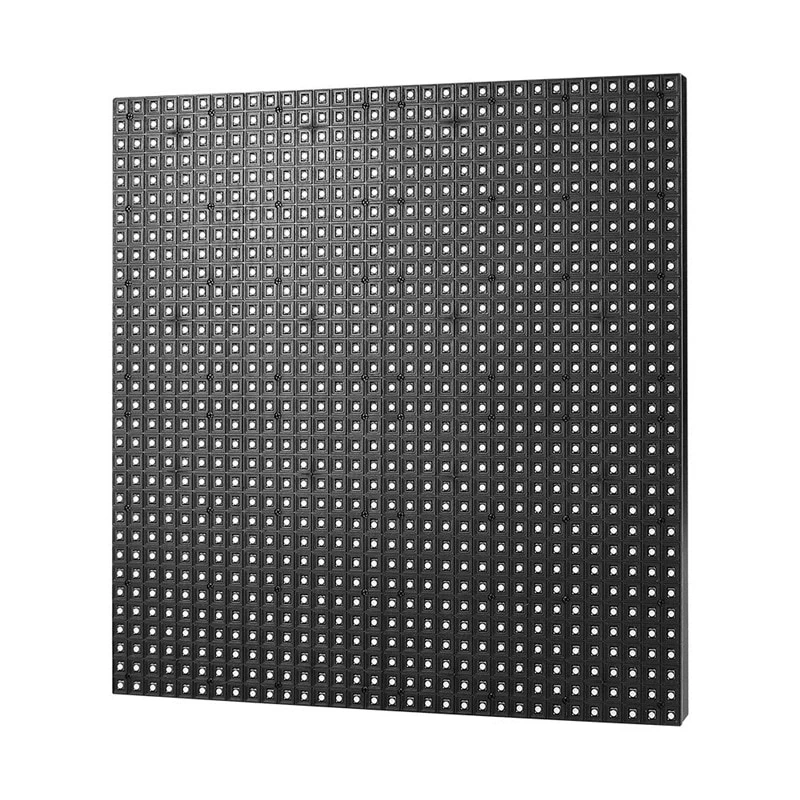

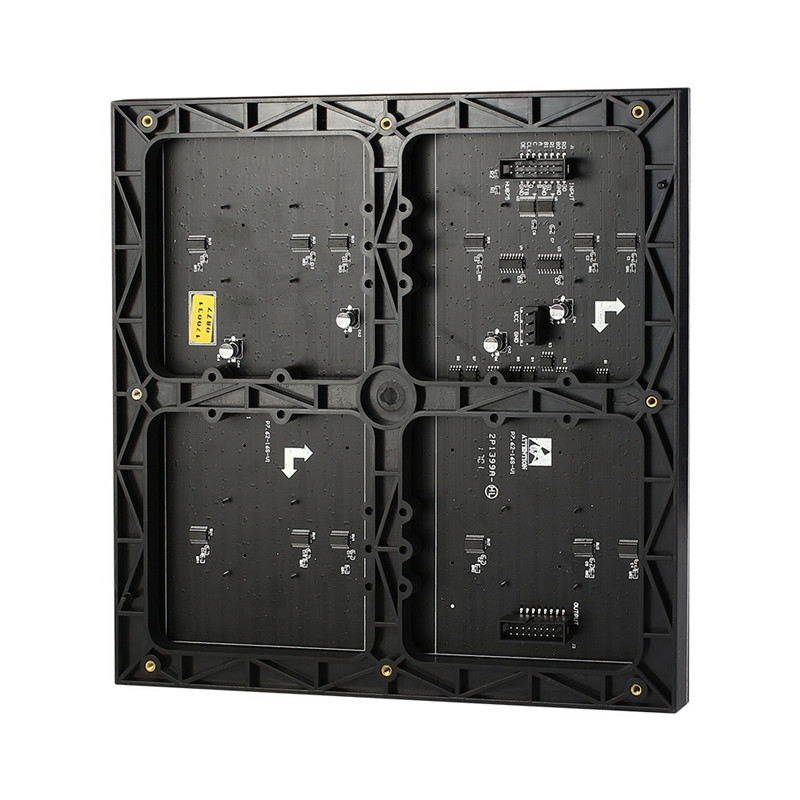

LED Display Module Specification
|
Pixel
|
Pixel Pitch
|
6 mm
|
|
Pixel Configure
|
1R1G1B SMD 3IN1
|
|
Pixel Density
|
27,777 Pixel/m²
|
|
LED Lamp
|
LED Type
|
SMD 3528
|
|
LED Lamp
|
Nation Star /King light
|
|
Chip Brand
|
EPISTAR
|
|
Wavelength & Brightness
|
Red:620-625nm;174-230mcd
Green:520-525nm;680-900mcd
Blue:470-475nm;130-160mcd
|
|
Module
|
Module Dimension
|
192 mm(W)x192 mm(H)
|
|
Module Resolution
|
32 Pixel * 32 Pixel
|
|
Scanning Method
|
1/16 S
|
|
Drive IC
|
5020 /5124 /5153 / 2037 /2038
/2038S/2053
|
|
Refresh Rate
|
>1920HZ
|
|
Viewing Angle
|
Horizontal : 140 ° Vertical: 140 °
|
|
Brightness
|
1300-1800 cd/m²
|
|
Best Viewing Distance
|
6-50 m
|
|
LED Life
|
100,000 Hours
|
|
Maximum Power
|
600w/m²
|
|
Average Power
|
300w/m²
|
|
Input Voltage
|
220V/110V ±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|
Protection Grade
|
IP 43
|
|
LED Module Weight
|
0.3 kg/piece
|
