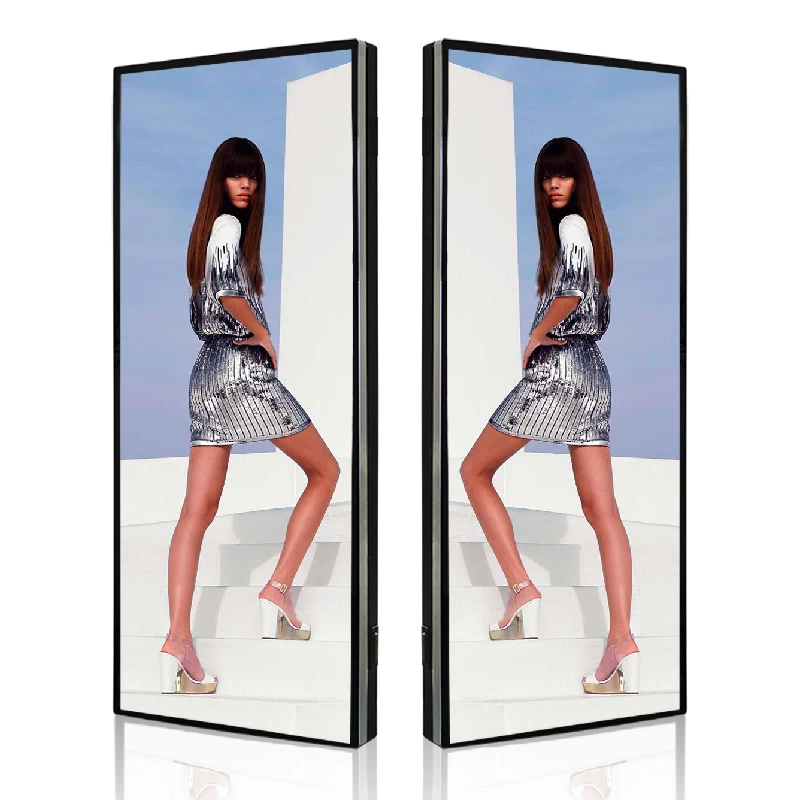

GPS Snyc Player IP65 High Waterproof P6 Outdoor LED Screen Advertising Player
P6 led lamp post screen is for outdoor usage, it's brightness is about 5000cd/㎡, could up to 7000cd/㎡ with high quality led lamp and IC. It will adjust the brightness automatically according to the outside environment.
With waterproof IP65 design, it could use in different weather, especially for outdoor application.
Working temperature: -20℃ - +60℃, storage temperature:-40℃ - +80℃, could use in many countries.
SPECS
Pixel Pitch
|
6mm
|
LED Package
|
SMD3535
|
Pixel Density
|
15,625 dots/㎡
|
Color Configuration
|
1R1G1B
|
Brightness
|
Up to 5500cd/㎡ @ white color
|
Refresh Rate
|
Up to 1920Hz/s, could be adjusted
|
Gray Scale
|
16.7M color (Synchronized)
|
View Angle
|
H:140°, V:120°
|
Module Size
|
192x192mm
|
Cabinet Size
|
960x960mm, could be customized
|
Cabinet Material
|
Iron/Aluminum
|
Viewing Distance
|
6-100M
|
Drive Mode
|
1/8 scan
|
|
Power Supply
|
AC220V/110V/50 Hz, or manual switch
|
|
Lifespan
|
100,000 hours
|
|
Trouble Free Time
|
10,000 hours
|
|
Working Temperature
|
-20°C + 65°C
|
|
Environment Humidity
|
10% ~ 95%
|
Control System
|
Linsn/Nova
|
