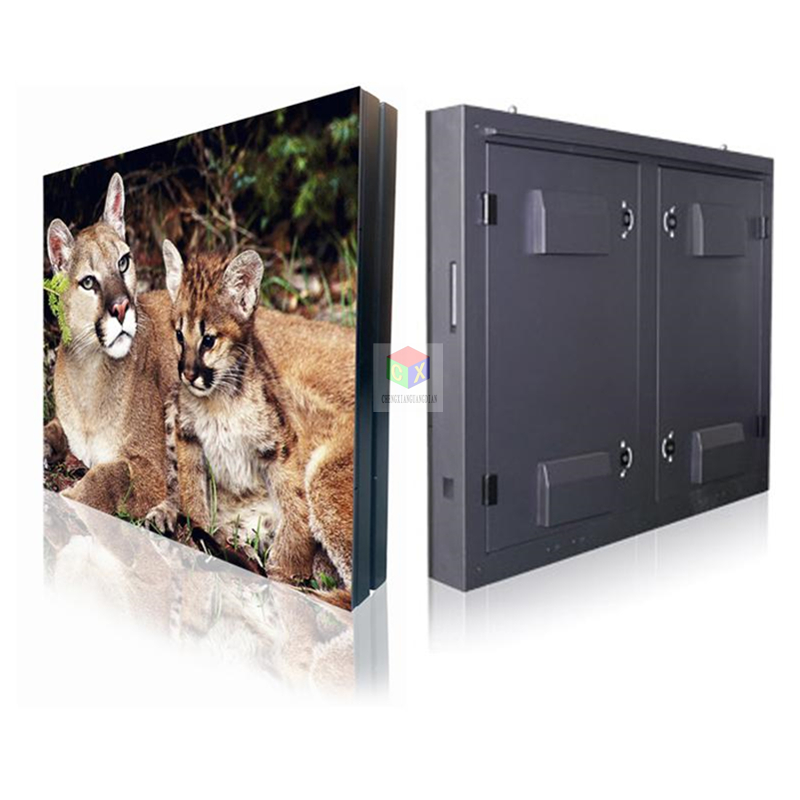

P6 outdoor led wall, LED matrix display module for advertising

Lifting single independent disassembly box.In conjunction with the special lifting lock on the box, the single person can disassemble the box independently. It is more simple and quick to use, and effectively reduces the labor cost of customer leasing activities;

Facebook Twitter Pinterest LinkedIn 分享
P6 Outdoor fullcolor led screen main parameters

Unit Module

Item Parameter
Model Number CN-P6-8S
Module size 192mm*192mm
Pixel pitch 6mm
Pixels Density 27777pcs/m2
Pixel configuration 1R1G1B
Package mode SMD3535
Pixel resolution 32dots(W)*32dots(H)
Max Power consumpion 30W
Module thickness 17mm
Weight 0.8KG
Drive type Constant drive
Scan mode 1/8scan
Port type HUB75
Brightness of white balance ≥5500cd/㎡

bracket

Size 192mm*192mm

LED

Unit Module

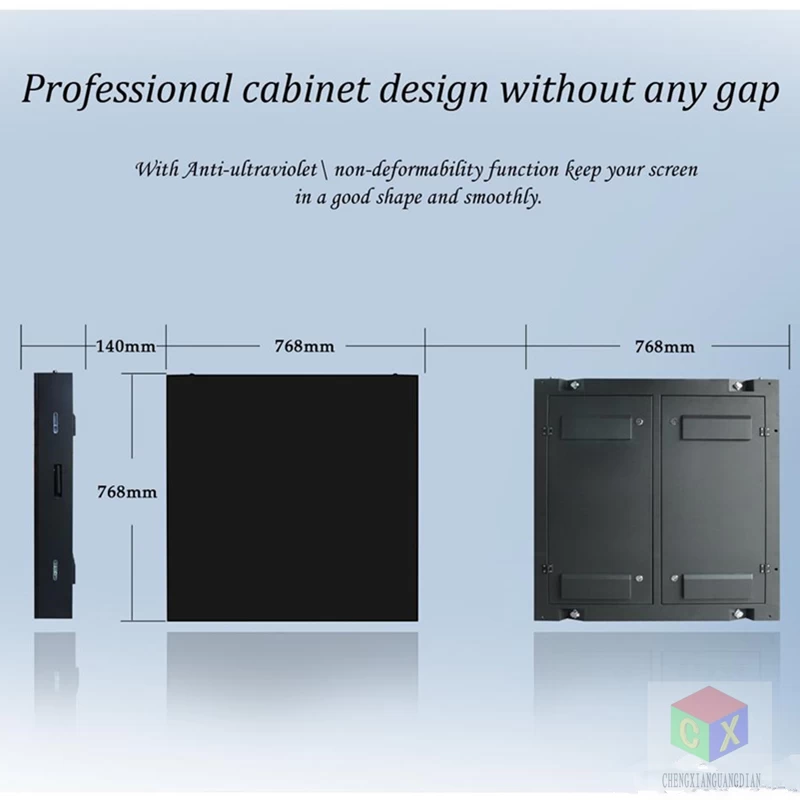

Dimension 768mm*768mm
Quanty of Module 16
Power supply 5V/60A*2 pcs
Thermal discharge fan 1pcs
Pixel per cabinet 128*128
Best viewing distance 6M～20M
Best viewing distance 140°(W) 120°(H)
Temperature storage:-35℃～+85℃ working:-20℃～+50℃
Opration humidity 10%-95%
Thickness 85mm

Power

Working voltage AC220V±10%
Average Power consumption 260W/㎡
Max.Power consumption ≤800W/㎡
Current

≤20mA(single LED)

Control system

CPU Pentium4 or above
Operation system WIN98/2000/NT/XP
Control method Synchronization

Main technical

parameter

Driving device Constant currentdriver
Refresh frequency ≥400HZ
Grey scale/colors 256levels of each color(RGB)/16.7M colors
MTBF ≥9000hours
Power switch Automatic switch
Display Mode 800*600/1024*768
