P6 SMD Outdoor Fixed Video Display High Quality Enterprise Project Advertising

P6 has good image quality with the good quality of the LED, and full of durability.Could provide good showing to complement and enhance the environment.

  • Weight/cabinet55kg
  • Operation temperature-20 ℃~ +65 ℃
  • Working voltage110/220V
  • LED chipSMD3535
  • ApplicationPlaza/Hotel/Public service places/Building/Street
  • CertficationCE, RoHS
  • Brightnessup to 5000cd/㎡
  • Module size192*192mm
Facebook Twitter Pinterest LinkedIn 分享

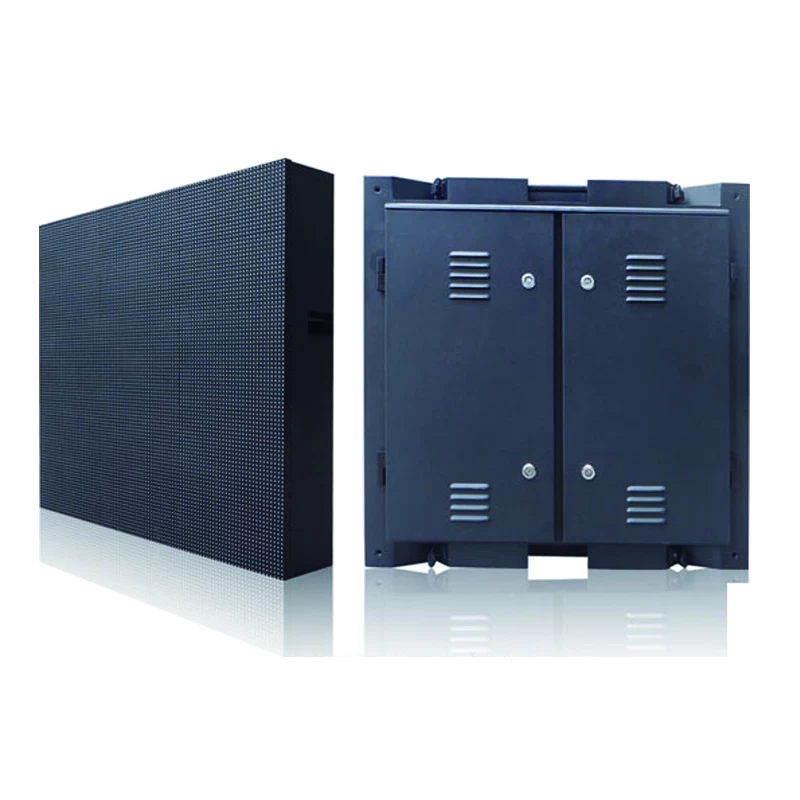

SMD P6 outdoor video display for enterprise project advertising

Features of P6 outdoor full color led display:
1. Super thin and light weight (thickness : 80mm, weight: 65kg)
2. Multi-functional cabinet, just change the module to upgrade the product with lower cost.
3. Could provide the suitable cabinet size to meet the customer’s needs.
4. Different kinds of installation way according to your needs and using places.
outdoor video displayoutdoor full color led display
SPECS



          Pixel Pitch

6mm

          LED Package

SMD3535

          Pixel Density

27,777 dots/㎡

          Color Configuration

1R1G1B

          Brightness

Up to 5000cd/㎡ @ white color

          Refresh Rate

Up to 1920Hz/s, could be adjusted

          Gray Scale

16.7M color (Synchronized)

          View Angle

H:140°, V:120°

          Module Size

192x192mm

          Cabinet Size

960x960mm

          Cabinet Material

Iron/Aluminum

          Viewing Distance

6-100M

          Drive Mode

1/8 scan

          Power Supply

AC220V/110V/50 Hz, or manual switch

          Lifespan

100,000 hours

          Trouble Free Time

10,000 hours

          Working Temperature

-20°C + 65°C

          Environment Humidity

10% ~ 95%

          Control System

Linsn/Nova
