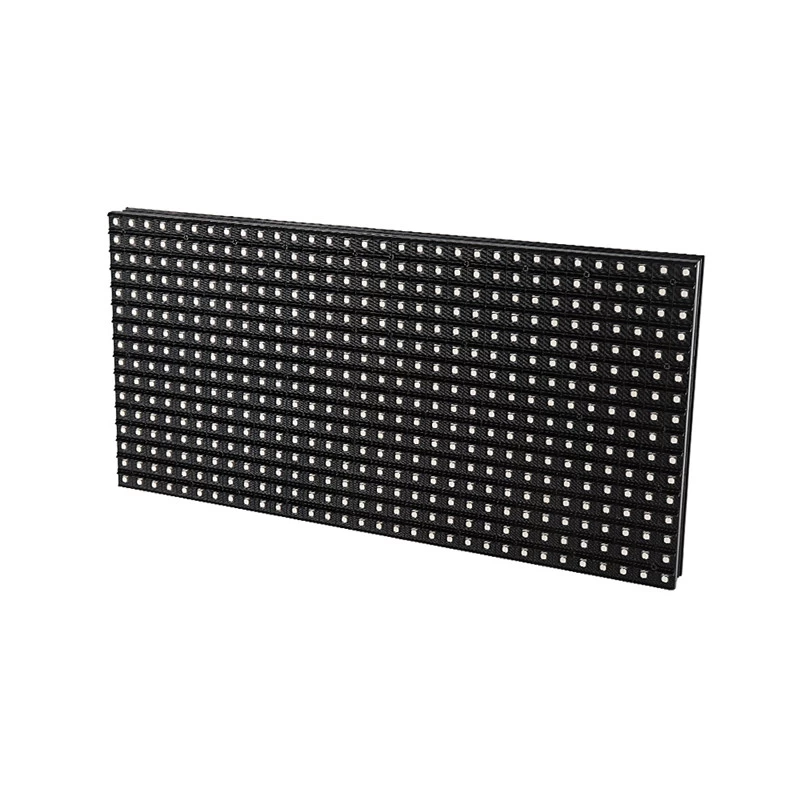

Outdoor P8 LED Display Module Specification
|
Pixel |
Pixel Pitch |
8 mm |
|
Pixel Configure |
1R1G1B SMD 3IN1 |
|
|
Pixel Density |
15,625 Pixel/m² |
|
|
LED Lamp |
LED Type |
SMD 3535 |
|
LED Lamp |
Nation Star /King light |
|
|
Chip Brand |
EPISTAR |
|
|
Wavelength & Brightness |
Red:620-625nm;174-230mcd Green:520-525nm;680-900mcd Blue:470-475nm;130-160mcd |
|
|
Module |
Module Dimension |
256 mm(Width)x128 mm(Height) |
|
Module Resolution |
32 Pixel * 16 Pixel |
|
|
Scanning Method |
1/4 S |
|
|
Drive IC |
5020 /5124 /5153 / 2037 /2038 /2038S/2053 |
|
|
Refresh Rate |
>1920HZ |
|
|
Viewing Angle |
Horizontal : 140 ° Vertical: 140 ° |
|
|
Brightness |
>5500cd/m² |
|
|
Best Viewing Distance |
8-100 m |
|
|
LED Life |
100,000Hours |
|
|
Maximum Power |
800w/m² |
|
|
Average Power |
400w/m² |
|
|
Input Voltage |
220V/110V ±10% |
|
|
Operation Environment |
Temperature: -20°C~60°C; Humidity: 10%~95% |
|
|
Protection Grade |
IP 65 |
|
|
LED Module Weight |
0.35 kg/piece |
