PA Nylon Pipe Tube Making Machine
1.The whole equipment configuration
mono-screw lining extrusion system ,cooling device ,haul-off ,braiding machine ,mono-screw outer extrusion system ,cooling device, automatic stacking system
2.Achieving fast extruding and winding uniform reactive
3.Can configure corresponding mould can also manufacture various specifications of soft special -shaped steel tubes.
Quick details:
Plastic Processed:
PA
|
Screw Design:
Single-screw
|
Voltage:
380V 50HZ 3Phase(Customized)
|
Dimension(L*W*H):
12mx1.5mx1.8m
|
Weight:
3T
|
High capacity:
high stable
|
Automatic Grade:
Automatic
|
Power(W):
15KW
|
Supply Ability: 10 Set/Sets per Month Packaging Details: wooden package
System configuration of the production line:
1. 1 set of Automatic loader
2. 1 set of Hopper dryer

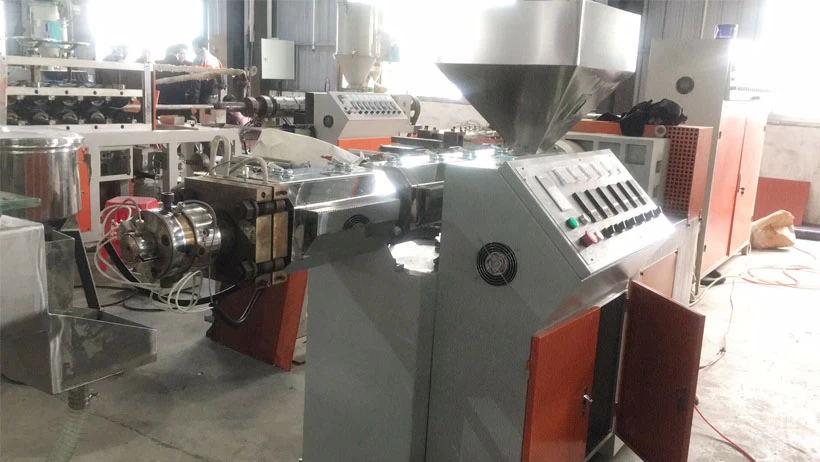

3. 1 set of Single-Screw Extruder
4. 1set of Mould
5. 1 set of Vacuum & Spraying Cooling Tank

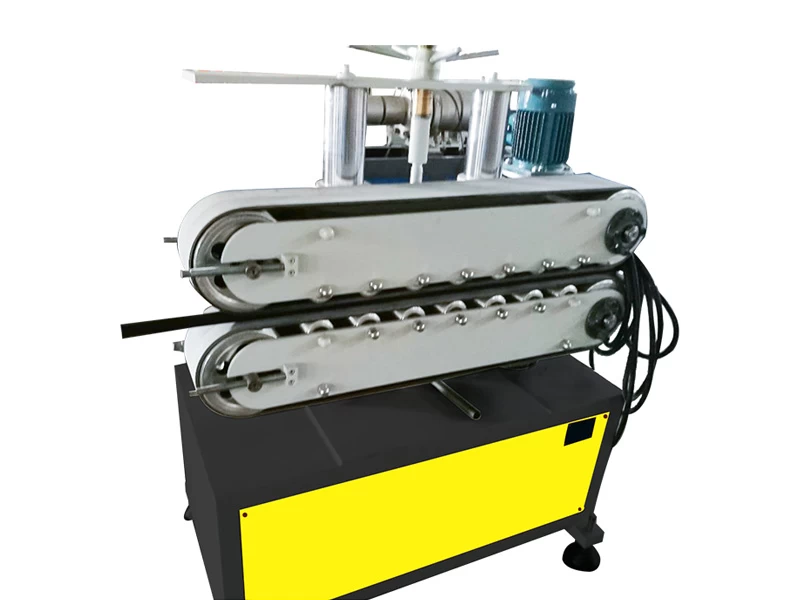

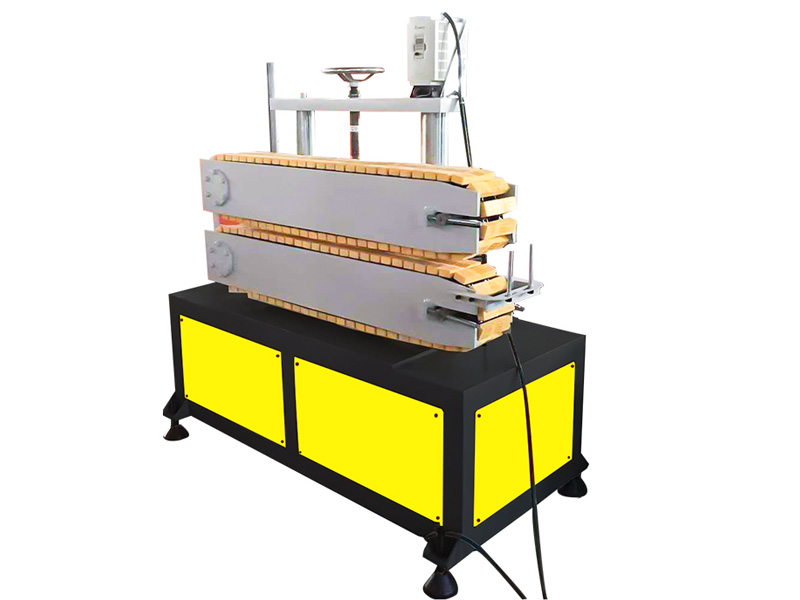

6. 1 set of Hauling off Machine

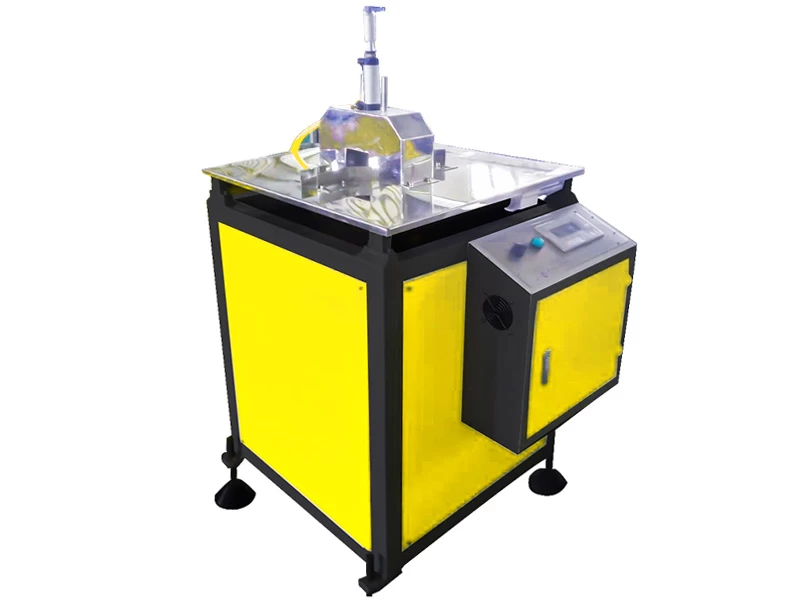

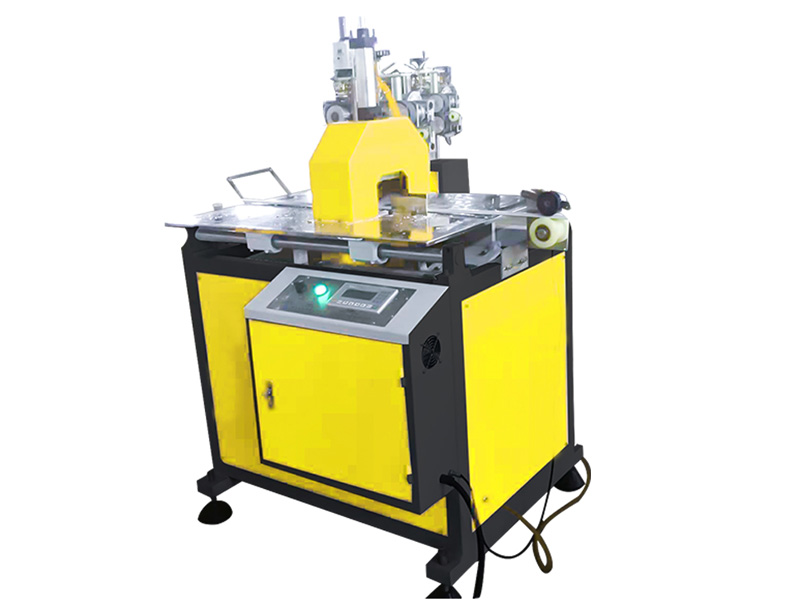

7. 1 set of Pipe Cutting Machine
8. 1 set of Pipe Stacker
Pipe extrusion line
The process flow of PP pipe production is as following:
Loader → Dryer → Single-screw Extruder→ Mould→ Vacuum &Spraying Cooling Tank →Hauling-off → Cutter → Pipe stacker

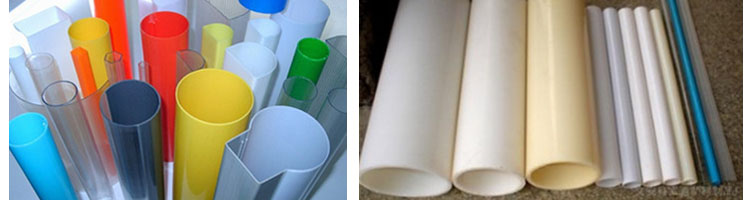

Product details:
Application:
Forming machine
Corrugated pipe forming machine
Plastic corrugated pipe forming machine is domestic initiative,suitable for all kinds of plastic products factory producing all kinds of wire,double wall corrugated pipe,corrugated cable threading pipe,decorative lamps and lanterns,washing machine water,hotel building,etc. applicable material with polyethylene,polyethylene,polypropylene and other thermoplastic vinyl record material.
If you are interested in our Pipe Making Machine,Contact now! Tell us the details of your needing.
