Standards
GB/T 15171-1994、ASTM D3078-2002（2013）
Features
LCD display test data.
Built-in printer can print report with date.
Compressed air as source of power, program controlled to generate vacuum.
Wholly automatic, auto vacuum and keep for set time at set pressure, auto stop and return.
High speed, high precision.
Can manually pause and stop.
Specifications
|
Vacuum degree
|
0~-95Kpa
|
|
Vacuum precision
|
±1%(indication error)
|
|
Vacuum keeping time
|
0.1s~60min
|
|
Compressed air pressure
|
0.4~0.6 Mpa(4~6 kgf/cm2)
|
|
Compressed air consumption
|
20 L/min
|
|
Vacuum chamber size
|
Φ270mm × 270mm
|
|
Instrument size
|
Instrument size:580mm × 345mm × 440mm
Vacuum tank:Ø300 × 300mm（samll）
Ø450 × 350mm(medium)
|
|
Net weight
|
12 kg
|
|
Working temperature
|
10~40℃
|
|
Vacuum degree
|
0~ -95kPa
|
|
Power supply
|
AC 220V 50Hz
|
Configuration

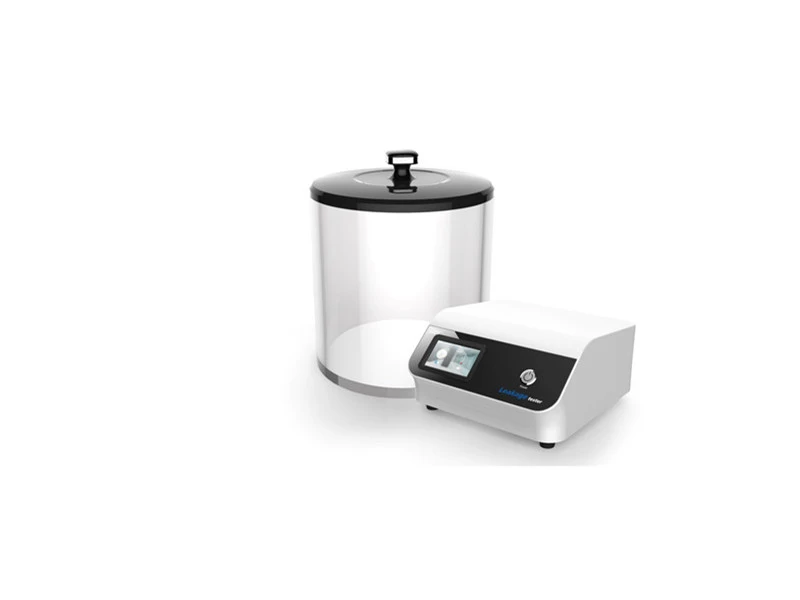

Main machine body, power cable, vacuum barrel
User provide: gas source
