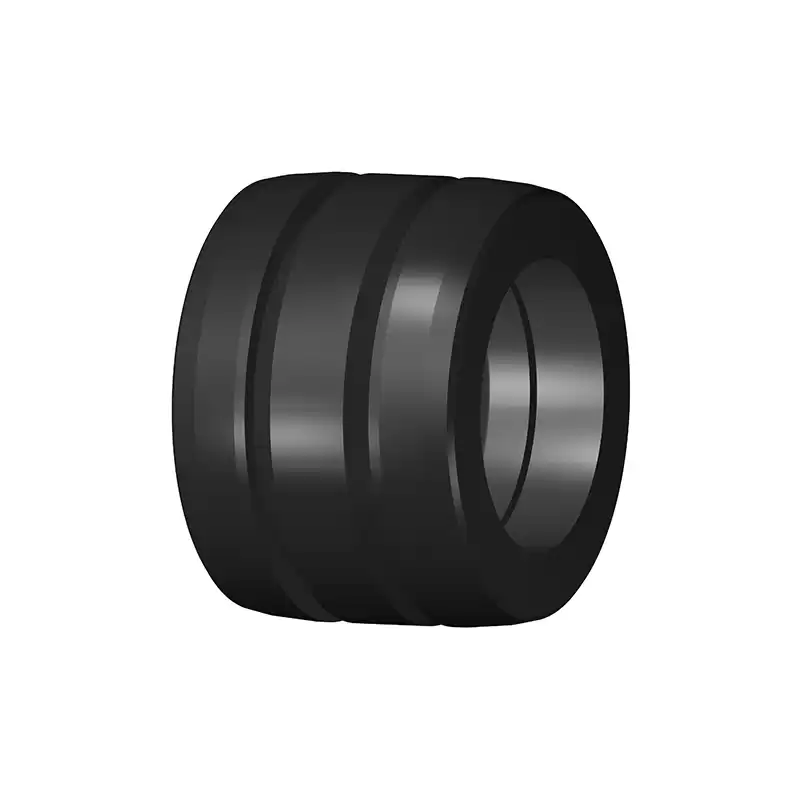

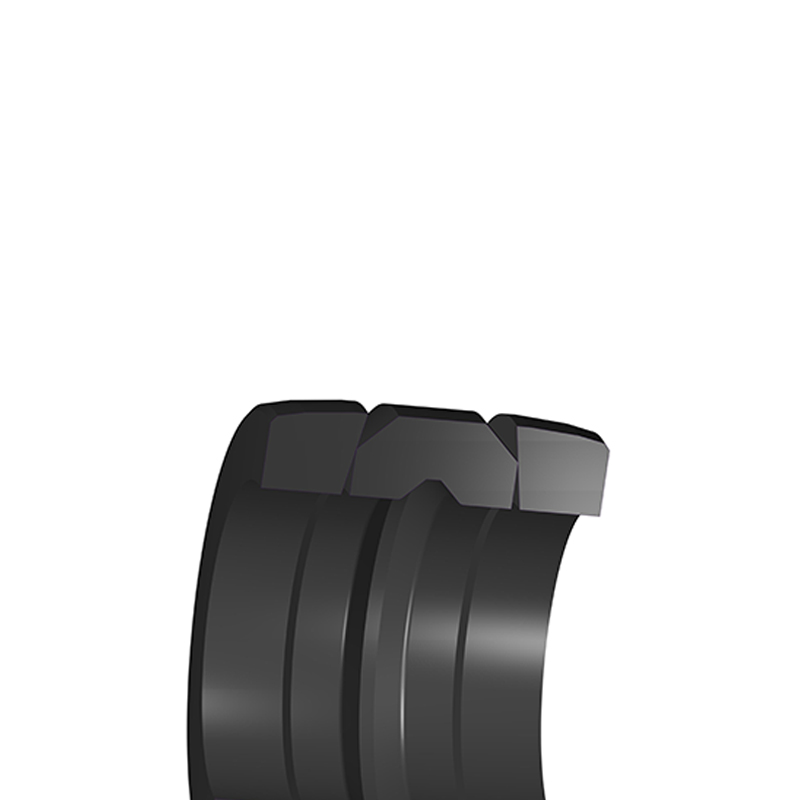

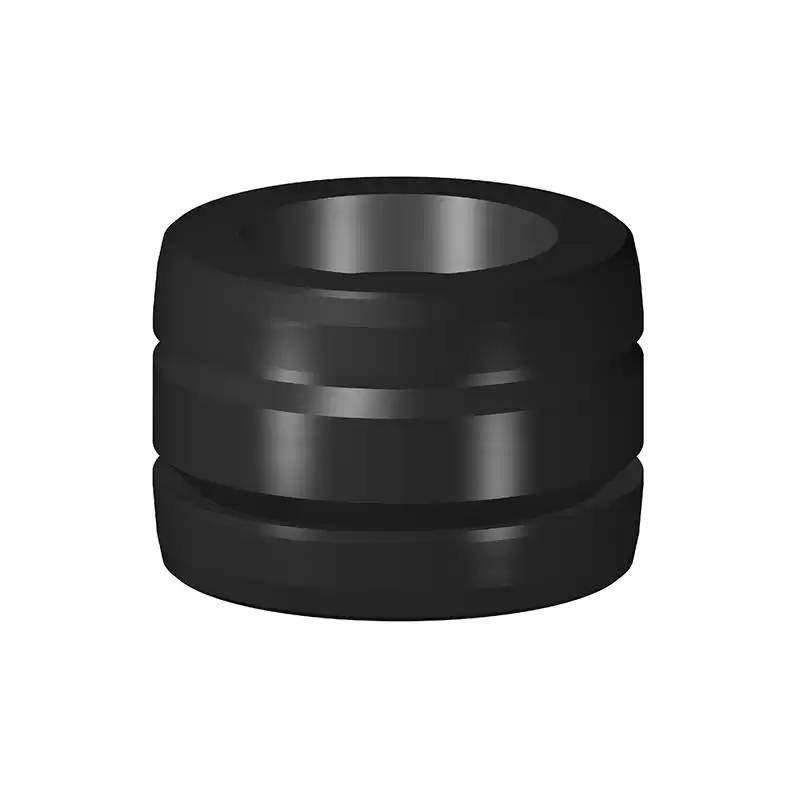

Packer element for downhole application
JST's Packer elements are flexible elastomeric components that are used to seal between the outside diameter of the production tubing and the casing, liner or wellbore.
Packer element are compatible with a variety of completion tools. High expansion and extrusion resistance. Broad temperature range capability including high pressure, high temperature.
Packer elements are used between sections of oil and gas production tubing to prevent fluids and pressure from leaking through the joints. This protects the casing, production tubing, liner and wellbore wall above and below the producing zone. Packer elements are designed for operating in corrosive or harsh conditions and manufactured from elastomers compatible with the media that needs to be sealed.
The packer element material could be HNBR, NBR, aflas ect.
|
Advantages:
1. Compatible with a variety of
completion tools
2. High expansion and extrusion resistance
3. Broad temperature range capability including high pressure, high temperature
Size:
5”， 7", 9"
|
Working Conditions
|
Temperature range
|
Pressure
|
Medium
|
≤250°F
|
≤5000PSI
|
oil
|
