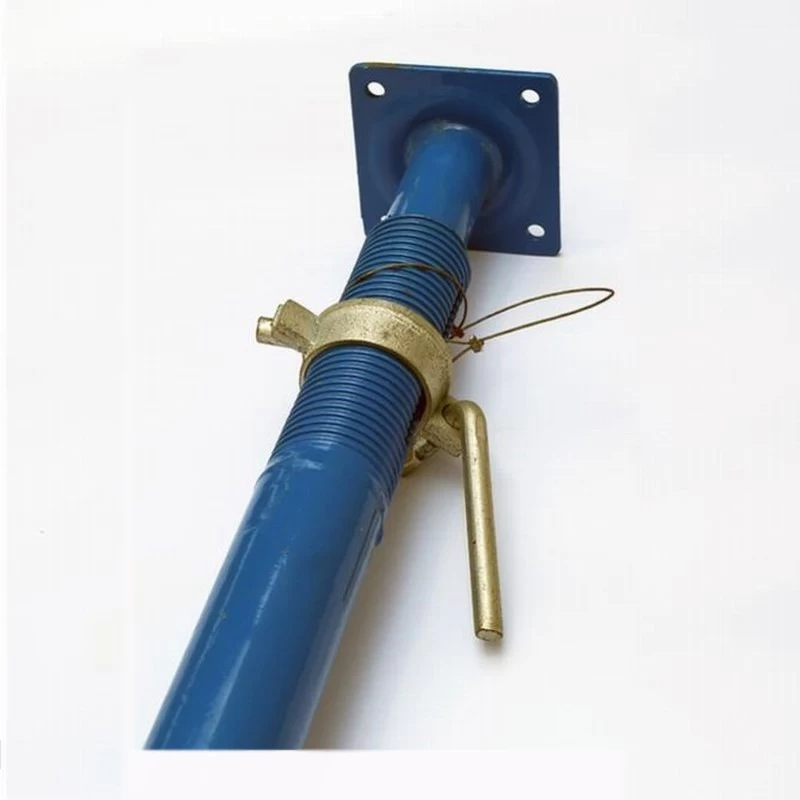

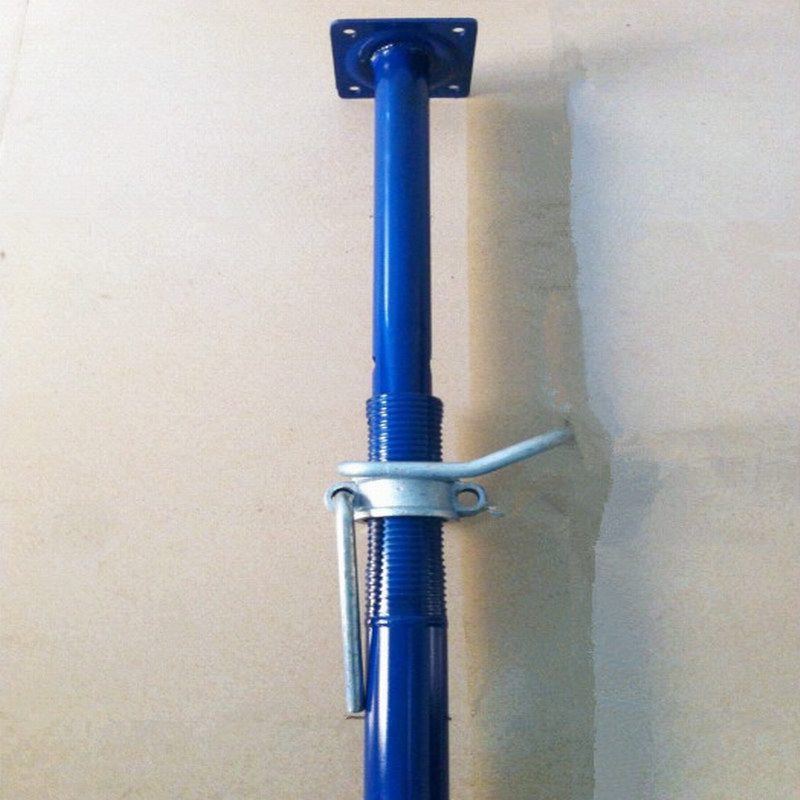

Open Thread Type of Shoring Prop is made by O.D. 48mm Inner Tube and O.D. 60mm Outer Tube, Thread Tube with slot, Casting Prop Nut, Straight Pin or G Pins, Prop Base Plate and Top Plate (Top U Head / Fork Head), uses as vertical support for concrete formwork system of slab formwork, roof formwork, table formwork, wall formwork , beam formwork and construction scaffolding buildings.
Product Details:
Medium Duty Steel Prop / Shoring Prop / Post Shore (Open thread), t=2.5mm
|
Code
|
Adjustment (Metric Size)
|
Adjustment (Imperial Size)
|
Specification
|
Weight(kg)
|
Weight(lbs)
|
|
MDPR.18.DO2.5
|
1100-1800mm
|
3'7"--5'11"
|
Outer pipe OD60x2.5mm, Inner pipe OD48x2.5mm, End plate120x120x5mm, Open thread.
|
8.68
|
19.14
|
|
MDPR.29.DO2.5
|
1600-2900mm
|
5'3"--9'6"
|
12.21
|
26.93
|
|
MDPR.32.DO2.5
|
1800-3200mm
|
5'11"--10'6"
|
13.13
|
28.95
|
|
MDPR.36.DO2.5
|
2000-3600mm
|
6'7"--11'10"
|
14.40
|
31.75
|
|
MDPR.40.DO2.5
|
2200-4000mm
|
7'3"--13'2"
|
15.67
|
34.55
|
|
MDPR.45.DO2.5
|
2500-4500mm
|
8'2--14'9"
|
17.22
|
37.97
|
|
MDPR.50.DO2.5
|
2900-5000mm
|
9'6"--16'5"
|
18.69
|
41.22
|
Medium Duty Steel Prop / Shoring Prop / Post Shore (Open thread), t=2.2mm
|
Code
|
Adjustment (Metric Size)
|
Adjustment (Imperial Size)
|
Specification
|
Weight(kg)
|
Weight(lbs)
|
|
MDPR.18.DO2.2
|
1100-1800mm
|
3'7"--5'11"
|
Outer pipe OD60x2.2mm, Inner pipe OD48x2.2mm, End plate120x120x5mm, Open thread.
|
8.02
|
17.69
|
|
MDPR.29.DO2.2
|
1600-2900mm
|
5'3"--9'6"
|
11.15
|
24.58
|
|
MDPR.32.DO2.2
|
1800-3200mm
|
5'11"--10'6"
|
11.96
|
26.36
|
|
MDPR.36.DO2.2
|
2000-3600mm
|
6'7"--11'10"
|
13.08
|
28.84
|
|
MDPR.40.DO2.2
|
2200-4000mm
|
7'3"--13'2"
|
14.21
|
31.32
|
|
MDPR.45.DO2.2
|
2500-4500mm
|
8'2--14'9"
|
15.58
|
34.35
|
|
MDPR.50.DO2.2
|
2900-5000mm
|
9'6"--16'5"
|
16.89
|
37.23
|
Medium Duty Steel Prop / Shoring Prop / Post Shore (Open thread), t=2.0mm
|
Code
|
Adjustment (Metric Size)
|
Adjustment (Imperial Size)
|
Specification
|
Weight(kg)
|
Weight(lbs)
|
|
MDPR.18.DO2.0
|
1100-1800mm
|
3'7"--5'11"
|
Outer pipe OD60x2.0mm, Inner pipe OD48x2.0mm, End plate120x120x5mm, Open thread.
|
7.13
|
15.72
|
|
MDPR.29.DO2.0
|
1600-2900mm
|
5'3"--9'6"
|
9.98
|
22.00
|
|
MDPR.32.DO2.0
|
1800-3200mm
|
5'11"--10'6"
|
10.72
|
23.63
|
|
MDPR.36.DO2.0
|
2000-3600mm
|
6'7"--11'10"
|
11.74
|
25.90
|
|
MDPR.40.DO2.0
|
2200-4000mm
|
7'3"--13'2"
|
12.77
|
28.16
|
|
MDPR.45.DO2.0
|
2500-4500mm
|
8'2--14'9"
|
14.02
|
30.92
|
|
MDPR.50.DO2.0
|
2900-5000mm
|
9'6"--16'5"
|
15.22
|
33.55
|
