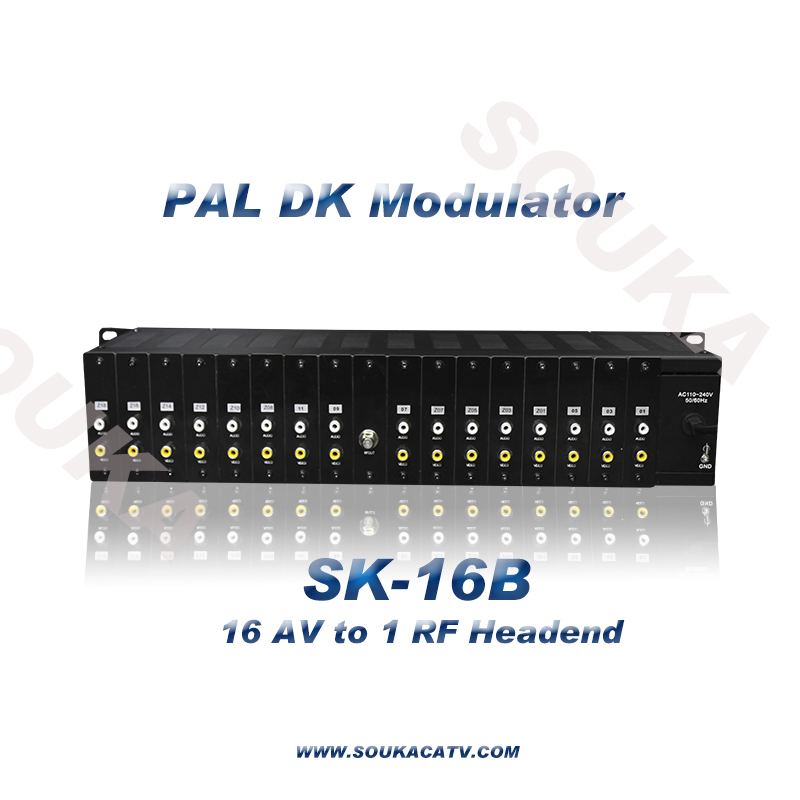

SK-16B

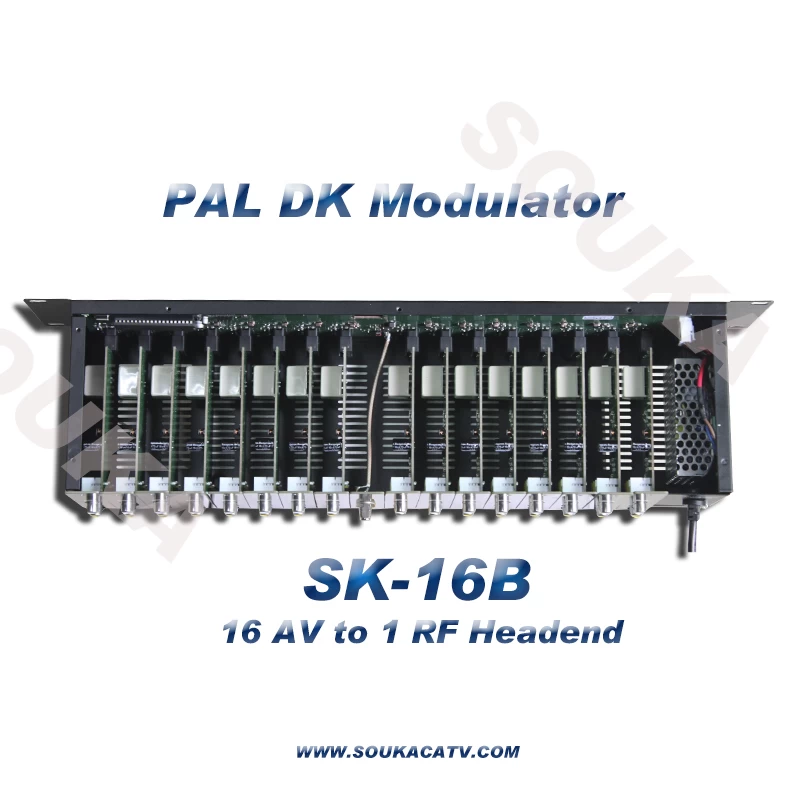

The SK-16B is desinged for PAL DK market only. It contains 16 pcs mini fixed skip channel modulator cards and with combiner output. It is extremely cost-saving headend for small facility, such as, hotel, hospital, ect.. However, due to its design, the subscriber can't change the modulator's slot number.
Features:
1. 220V meanwell power supply ensures excellent performance
2. 40dBmV chassis output level, no need extra combiner
3. Excellent value for small hotel using

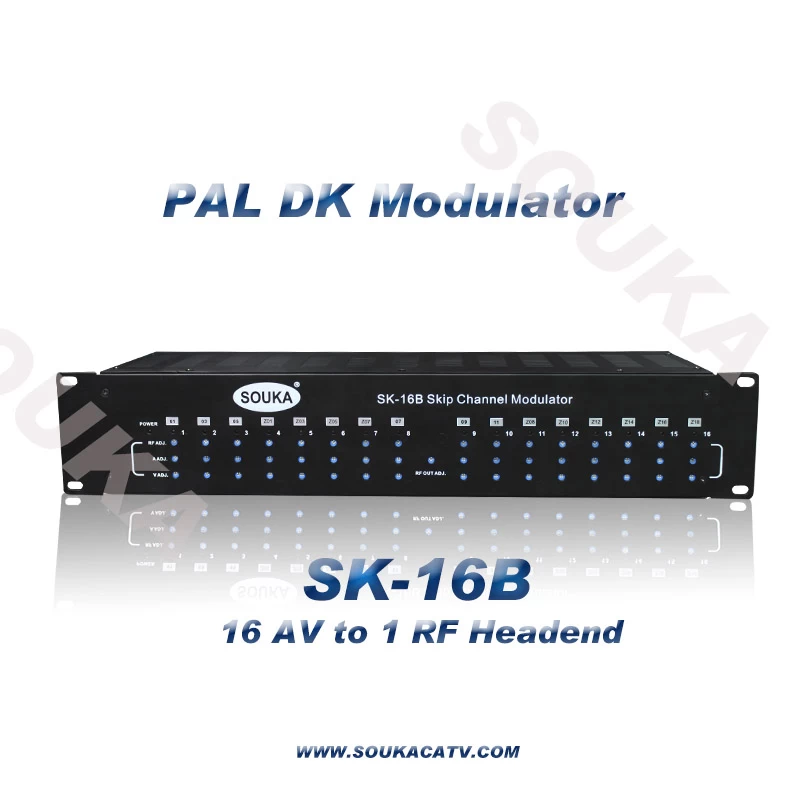

4. Front panel access controls enable easy setup
|
Chasssis
Part
|
|
Frequency range :
|
47~860MHz
|
|
Output level :
|
≧40dBmV
|
|
C/N in-band :
|
60dB
|
|
RF output connector :
|
75Ω F-Female
|
|
C/N out-band :
|
62dB
|
|
Voltage input :
|
AC 240V input chassis
|
|

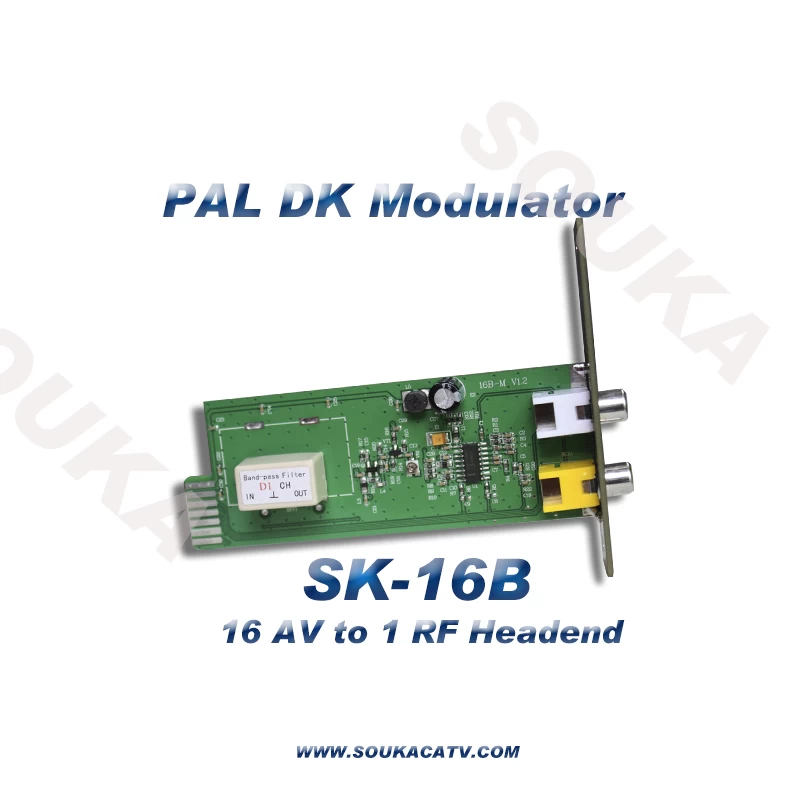

Modulator
Part
|
|
Output Frequency :
|
47-860MHz
|
|
Output Level :
|
103dBµV(Adj.)
|
|
A/V Ratio :
|
-11 to -18dB(Adj.)
|
|
Frequency Stability :
|
±5KHz
|
|
Video :
|
RCA Yellow
|
|
Video C/N :
|
50dB
|
|
Hum/Noise :
|
-50dB
|
|
Modulation Range :
|
0~90%
|
|
Audio :
|
RCA White
|
|
Input Level :
|
1Vp-p(25KHz Dev.)
|
