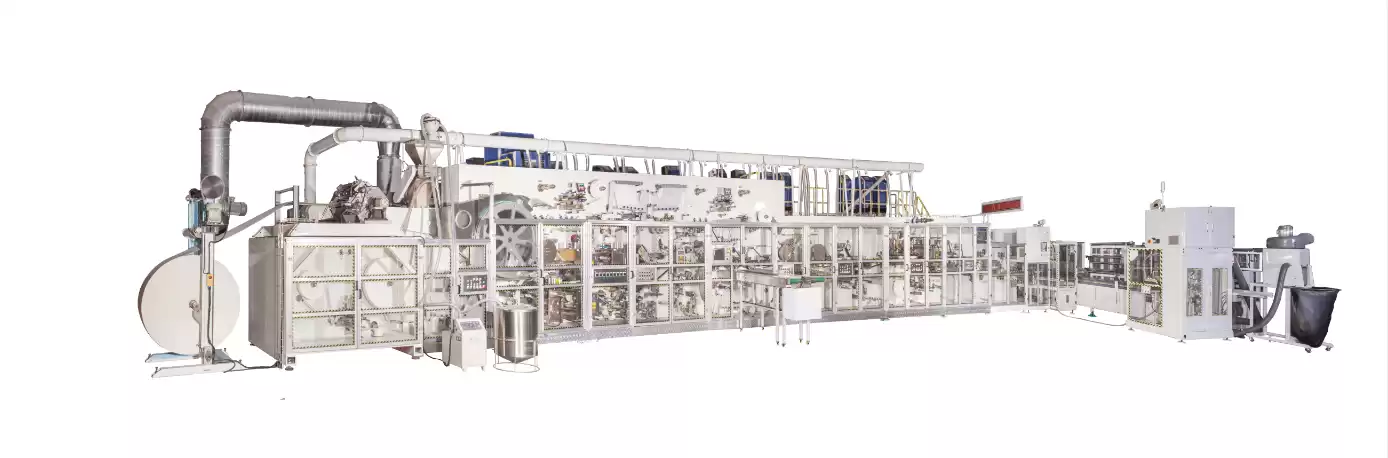

Main parameters
1、Overall size：33.1m ×4.3m ×5.5m（for reference only）
2、Machine size：25.3m ×2.2m ×2.4m（based on the product provided by client）
3、Design speed：2000pcs per minute
4、Stable work speed：1200-1800pcs per minute
5、Rejection rate: ≤2%（excluding scrap caused by hot melt，materials splicing or joint）
6、Power source：380V，50/60HZ（3phase，4lines+ground wire）
7、Machine capacity：290KW approximately
8、Air pressure：0.6-0.8 Mpa
9、Machine weight：52 Tons approximately
Configuration
1、Product structure: Flat（or textile edge） Top sheet，ADL（blue core，Tissue (or airlaid）.Cotton core（mix with SAP），Back sheet，Release paper，Pouch film，Easy tape.
2、Product size：155mm length，to be customized.
3、Program system:Servo driven，inteligent HMI touch screen man-machine interface.
4、Tension system；Tension control with buffer system，automatic web guiding system，to ensure materials stable working at ZERO speed splice.
5、Driven system:Servo drive，digital size change，ensure run synchronously at full process.
6、Safety system:Safety guard for operating side，emergency stop switch，security identifier，safety pull wire at driven side.
7、Auto Packing system:Auto stacker and packaging machine to be defined by customer need.
8、Web guiding system:Germany BST/USA FIFE.Customized function available

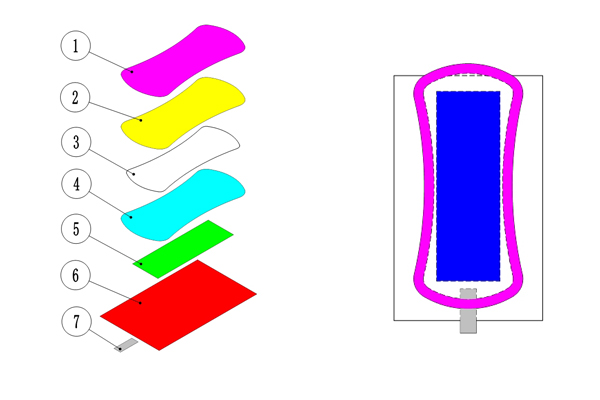

Product structure
|
1.our panty liner machine with Top sheet Non woven
|
|
2.Upper tissue
|
|
3.Cotton core(absorbent paper)
|
|
4.PE film back sheet
|
|
5.Back release paper
|
|
6.Pouch film
|
|
7.Easy tape
|
