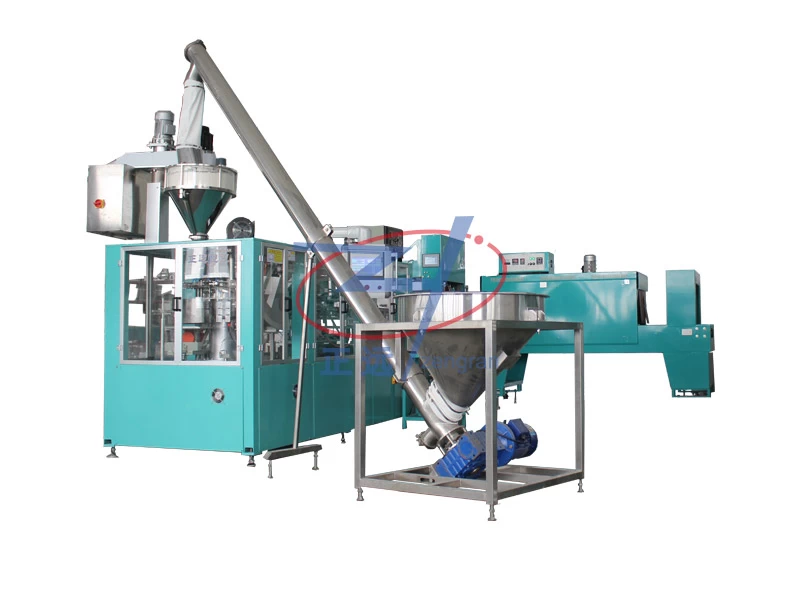

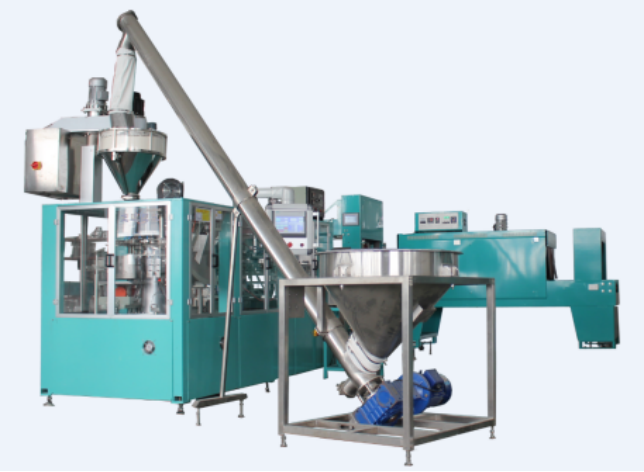

Paper bag packing machine line for flour, powder filling

This unit is developed for quantitative packaging of paper bags of small particles and various powdery materials. It can independently complete metering, filling, sealing, bar code identification, printing, labeling, coding, spraying and stacking. It is composed of quantitative filling machine, eight station rotating packaging machine, linear conveying, stacking, heat shrinkable packaging machine. With the advanced horizontal bag feeding method, the bag storage device can store more bags; the bag suction and delivery station are stable and reliable, the bag loading rate is high and the package material consumption is low; the bag is firmly sealed, all of these can improve the product grade.

No bag – no filling- no sealing, machine alarm

Bag opening miss- no filling-no sealing, machine alarm

Machine stop or alarm when the air pressure is abnormal

Error position display at the control panel

Control panel locate on the right side top of the machine

Outside of the machine and all the parts which touch production all made by stainless steel.

There are several safety doors made by aluminum Profile Frame.

Machine surface can be wash by water and brush by cloth

Capacity

Around 18 bags/min for one set of machine.
