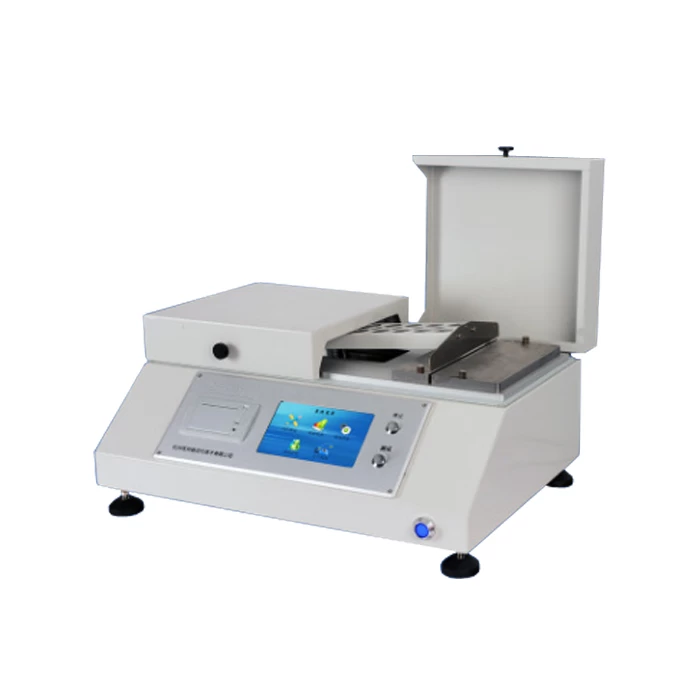

Paper Softness Tester GT-N56

Paper Softness Tester is a machine simulates the hand feeling of softness and according to relevant regulations of national standard GB8942 “measurement of paper softness”. It is mainly used for softness test for Sheet soft material like High-grade toilet paper, tobacco flakes, fiber fabrics etc.

Facebook Twitter Pinterest LinkedIn 分享

Paper Softness Tester GT-N56


Product Introduction

Application:

Paper Softness Tester is a machine simulates the hand feeling of softness which is designed referring to American Handle-o-Meter instrument principle and according to relevant regulations of national standard GB8942 “measurement of paper softness”. It is mainly used for softness test for Sheet soft material like High-grade toilet paper, tobacco flakes, fiber fabrics etc.



Standards:

GB/T8942, QB/T1060



Principle

It's designed referring to American Handle-o-Meter instrument principle and according to relevant regulations of national standard GB8942 “measurement of paper softness”.



Key Specifications



Model

GT-N56

Measuring range

(10~1000)mN

Test speed

1.2mm/s

Test time

15s

Resolution

1mN

Accuracy

±1%

Pressed depth of measuring head

8 +0.5 mm

Narrow width of sample platform

5mm,6.35mm,10mm,20mm

Parallelism error of sample platform slots

≤0.05mm

Power Supply

AC 220V±22V, 50Hz

Standard Accessories

Specialized calibration device

Calibration weight

Printing paper 3rolls

Standards

GB/T8942, QB/T1060



Applications Industry

All kinds of below materials can be tested on the Paper Softness Tester GT-N56
