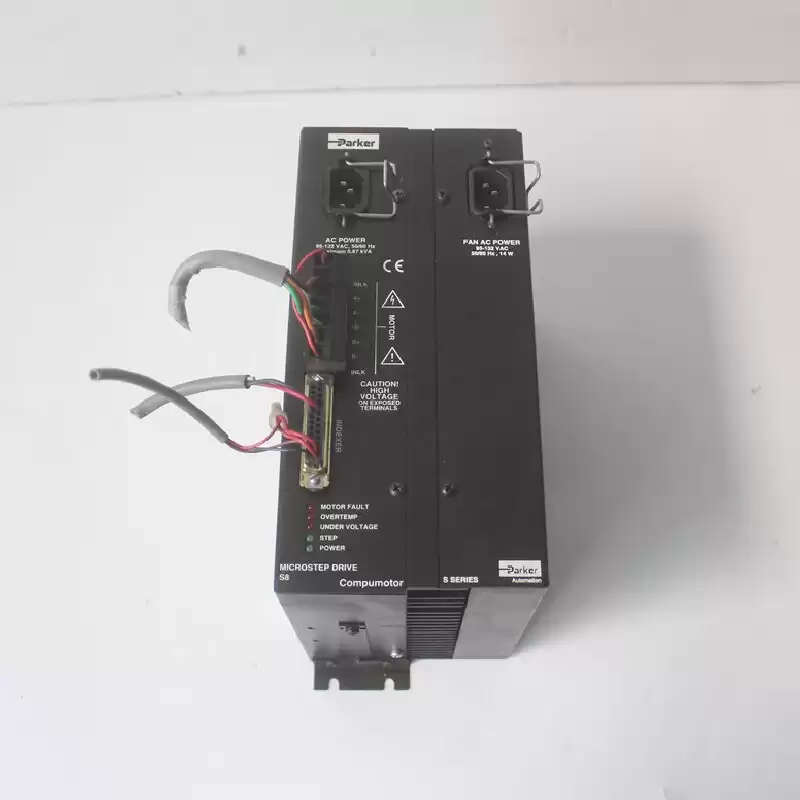

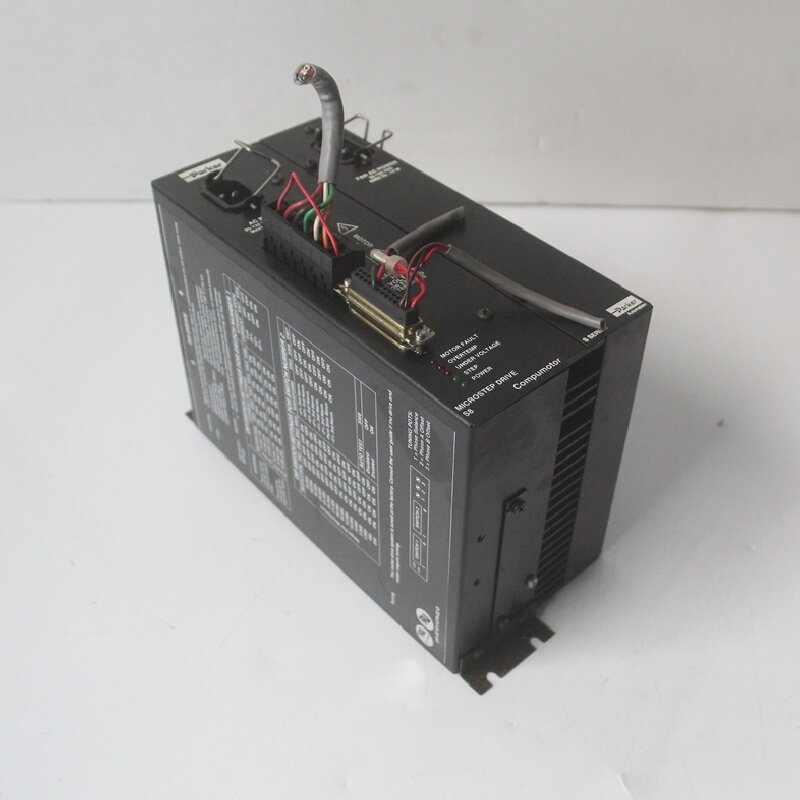

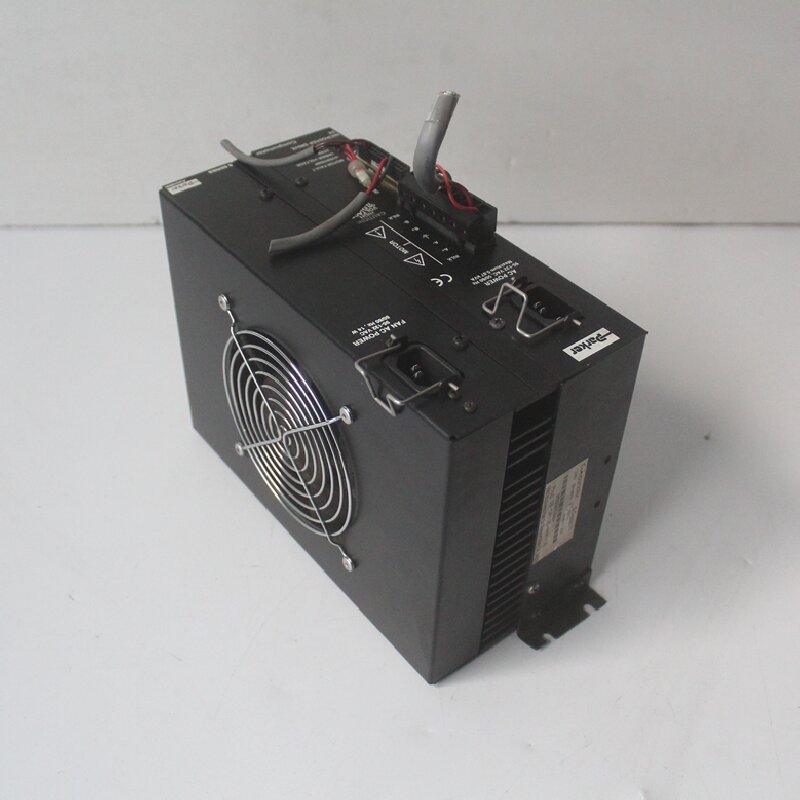

Product Details:
- The S Drive requires no external power supply. It uses 120VAC directly for its power inputs. Compumotor’s motors are two-phase hybrid motors (permanent magnet type).
- Four, six, or eight lead motors may be used, with the internal phases connected for parallel or series operation, provided the motor’s inductance does not drop below 2 mH. For best performance, maintain motor inductance from 5 mH - 50 mH, but motors with inductance ratings as low as 0.5 mH may be used. You can panel mount the S Drive in a minimum depth or width configuration by moving its mounting tabs.
The S Drive also provides the following features:
- Microprocessor controlled microstepping provides smooth operation over a wide range of speeds
- Short circuit protection for phase-to-phase and phase-to-ground short circuits
- Overtemperature and undervoltage protection
- Uses low-inductance motors for improved high-speed performance (23, 34, 42 frame size motors available with torques from 65 - 2,400 oz-in)
- Three state current control for reduced motor/drive heating
- LED status indicators: power, step, undervoltage, overtemperature (latched), motor fault (latched)
- Motor connector interlock to prevent connector damage
- Optically coupled step, direction, shutdown, and set zero phase inputs are compatible with all Compumotor indexers (25-pin D connector)
- A fault output to signal other equipment if a fault occurs
- High motor voltage (170VDC) operation for high-speed torque
- 90VAC - 132VAC, 50/60Hz power input
- 16 DIP switch selectable motor resolutions (200 - 50,800 steps/rev)
- Operates linear motor forcers
- 2 MHz step input
