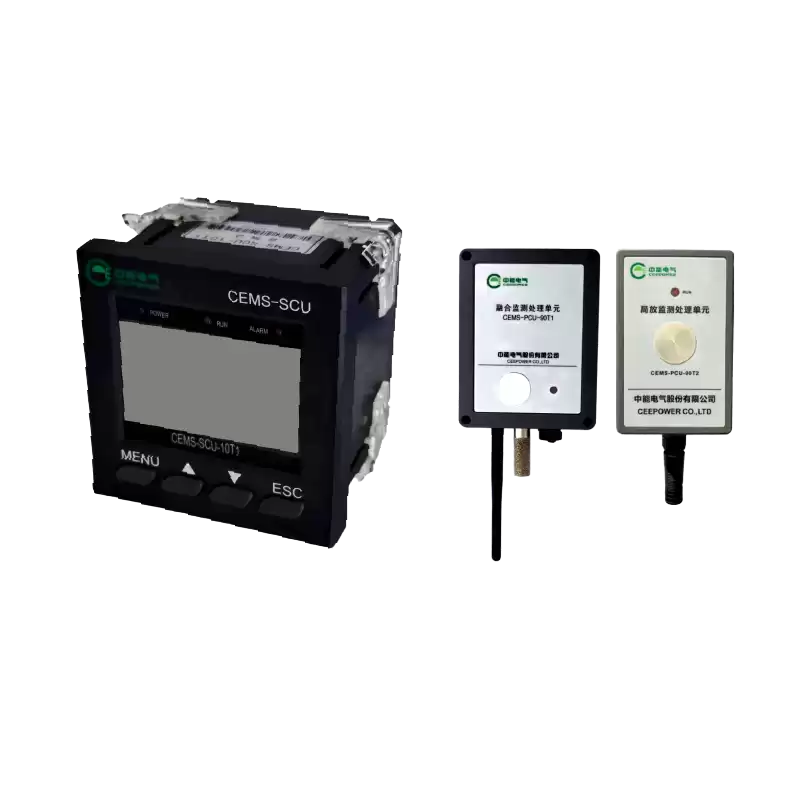

Partial Discharge Monitoring System CEMS-90 Series

The CEMS-90 Series Partial Discharge Monitoring System integrates Ultra High Frequency (UHF) and Acoustic Emission (AE) monitoring technologies to track multiple parameters within power grid equipment, including partial discharge and environmental conditions. The system is designed for precise measurements, easy installation, and minimal maintenance. It offers real-time alerts to prevent faults, improving the safety and stability of the electrical grid.

Facebook Twitter Pinterest LinkedIn 分享

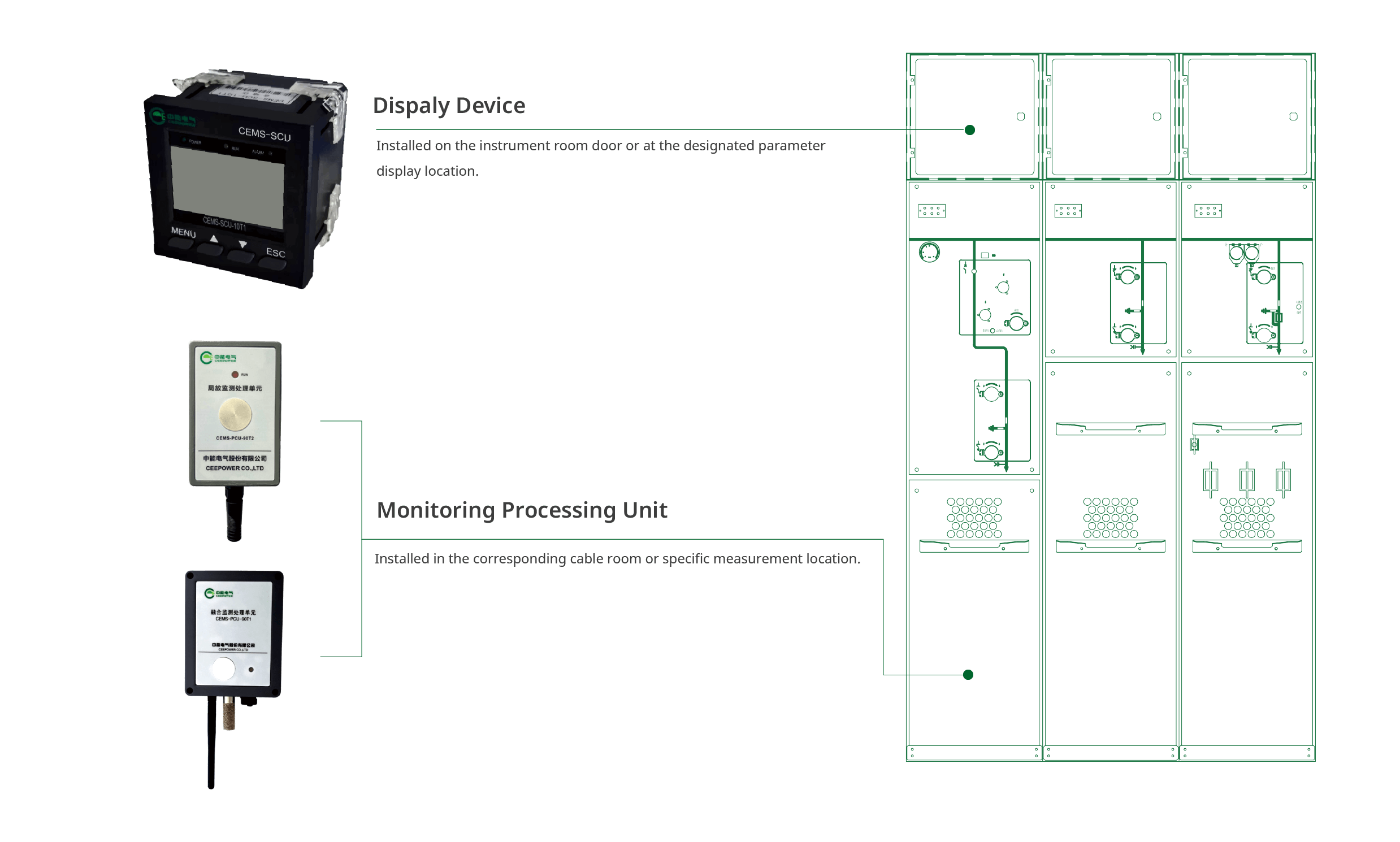

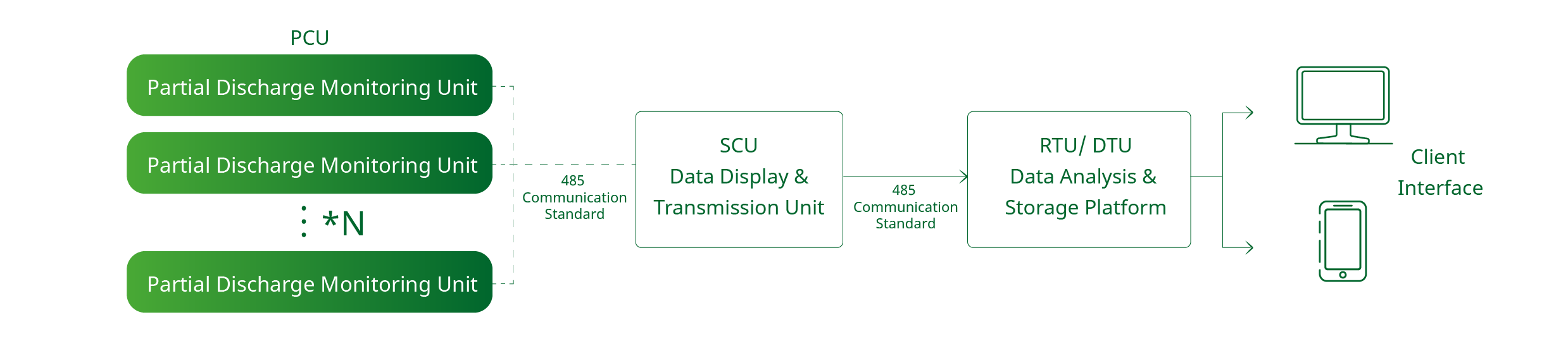

  • System Overview





















  • CEMS-90 Partial Discharge Monitoring System Features
  • # Multi-Technology Monitoring

    UHF and AE technologies for precise partial discharge and parameter tracking.
  • # Real-Time Alerts

    Instant notifications for faults when thresholds are exceeded.
  • # Comprehensive Data Analysis

    Monitors partial discharge, temperature, and environmental factors while providing health insights and predictive maintenance support.



  • # Seamless Integration

    Easily integrates with RTUs, DTUs, and other monitoring systems for efficient operations.
  • # App Monitoring

    View real-time data and manage alarms via the mobile app.
  • # Flexible Communication

    RS485 and MODBUS-RTU compatibility for easy system integration.













  • Specifications

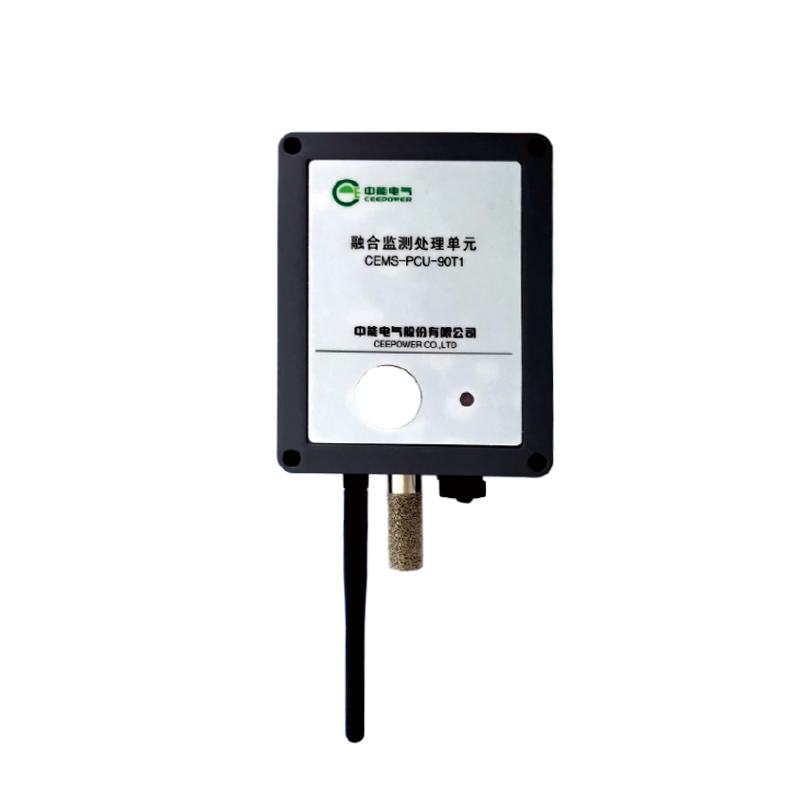

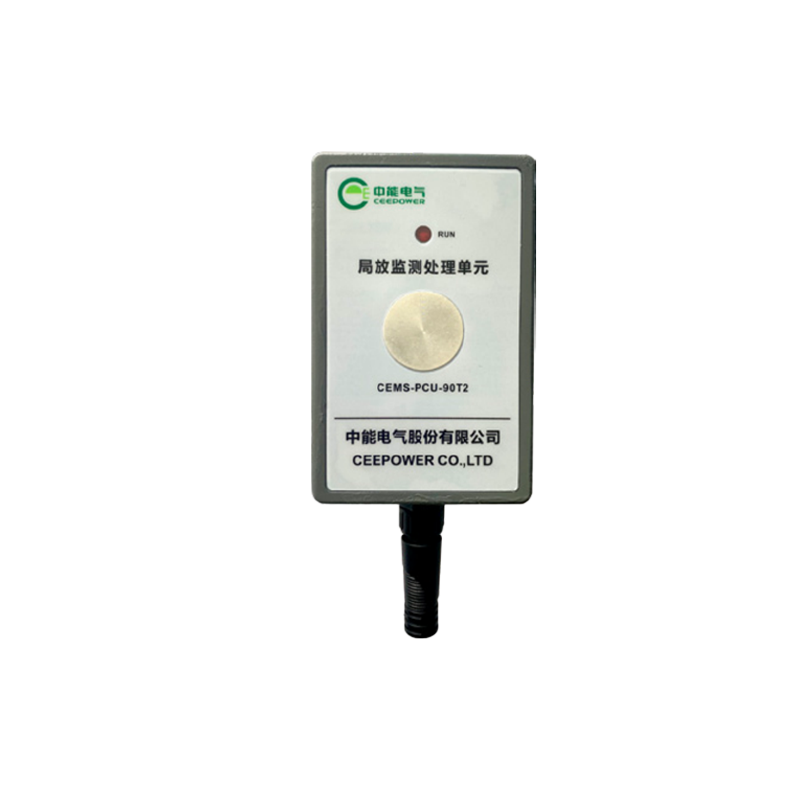

Partial Discharge Monitoring Device
Operating Environment Indoor
Power Supply DC12V
Installation Method Magnetic Adsorption
Operating Temperature -25℃ - +65℃
Operating Humidity 5% - 95%RH
Ultrasonic Center Frequency 40kHz
Measurement Range 0 - 199dB
Resolution ±1dB
Ultra-High Frequency Frequency Range 300MHz - 1.5GHz
Measurement Range 0 - 99dB
Resolution ±1dB
Service Life ≥10 Years
Ingress Protection Rating IP55(90T1)
IP65(90T2)

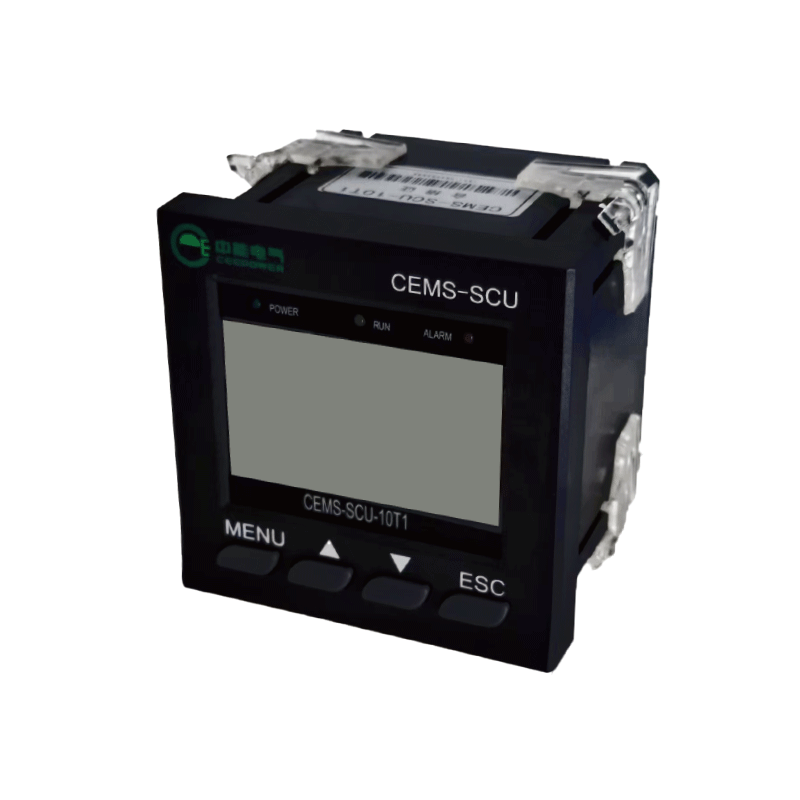

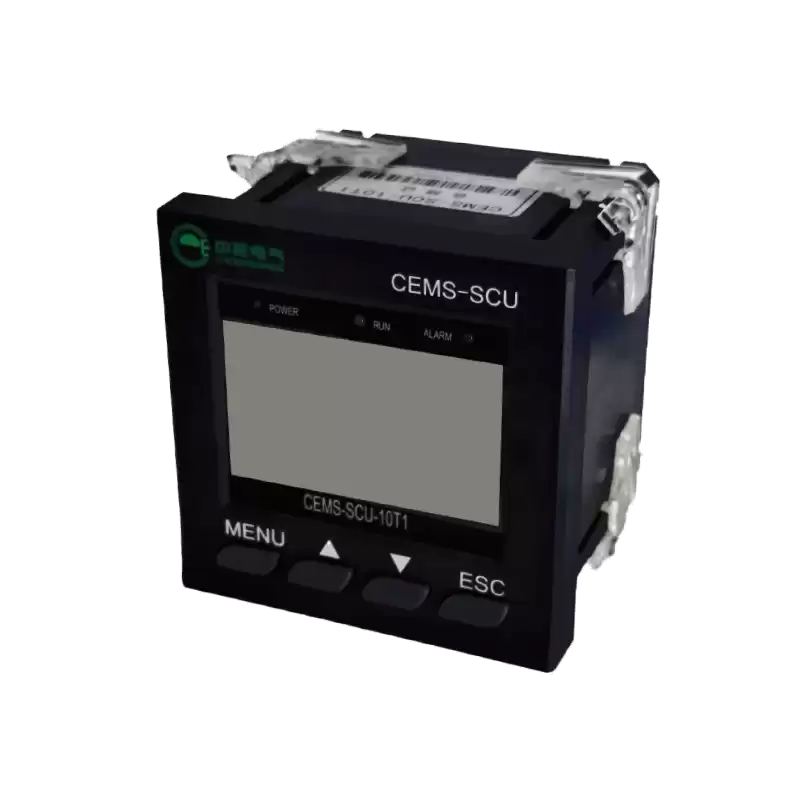

Display Device
Operating Environment Indoor
Installation Method Panel Mounting
Power Supply AC/DC 110–220V
Operating Temperature -25℃ - +65℃
Operating Humidity 5% - 95% RH
Number of Integrated Monitoring Devices ≤6
Communication Interface RS-485 MODBUS Protocol
Service Life ≥10 Years
Weight 0.3kg















  • Application Scenarios



Power Grid Monitoring



High-Voltage Switchgear Monitoring



Substation Equipment Monitoring



Industrial Power Systems



Renewable Energy Installations



Smart Grid Applications
