Product Name
Passive component RF filter (2500 to 2700MHz, SMA-Female/Female, IP60)
RF Filters act as signal gatekeepers, allowing specific frequencies (the ‘passband’) through while blocking signals outside a stated range.
Band Pass Filters are often used to clean up signal interference in radio transmission and communications circuits
Product Features
◆Compact,Low weight
◆ 2G/3G/4G/LTE Coverage
◆ High reliability
◆ Simple installation
◆ Widely used for In-building Solutions
Technical &Mechanical Specifications
|
Model No.
|
MNL-25-27-SMA
|
|
Frequency (MHz)
|
CH1:2500-2700MHz
|
|
Insertion Loss(dB)
|
≤0.5dB
|
|
VSWR
|
≤1.3dB
|
|
Rejection(dB)
|
35dB@0-2300 &2600-3000
|
|
Power Handling
|
50W Avg
500W Peak
|
|
Impedance(ohms)
|
50
|
|
Operating Temperature Range
|
-20℃to +60℃
|
|
Storage Temperature Range
|
-40℃to +85℃
|
|
Relative humidity
|
5%-95%
|
|
Barometric pressure
|
55KPa-106KPa
|
|
Application
|
IP60
|
|
Connector Type
|
SMA-Female
|
|
Packing
|
1 Pce in box
|

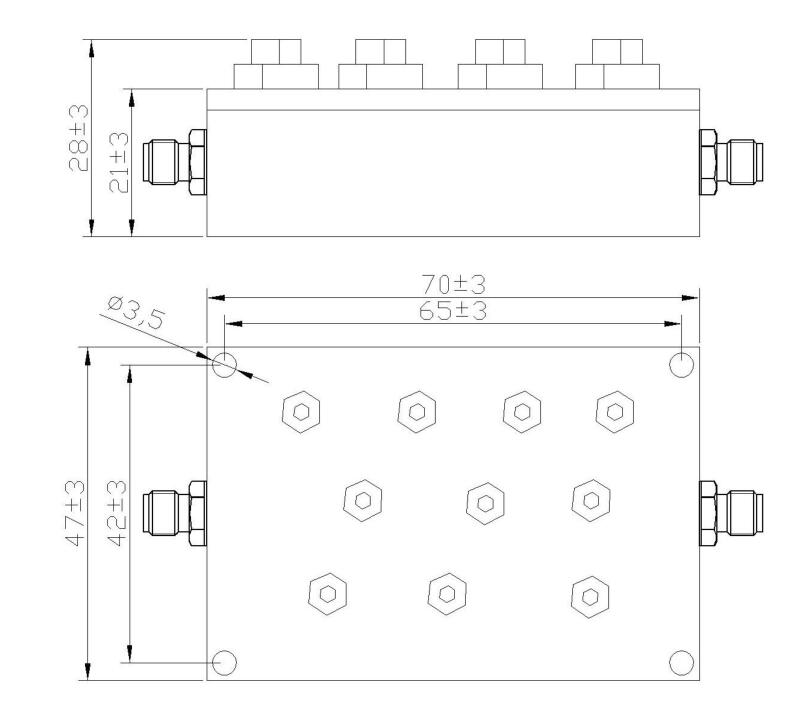

Mechanical Drawing
