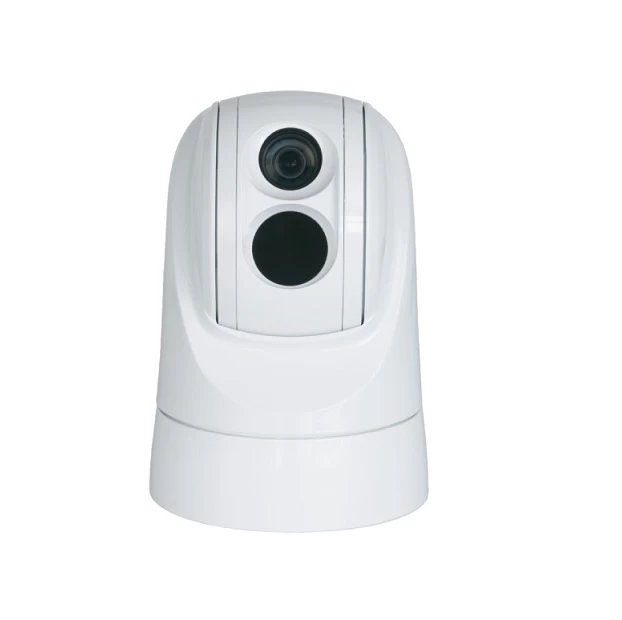

Now our PATC-F series dual payload thermal ptz camrea is a maritime standard ruggedized thermal vision system, housed with aluminum, the camera is anti-corrosive and IP67 rated, enabling it to work properly even in tough sea environment.
The camera incorporates a 640x480/380x288 uncooled thermal core and a 20x day light camera, added its radar tracking, digital stabilization,25hz/30hz continuous thermal imaging capability, easy control with maritime keyboard controller, making the camera a perfect system to assist mariners to safely navigate.
Radar Tracking
PATC-F Series camera recives, reads, analyzes NMEA0183 strings from Radar and manages algorithm calculation from current vessel position to target(s), finally camera move to view the gargets actively.
Digital Stabilization
The in-built digital stabilization system is able to compensate vertical angels to stabilize images, enabling the camera to perform well even in rough weather conditions
Continuous Thermal Imaging
The uncooled 640x480/384x288 thermal core is with 25hz/30hz, provides clear and continuous thermal images.
Indicators On Thermal & Daylight Images
Position indicators, status and scene icons are displayed on both thermal & daylight cameras,providing direct and exact information to assist navigation.
Image Freeze Capability On Thermal & Daylight Images
Both cameras support to freeze images on demand, enable to view more details of specific images
Ethernet & Serial Control Via Keyboard Controller

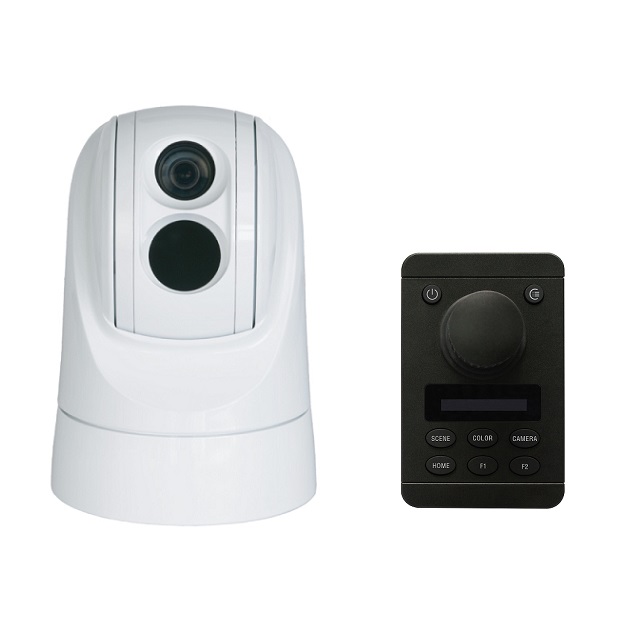

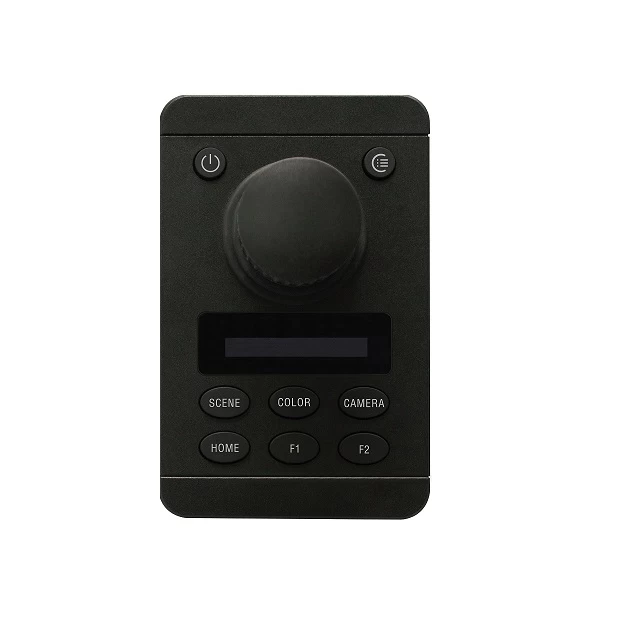

Optional maritime keyboard controller has both Ethernet and RS485 interfaces to control the camera, the controller is used to pan tilt and zoom the camera, operate the camera functions with its buttons and OSD menus,and also move the camera into or out of standby mode.

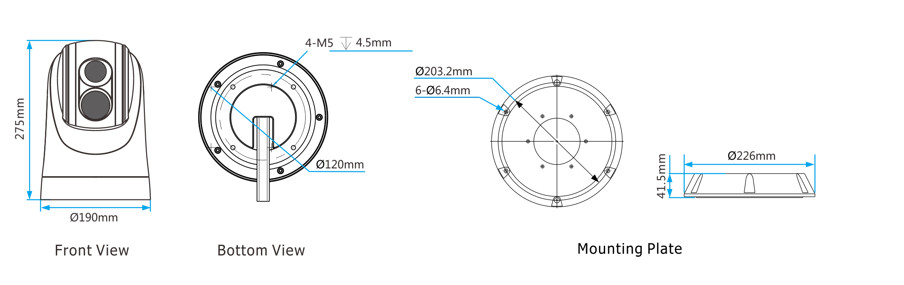

Dimensions(mm)
Application
