Patents Full Cut-Off LED Wall Pack lights

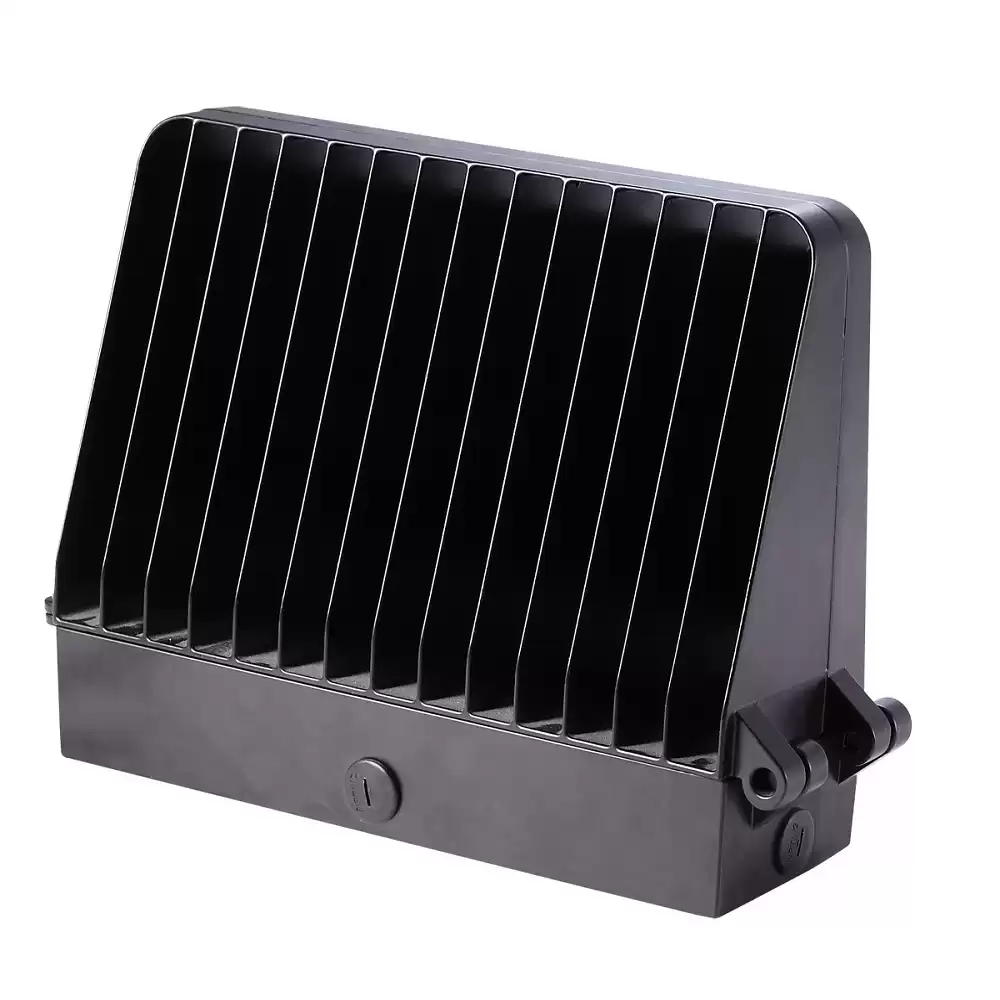

It is unique design Full Cut-off Wall Pack (MA-EWP203A-80W) are series of patent products, which unique funnel heat sink, making the lamp better for heat dissipation.



Full Cut-off LED Wall Pack Lighting


It is using high transmittance lens , which is suitable for wall light distribution. So, they are elegant appearance wall pack light and unique and excellent structure.

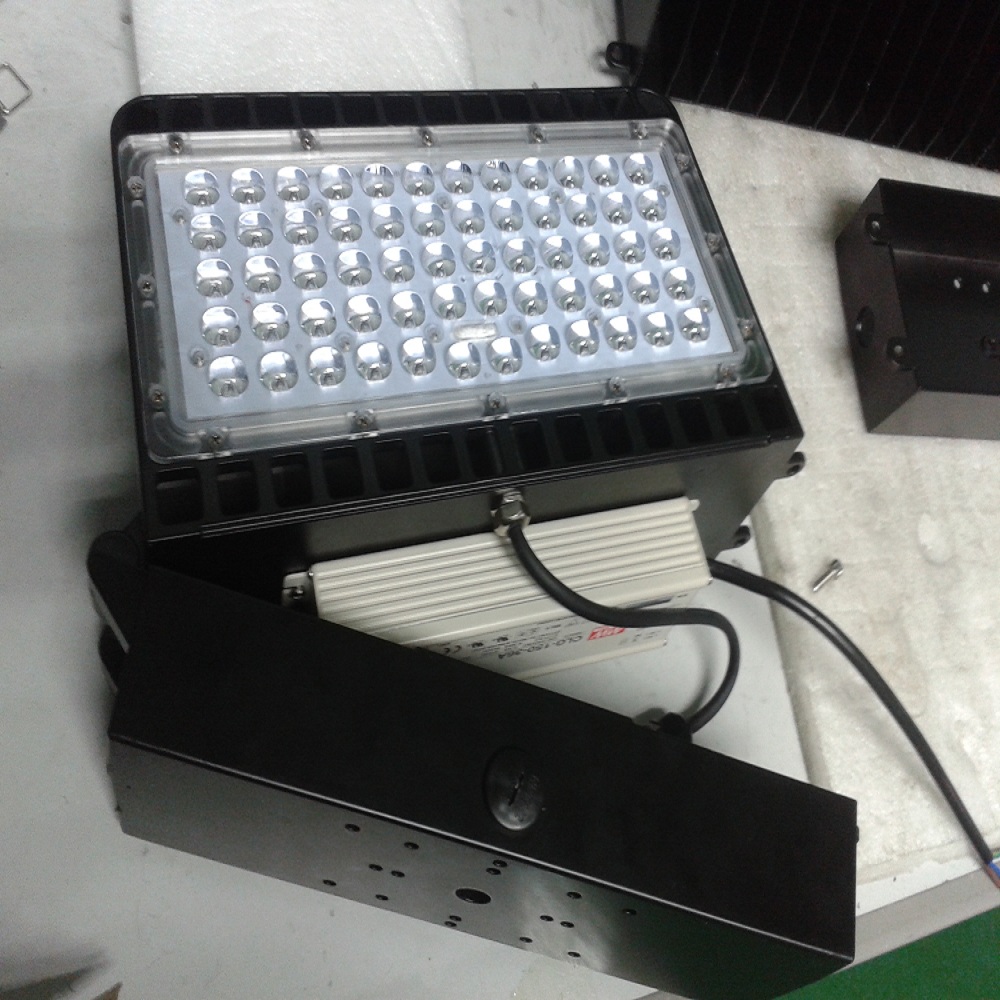

Besides, The LED driver and LED light source are separated, which is convenient for installation and assembling. LED wall pack is SMD LED chips, and it is using Cree / Samsung/ Lumileds LED chip that high efficiency power supply is applied.

For application, factory workshop, gym,industrial lighting, wall lighting area. So, our product that Full Cut off wall pack light for outdoor.

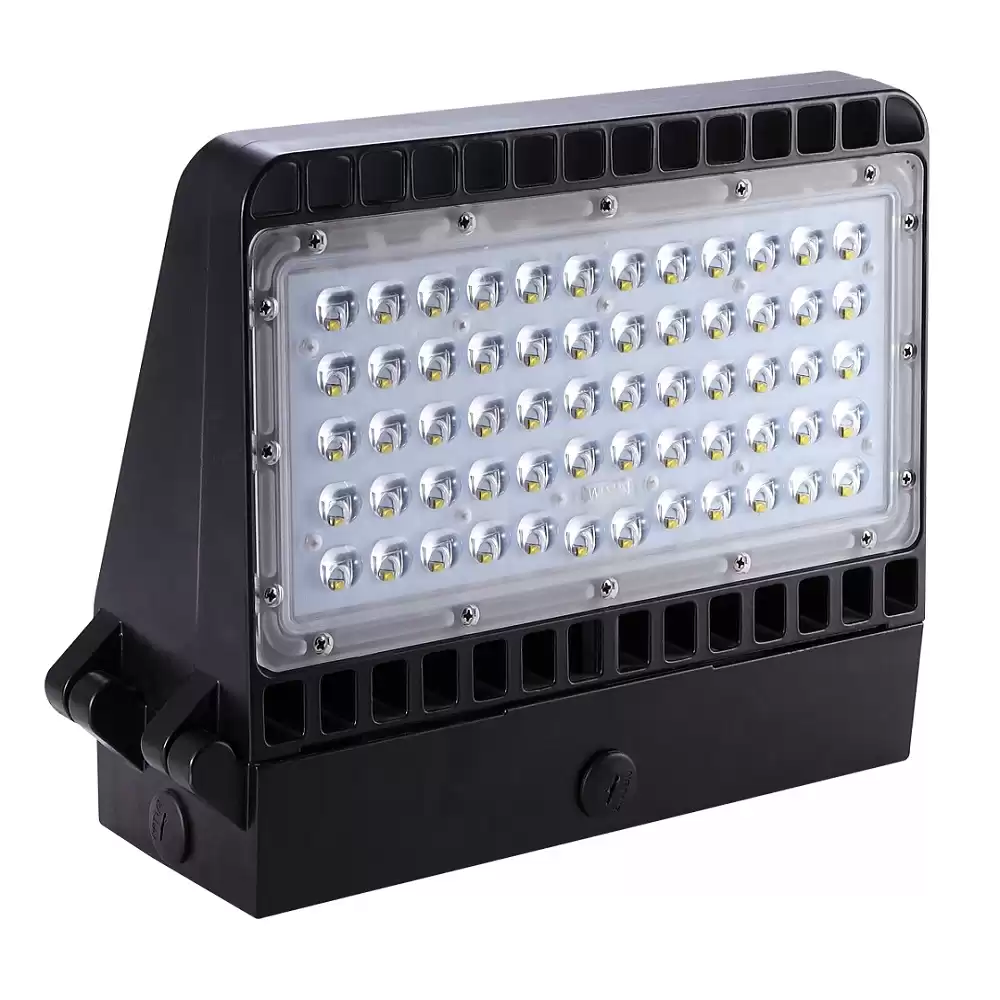

PRODUCT APPEARANCE

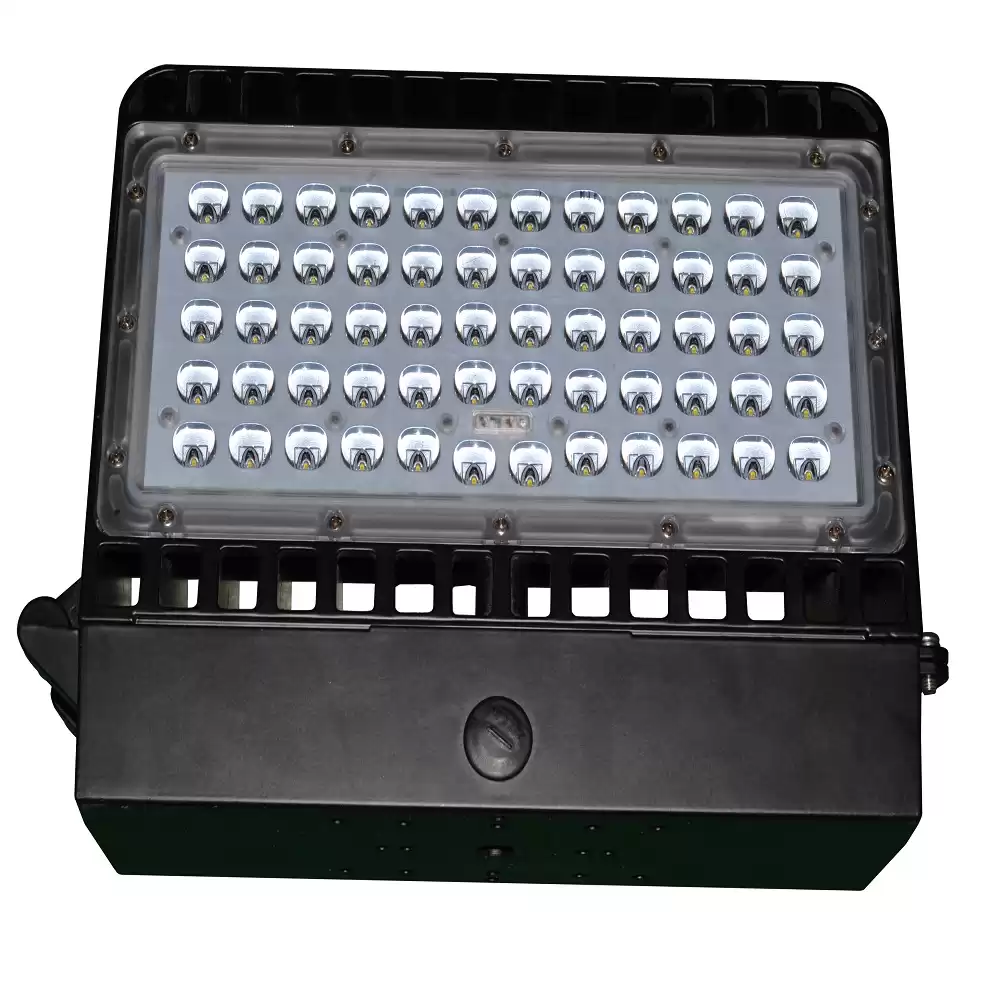

48W High quality wall pack light

PRODUCT SPECIFICATION


Product No. MA-EWP201A-24W
MA-EWP202A-48W
MA-EWP203A-80W
MA-EWP204A-100W
MA-EWP205A-120W
MA-EWP206A-150W
Power 24W 48W 80W 100W 120W 150W
CCT
2800K~7000K
2800K~7000K
2800K~7000K
2800K~7000K
2800K~7000K
2800K~7000K
RA
≥70
≥70
≥70
≥70
≥70
≥70
Input Voltage
AC 100-277V
AC 100-277V
AC 100-277V
AC 100-277V
AC 100-277V
AC 100-277V
Lumens
2880 LM
5760 LM
9600 LM
12000LM
14400LM
18000LM
Lamp
power
24±3W
48±4W
80±5W
100±5W
120±5W
150±5W
LED
quantity
30 50 80 100 120 150
Certificate
ETL,DLC
ETL,DLC
ETL,DLC
ETL,DLC
ETL,DLC
ETL,DLC
Beam angle
85*135° /100*140°/ 120°
85*135° /100*140°/ 120°
85*135° /100*140°/ 120°
85*135° /100*140°/ 120°
85*135° /100*140°/ 120°
85*135° /100*140°/ 120°
Storage Temp
-40 ~ 50°C
-40 ~ 50°C
-40 ~ 50°C
-40 ~ 50°C
-40 ~ 50°C
-40 ~ 50°C
Warranty
5 Years 5 Years
5 Years
5 Years
5 Years
5 Years

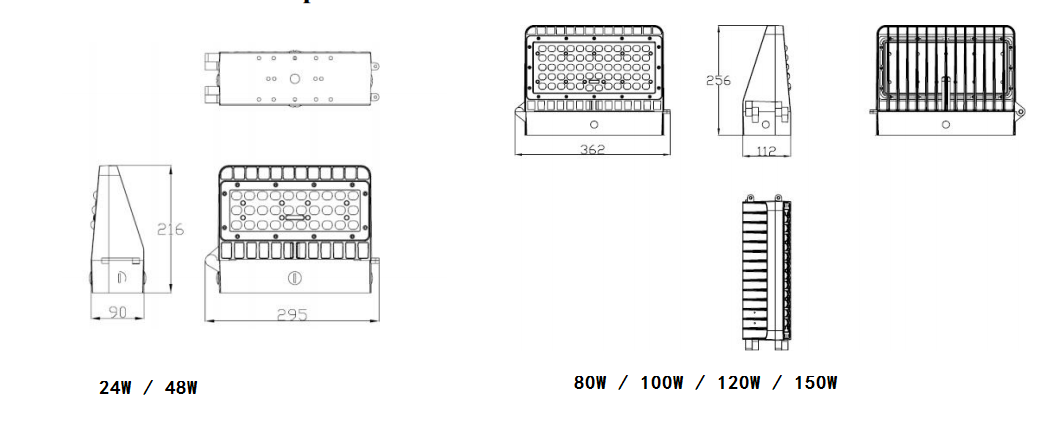

PRODUCT DIMENSION

80W Full cut wall pack light

PACKING INFORMATIONS


Product No.
Product size
Packaging size
N.W
G.W
MA-EWP201A-24W
295*90*216 mm
370*310*190 mm
2.4 KG 2.7 KG
MA-EWP202A-48W
295*90*216 mm
370*310*190 mm
2.5 KG 2.9 KG
MA-EWP203A-80W
362*112*256 mm
430*200*345 mm
4.8 KG 5.4 KG
MA-EWP204A-100W
362*112*256 mm
430*200*345 mm
4.8 KG 5.4 KG
MA-EWP205A-120W
362*112*256 mm
430*200*345 mm
4.9 KG 5.6 KG
MA-EWP206A-150W
362*112*256 mm
430*200*345 mm
4.9 KG 5.6 KG


ATTENTION FOR INSTALLATION


Cut off the power and make sure the wall can burden the weight of the lamp before install the lamp.
Make sure the lamp correctly installed, in case of the lamp’s dropping down.
Do not use the lamp in the area with aggressive gas.
Do not cover the lamp with anything which is harm for heat dissipation.
Be careful and connect the ground line well.
Guaranty 5 years.
Products faults caused by separating, remodeling or incorrectly construction are not in the warranty area.
