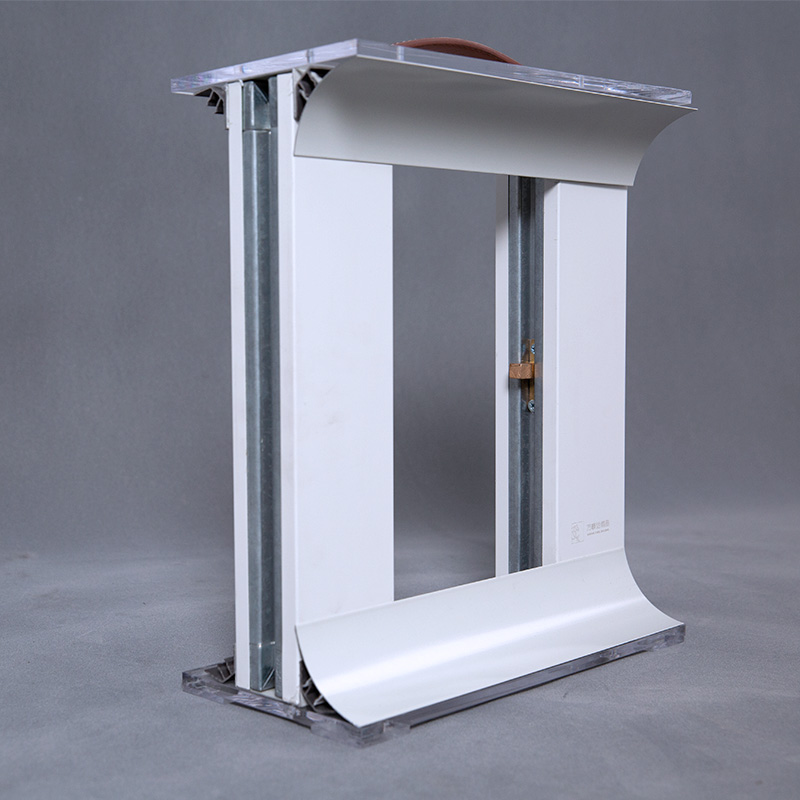

Patents Removable Sandwich Wall Panel System For Electronic Cleanroom
Wiskind Quick replaceable Removable cleanroom wall panel, mainly used in clean room equipment reserved and reserved for easy damage, modular cleanroom wall panel installation, convenient splicing, obtained national patent in 2015.
- Keel TCK0.6-0.8mm
- ApplicationsPharmaceutical Cleanroom,Electronic Cleanroom,Food Cleanroom,etc.
- CoatingPE,PVDF,HDP
- Core MaterialsPU, Rockwool, Glass Magnesium, Paper Honeycomb, Aluminum Honeycomb, Gypsum, EPS, etc.
- Steel Facer TCK0.4-0.8mm
- Outer Plate MaterialPPGI,Al-mg-Mn Alloy steel,SS steel,Ti-Zn steel,HPL,VCM
- Max Length7500mm
- Wall TCK50mm,75mm,100mm,150mm
- Width980mm,1180mm
1. In the process of construction and use, the removable sandwich wall panel will inevitably have partial damage and need to be replaced or repaired.
2. In addition, due to changes in process equipment, the cleanroom layout is adjusted and the partial wall needs to be removed. However, traditional cleanroom wall panels sare difficult to achieve partial disassembly, and construction and end users are often troubled by these problems.
3. The successful development of Wiskind quick removable cleanroom wall panel has solved this problem.
Product Descirption |
|
Product Name |
Patents Removable Sandwich Wall Panel System For Electronic Cleanroom |
Wall TCK |
50mm,75mm,100mm,150mm |
Outer Plate Material |
PPGI,Al-mg-Mn Alloy steel,SS steel,Ti-Zn steel,HPL,VCM |
Coating |
PE,PVDF,HDP |
Core Material |
PU,Rock Wool,Magnesium Board,Paper Honey Comb,Aluminium Honey Comb,Plaster,EPS,etc. |
Keel TCK
|
0.6-0.8mm
|
Application |
Pharmaceutical Cleanroom,Electronic Cleanroom,Food Cleanroom,etc. |

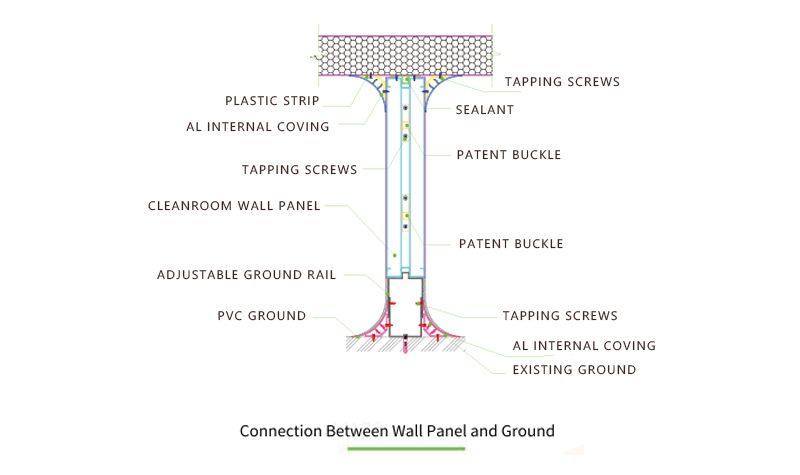

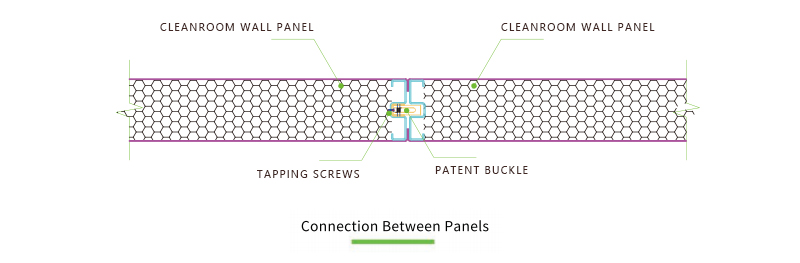

Connection Scheme
Advantage:
1. This product is more suitable for the clean room equipment reserved and reserved for damage.
2. The quick replaceable aluminum buckle cleanroom wall panel,the technology won the national patent in 2015.
3. Factory accepts customization.
