Technical Data
Nominal voltage :AC220V
Nominal frequency:60HZ
Main fuses :10 A
Nominal power :1000 VA
Dry weight ,unpacked :approx.100 kg
Weight ,packed :120kg
Operating temperature range :15 ℃ to 35 ℃ .
Relative humidity :10 to 80%
Paraffin Wax Baths
Number of baths :3
Volume(liters):5.0 per bath .
Melt time : approx .3 hrs
Temperature :65 ℃
Temperature accuray :+1 ℃ .

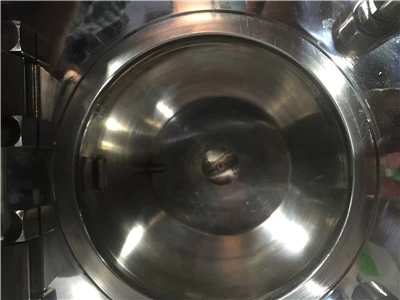

Retort

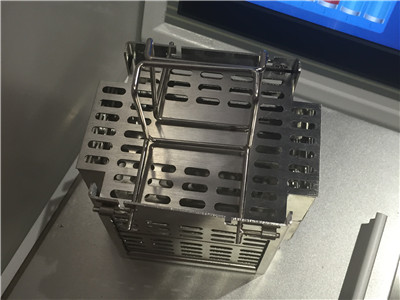

Capacity : approx .300 cassettes
Reagent volume :6.0 Lt.
Temperature (Paraffin ) :65 ℃
Temperature ( reagents ) :ambient or 35 ℃
Temperature (cleaning reagents ) :65 ℃
Temperature accuracy :+1℃
Filling time :5 min
Drain time :5 min
Impregnation vacuum :-70 kPa (g)
Impergnation pressure :35 kPa (g)
Fill vacuum:-70 kPa (g)
Drain presssure :35 kPa (g)
General

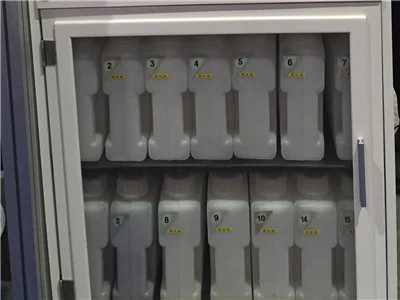

Reagent bottles :9
Cleaning solution bottles :3
Maximum bottyle volume :4.0 1
Recirculation (pump in/ out ) :ON/OFF
Time between cyles :15 min
Hardware and Software :

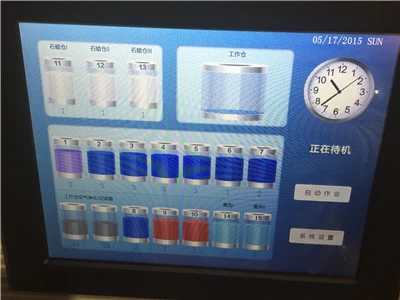

Large color Liquid Crystal Display (LCD )
User-friendly ,intelligent software
Alarm system to reminder wrong operation and troubles
Multiple specimen protection system
Capacities :
15 programs that consist of up to 9 reagent and 3 paraffin wax steps .
Time per program steps : 0 to 99 hours , 59 minutes .
Up to 300 cassettes can be processed .
Wax clean program .
9 reagent bottles .
3 wax baths
3 cleaning solution bottles
2 condensate bottle .
