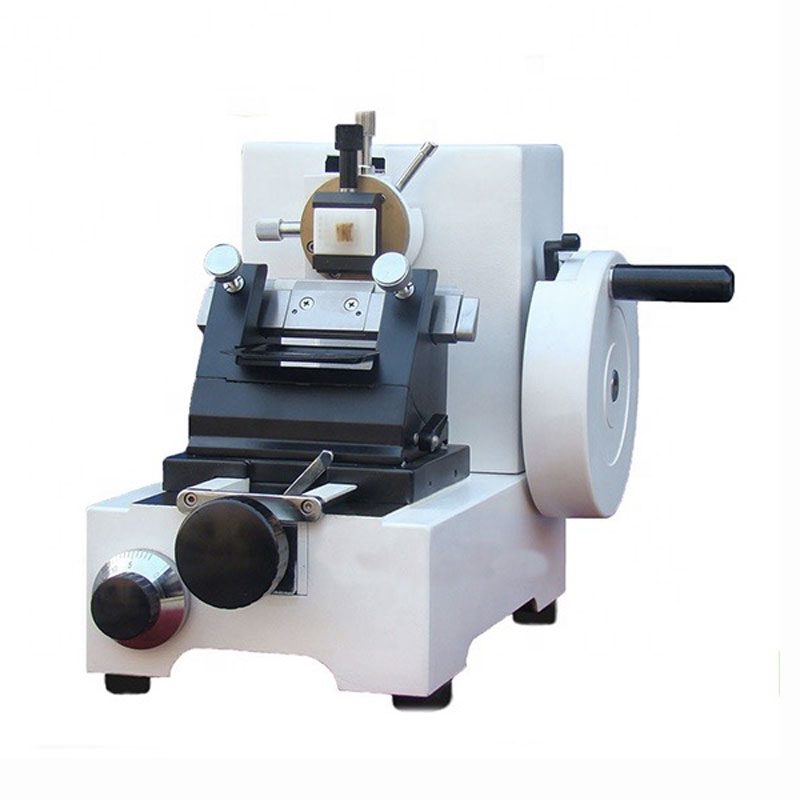

Pathology Histology Equipment Semi-Automatic Microtome
Paraffin Micrtome YSD-2000
|
|
Model
|
YSD-2000
|
|
Section thickness range
|
1~35μm continuous section >35μm arbitrarily adjusted slice thickness set engineering
1~60μm serial section >60μm arbitrarily adjusted slice thickness (optional)
|
|
Fast forward and retreat displacement speed
|
0~500μm
|
|
Vertical Specimen stroke
|
60mm
|
|
Sample orientation
|
8°along the X-Y-axis,rotable 360°
|
|
Minimum Setting of Sectioning Thickness
|
1μm
|
|
Maximum section size
|
|
|
Dimensions incl. tray ( W*D*H )
|
420×330×330(mm)
|
|
Net weight
|
|
|
Warranty
|
1 year
|
This model is developed based on semi-automatic microtome,it combine advanced and patented technology,and it's very good choice for histopathology research.
This model adopt streamline design,advanced function,stable performance,user-friendly.Specimen feed drive is controlled by intelligent control system.Manual and automated sectioning mode.Speed of sectioning can be adjusted;emergency Stop(E-stop).Precise electrical mechanical design,Ergonomic concept.

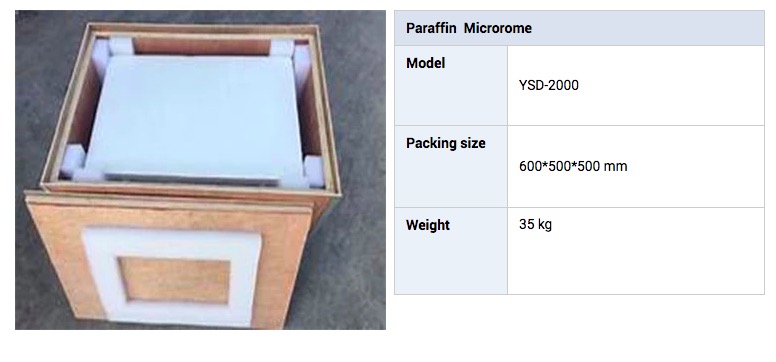

Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
