Pathology Laboratory Rapid Detection Cryostat Microtome


  • Model NumberYSD-CM6250
  • ComplianceCE Certified
  • Minimum Order Quantity1
  • Operation method

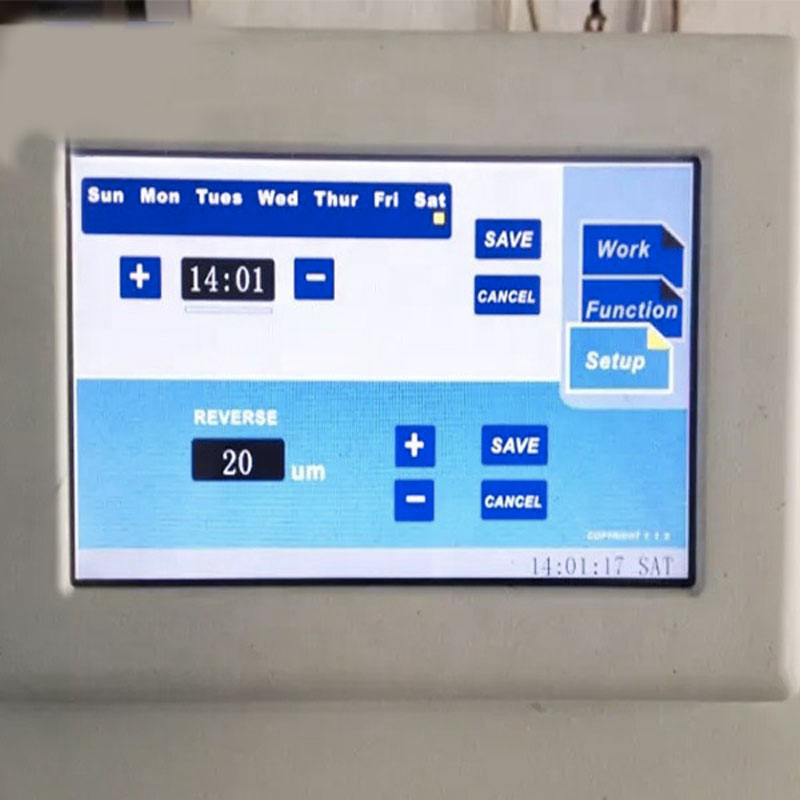

  • ScreenLCD
  • Capacity
  • Oscillating Frequency
  • Speed
  • Voltage108V-240V 50/60HZ
  • Power
  • Warranty1 year
  • Temperature range
  • Dimension(L*W*H)700*780 *1152mm
  • Weight200kg
  • Packaging DetailsExport wooden package
  • Delivery Time6-8 day
  • 2
  • 3
  • 4

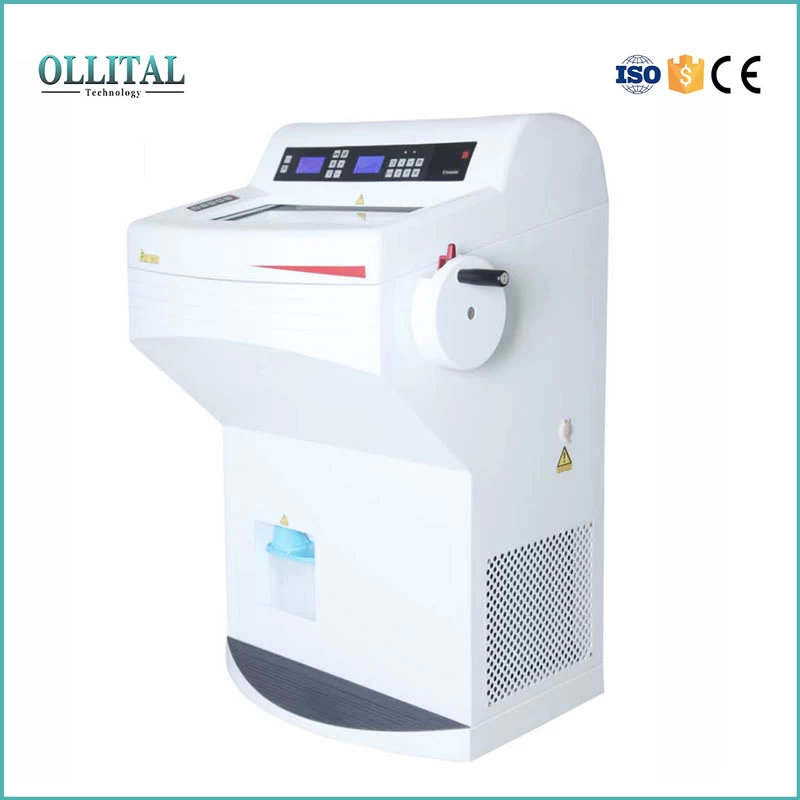

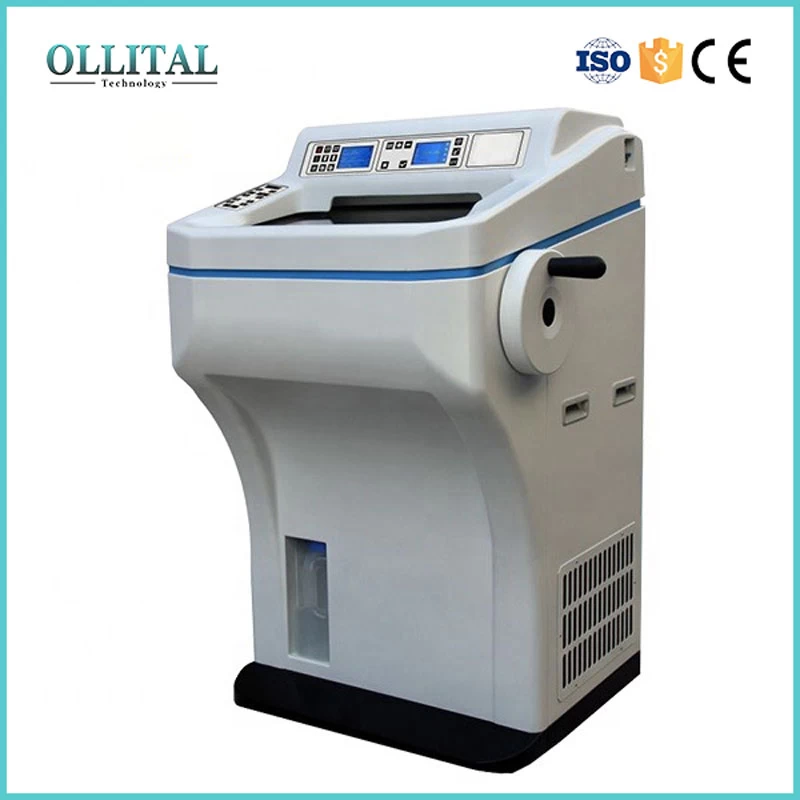

   Pathology Laboratory Rapid Detection Cryostat Microtome

The Cryostat Microscope result is a versatile cryostat with optimized cooling system, rapid specimen freezing and smooth specimen
orientation for the high-quality sectioning demanded in routine histology and clinical pathology. Up-to-date
technology with an ergonomic design – for quick and safe sectioning.

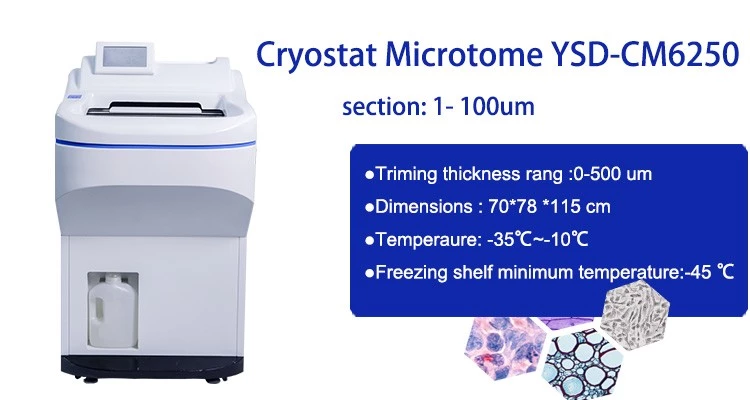

Cryostat Micortome YSD-CM6250
Model
YSD-CM6250
Section thickness range
1- 100um
Form 0-10um in 1 um-increments
Form 10-20 um in 2 um-increments
Form 20-50um in 5 um-increments
Form 50-100um in 10 um-increments
Freezing shelf minimum temperature
-45℃
Trimming thickness range
0~500 um
Specimens max size
55*55 mm

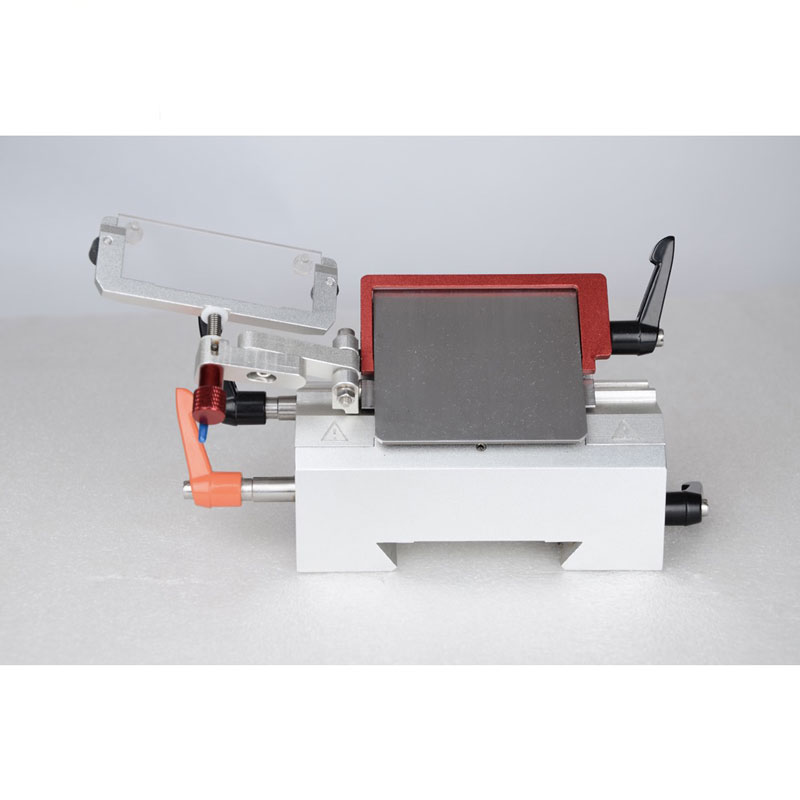

Clamp max adjustable angle
12°
Specimen fast moving speed
0.7 mm/s
Dimensions
700*780 *1152mm
Net weight
145kg
Warranty
1 year

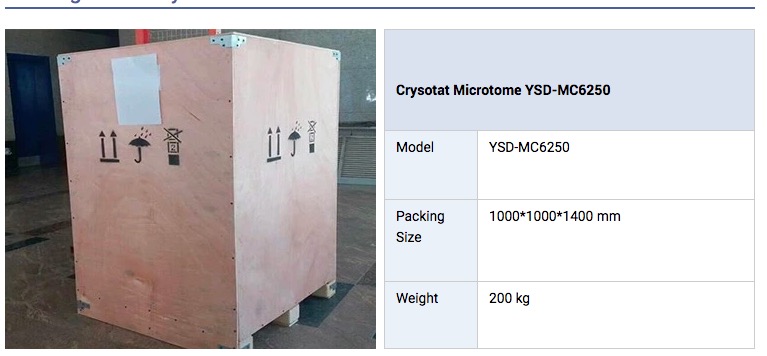

Packing and Shipping

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
