Technical Parameters

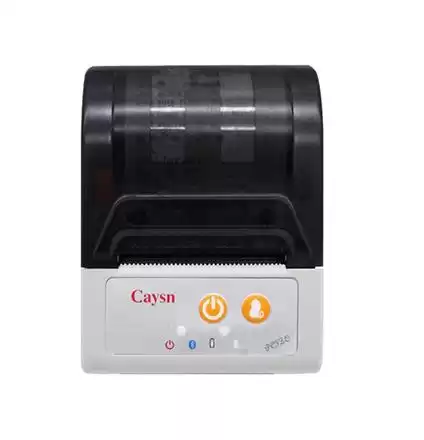

Product | PC201 | |||
Printing method | Thermal printing | |||
Resolution | 203DPI, 8 dots/mm | |||
Printing width | 48mm(384dots) | |||
Printing speed | 80mm/s | |||
Interfaces | Wired: Micro-USB; Wireless: Bluetooth, Ios and Android | |||
Command set | ESC/POS compatible commands | |||
Print Font | ASCII Font A: 12×24/ASCII Font B: 9×24/Chinese: 24×24 | |||
Graphics printing | Support dots printing with different densities, Support raster bitmap print, Support downloaded bit image print | |||
Code pages | Support simplified & traditional Chinese, English, Japanese and other 45 kinds of international character sets | |||
UTF-8 | Support | |||
Bar codes |
1D: UPC-A; UPC-E; EAN-8; EAN13; CODE39; ITF; CODEBAR; CODE128; CODE93; 2D: QR CODE |
|||
Paper type | Thermal receipt paper | |||
Paper thickness | 0.056~0.1mm | |||
Paper width | 57.5±0.5mm | |||
Paper roll diameter | 50mm(Max) | |||
Paper tore | Manual | |||

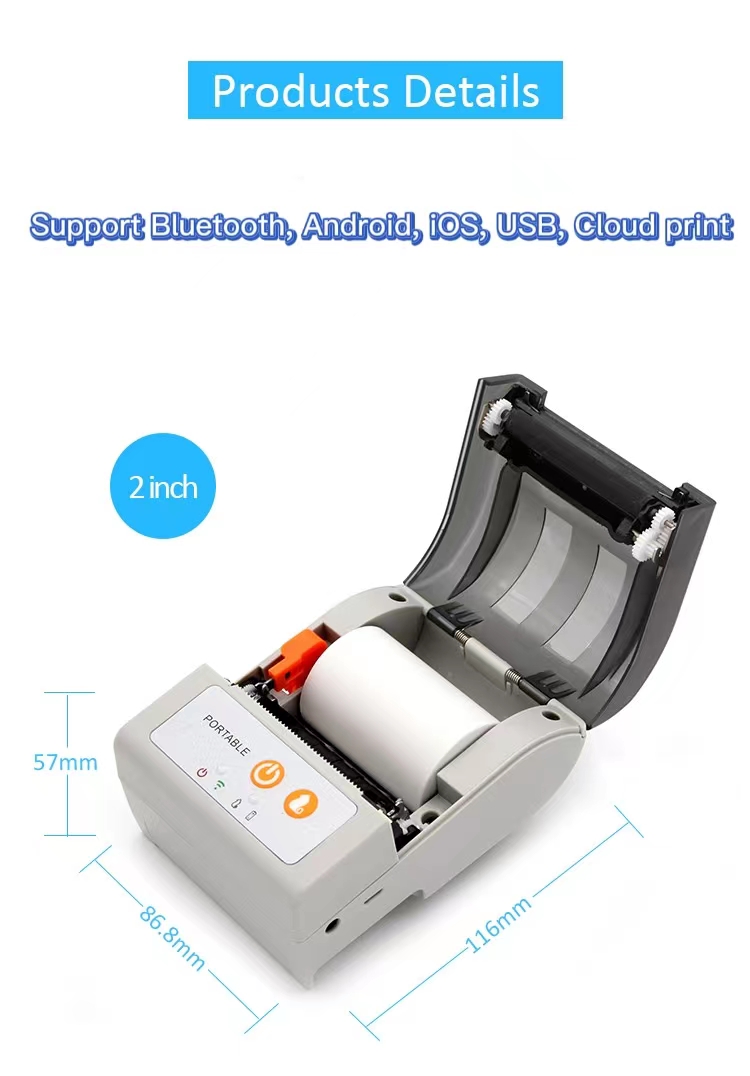

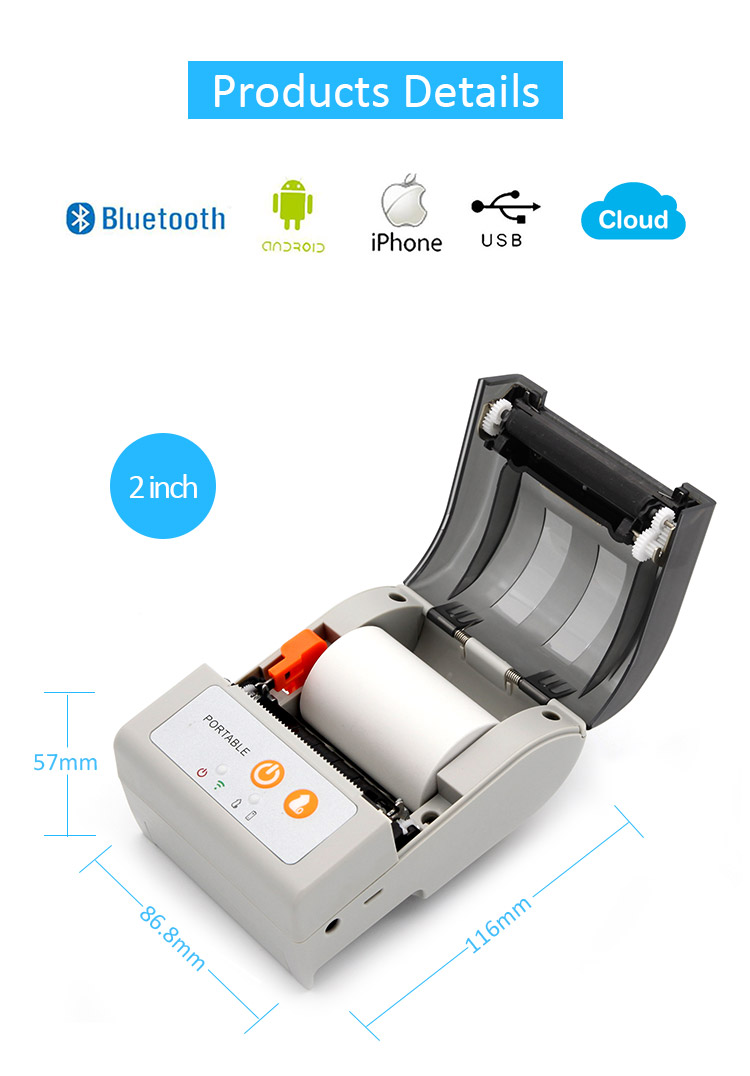

Printer dimension | 116mm×86.8mm×57mm(L×W×H) | |||
Weight | 310g (Printer & Battery) | |||
TPH life | 50km | |||

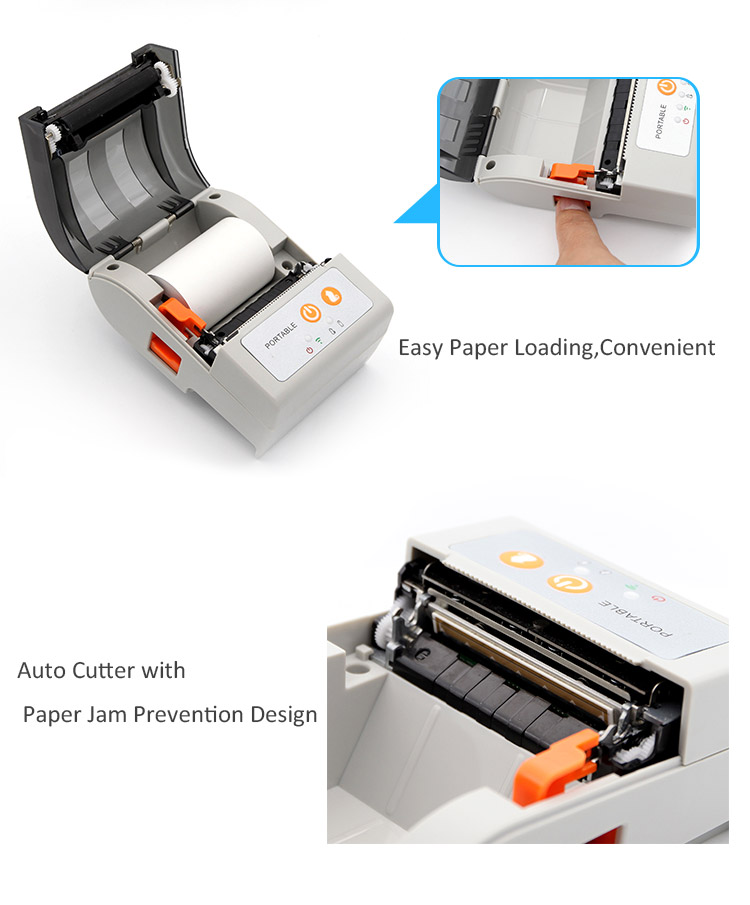

Cutter life | 1,000,000 times | |||

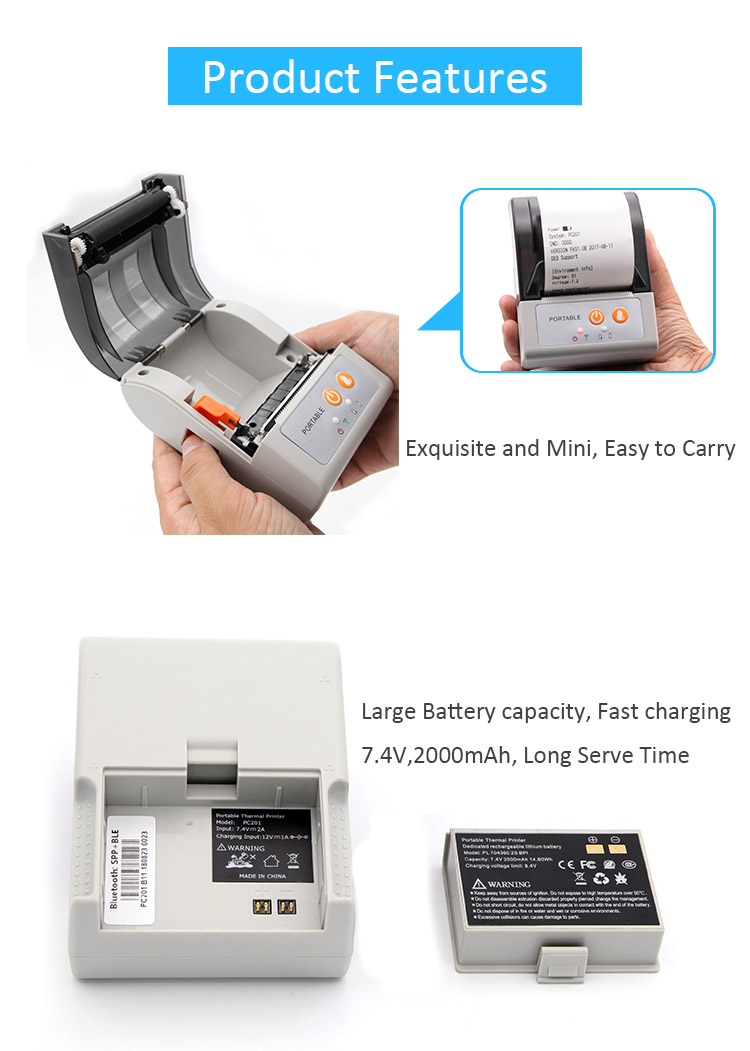

Battery | Rechargeable Li-ion Battery, 7.4V, 2000mAh | |||
Power Supply |
12VDC/1A |
