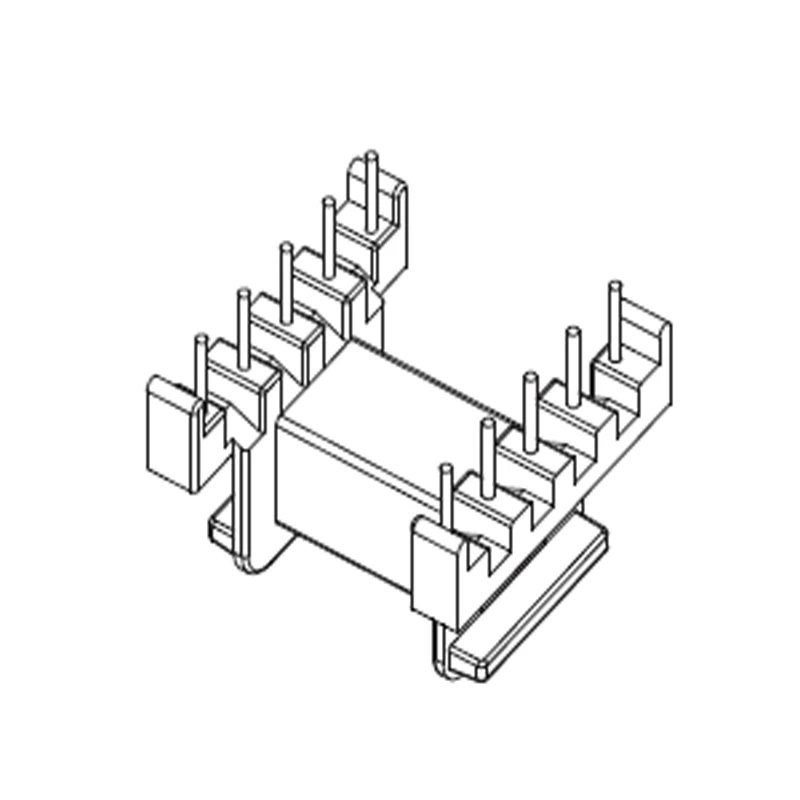

PCB Board Transformer EF25 Bobbin Horizontal

Lead wire EF25 bobbin. Horizontal coil former 10 pins. Bobbin Size=25.5mmX25.1mmX19.3mm. Pin pitch=5.0mm. Parallel Distance=20.0mm. Phenolic bobbin for transformer. DIP bobbin.



China ISO9001 bobbin factory, manufacture final electronic transformer for customer, welcome for inquiry.


Quick Details

Part No: MCT-EF2575

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: PCB Board Transformer EF25 Bobbin Horizontal

Standard parts: Transformers, Inductor, current transformers, magnetic cores.

Applications: Consumer electronics, computer, TV parts, power supply. filters, etc.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air(TNT/Fedex/UPS/DHL/EMS), By ship, etc.

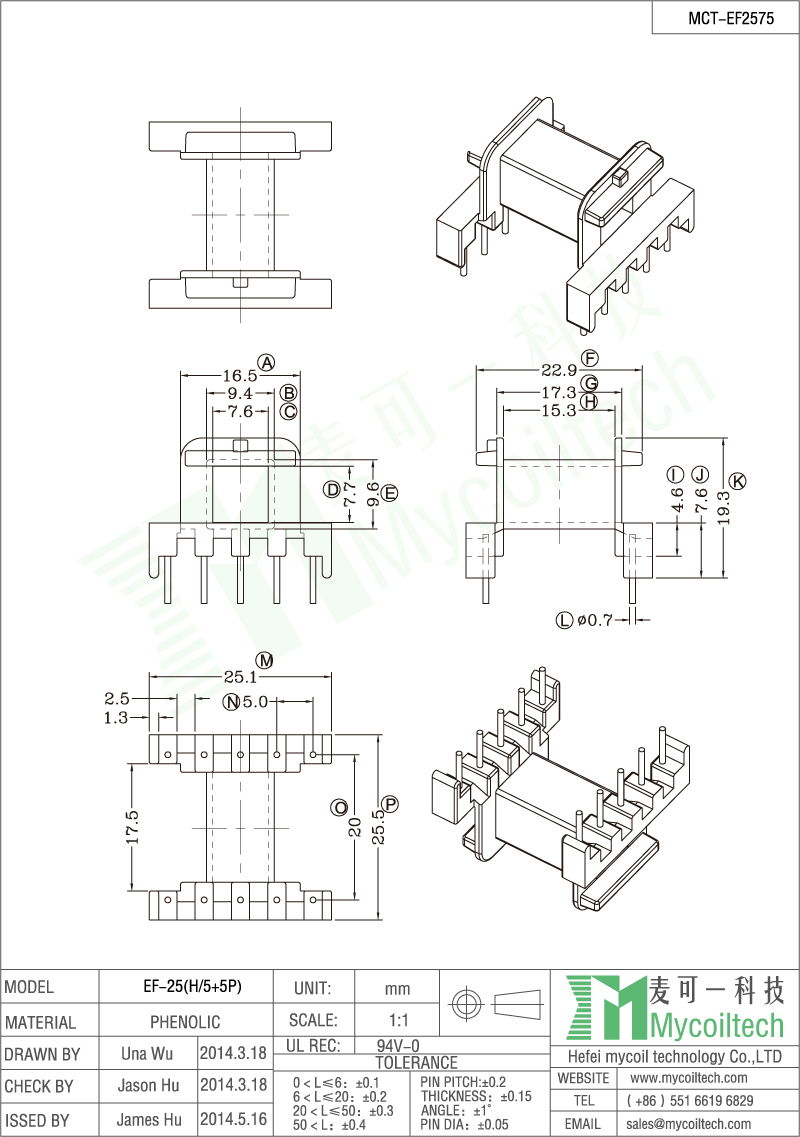

Product Specification

Pin 5+5 horizontal bobbin
