PCB Edge Grinding Beveling Machine for printed circuit board making factory

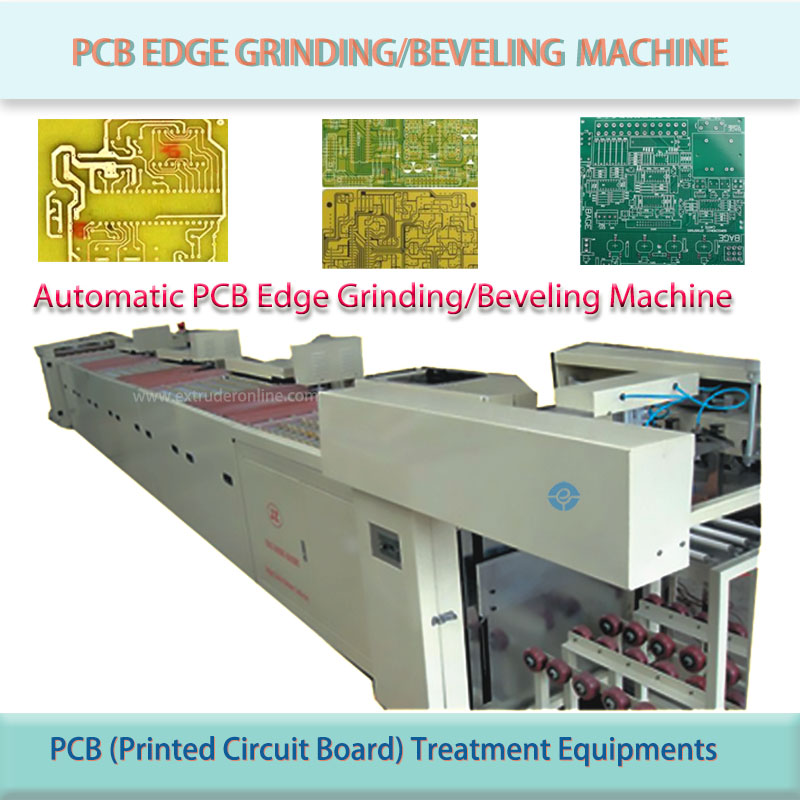

JZ Automatic Edge Grinding (Beveling) Machine

HS CODE: 8465920000 OR 8479899990

Brand: JZ

Purpose:  PCB’S Edge Grinding /Beveling

Advantage:

• Automatic Unreeling and Collecting PCB(Printed Circuit Board).
• Adopting single side grinding (beveling), avoid grinding the PCB shape into Rhombus (diamond shape).
• Equipped special devices for avoiding two workpieces come in or come out at the same time.

Technical Data:

• Power: AC220V/380V,50Hz/60Hz, 3Phase,
• Machine Controlling: AC220V, single phase, 50Hz,
• Total installation power: around 4KW;
• Air source: 6-8Kg/cm2, total air consumption:1000L/Min.
• Dust collect plant: Max. static air pressure: 1000mmAQ,
• Blast Capacity: 25M3/Min.
• Suggesting pipe for dust collecting: around 76mm
• PCB Thickness: Min. 0.4mm, Max.: 3.2mm
• PCB size: Min. 200mm*200mm, Max.: 610*610mm
• Transferring speed: 10M/ Min.
• Effective length for working: 900± 50mm
• Output capacity: 7-8PCS/Min. (10PCS or over if by only grinding edge operative mode.)
