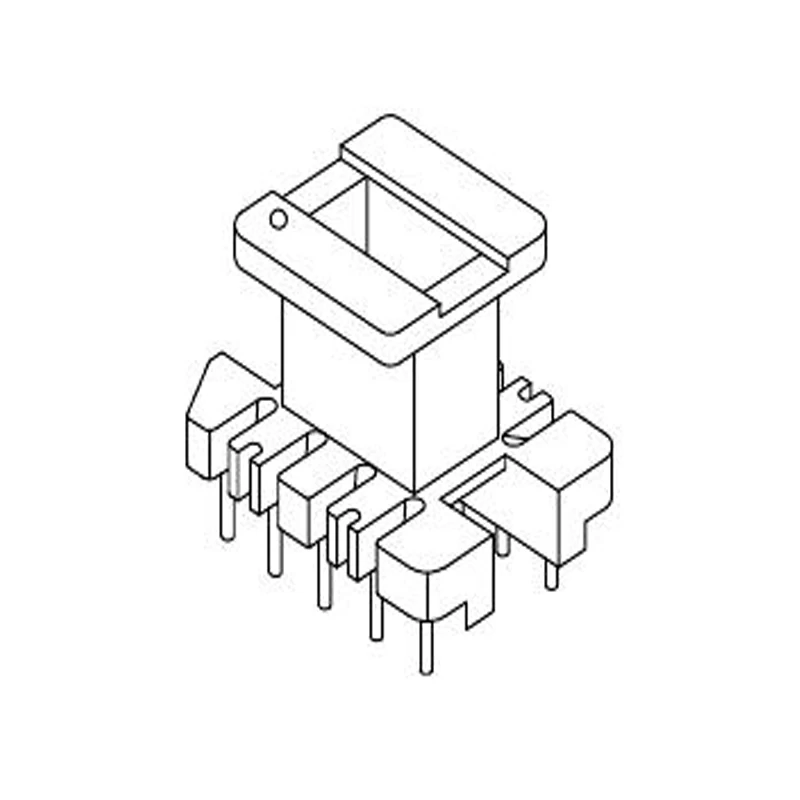

PCB Mounting Transformer EE30 Vertical Bobbin

Power supply EE30 transformer. Vertical EE30 coil former pin 5+5. Bobbin Size=25.7mmX21.6mmX23.9mm. Pin pitch=5.0mm. Parallel Distance=17.5mm. Low voltage and low frequency EE30 electronic winding transformer.



EE30 ferrite core bobbin with 5+5 pins, vertical shape winding bobbin. We manufacture final transformer for PCB assembly, samples can be sent for testing.


Quick Details

Part Number: MCT-EE3011(V5+5P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: PCB Mounting Transformer EE30 Vertical Bobbin

Product Range: Transformers,Inductors,Bobbins,Ferrite cores.

Applications: switching power supply,main power supply,high frequency transformers.

Samples time: 7-10 days for customized parts,3-5 days for standard parts.

Shipping Details: By air, By ship, etc.


Product Specification

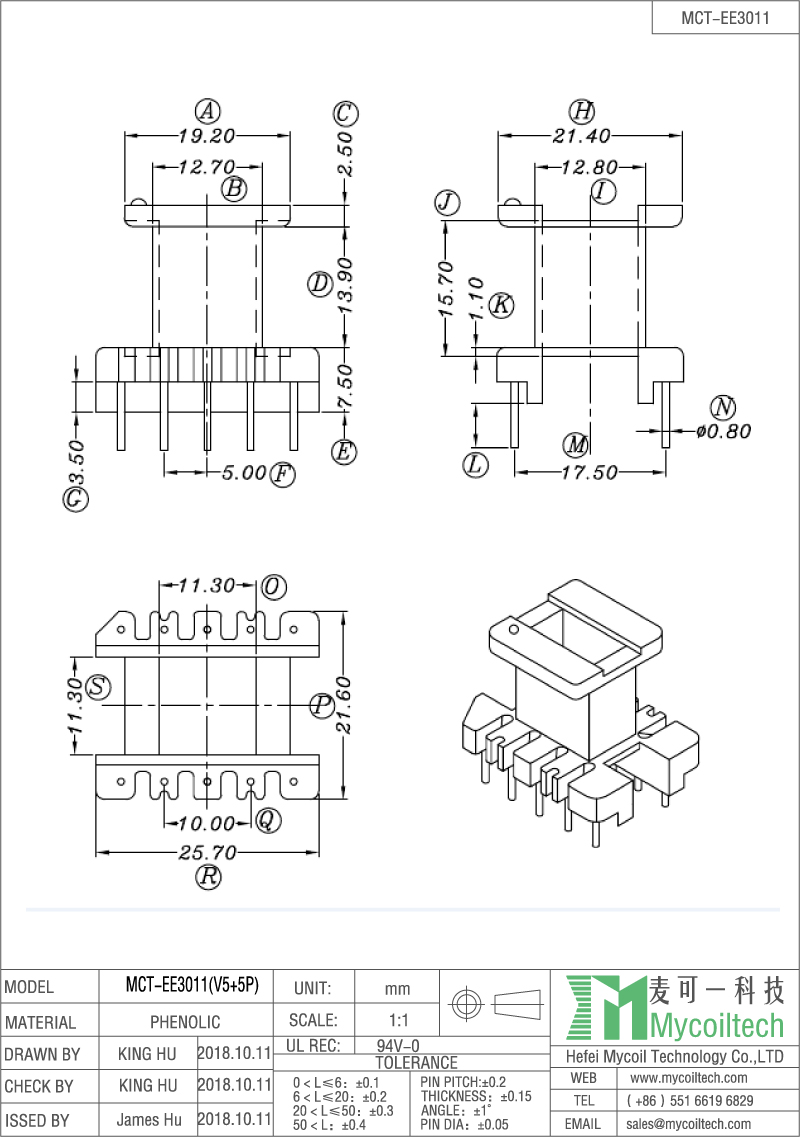

EE30 transformer vertical bobbin
