1.Description
PCM3051S chip adopts advanced MEMS
monocrystalline silicon pressure sensor chip. The
sensor signal is converted into a standard signal
output by a dedicated signal processing module.
After long-term aging and stability screening, the
product performance is stable and reliable. It is
applied to the outdoor scene where the environment
is harsh. At the same time, it can display on-site
pressure, zero point and full range migration.

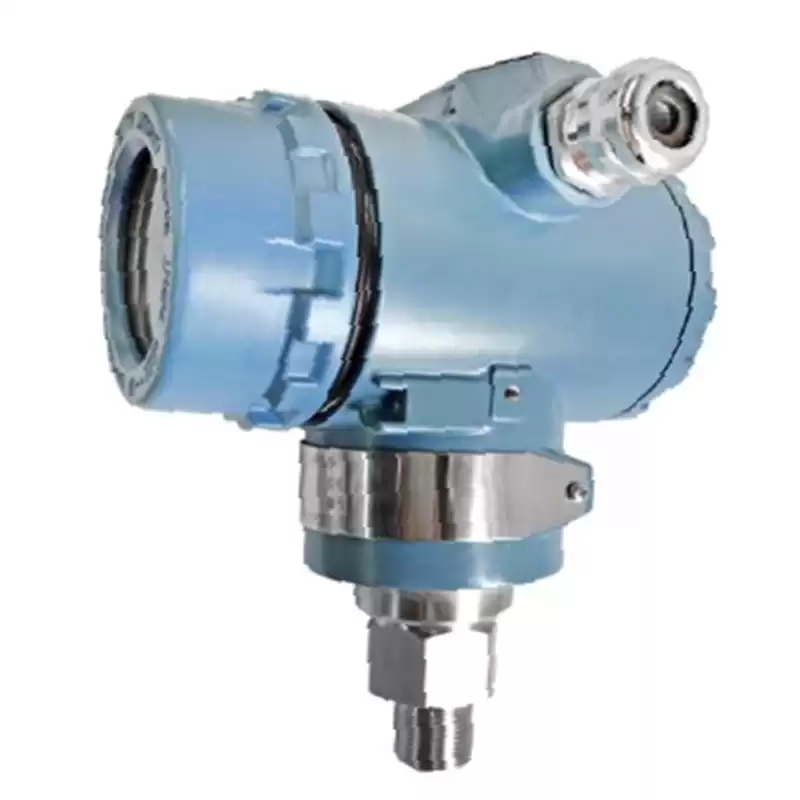

The installation port form of PCM3051S
monocrystalline silicon pressure transmitter can be
processed according to the requirements of users,
and can also be compatible with other brands of
transmitters. This series of products are widely used
in industrial process control, petroleum, chemical,
metallurgical and other industries.
2.Features
■ Advanced MEMS monocrystalline silicon
pressure sensor chip adopted
■ Wide pressure range covering

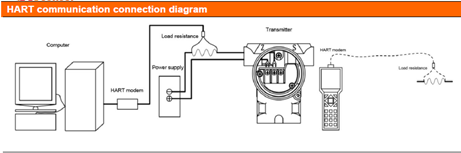

■ Double-wire mode, 4～20mA HART®
protocol digital communication option
■ Intelligent LCD gauge outfit with backlight
■ With both the remote transmission and the
local zero and pressure range adjustment
■ Complete varieties, high accuracy, good
stability,
■ Isolation ex-proof housing structure, strong
resistance to the frequency conversion
interference
■ No mechanical transmission parts, strong
anti-vibration
3.Technical Parameters
4.Process flow
5.Applications
Process control fields for the industries such
as petroleum, chemical industry, metallurgy,
electricity, food, papermaking, medicine,
machine manufacturing, scientific
experiment and military aviation etc.
