brief introduction:

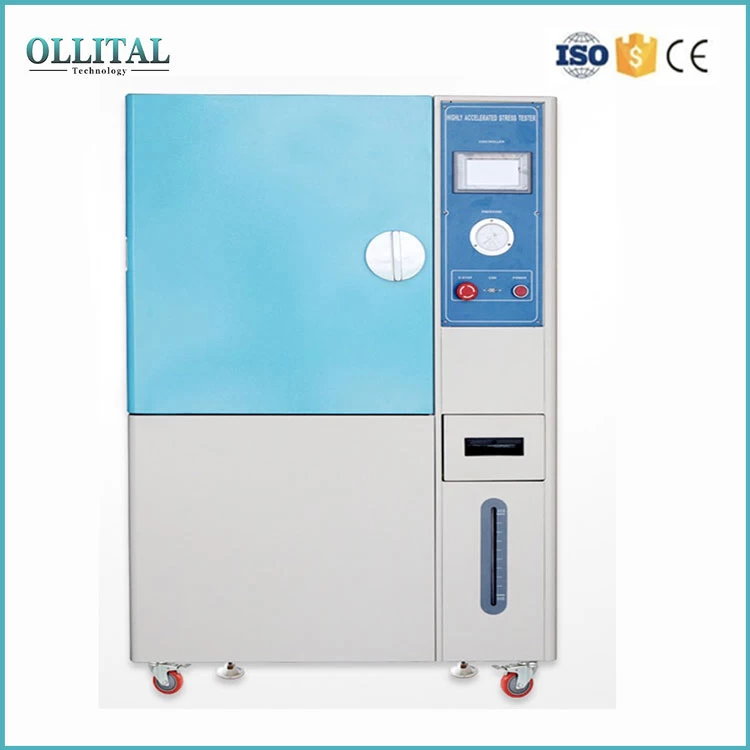

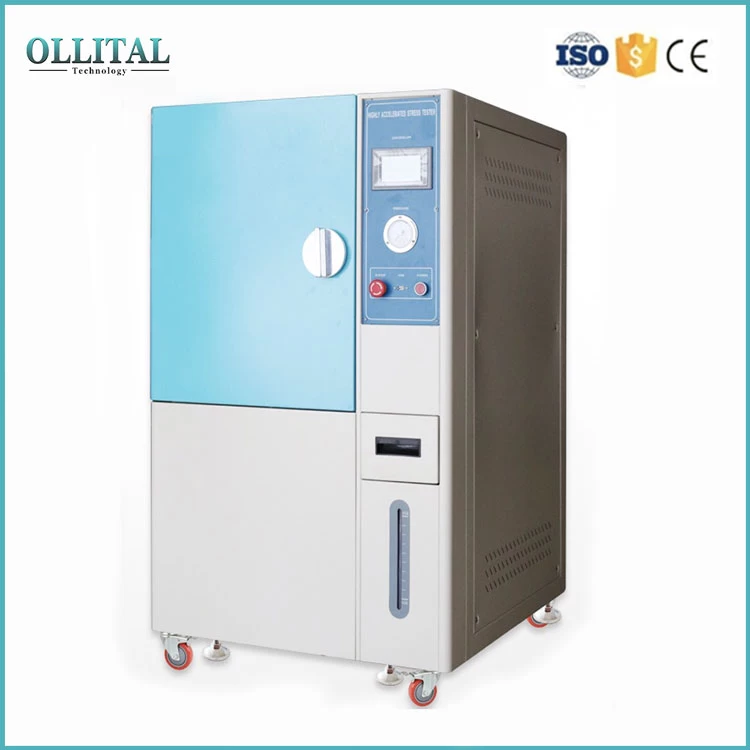

It test the resistance to pressure and air tightness for circuit board, multi-layer circuit board, IC, LCD and magnet iron.This machine is one of the common machine in aging equipment, used to test various types of materials for their performance under the condition of high temperature and high pressure. Application: Quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, metal, plastic, automobile, food, chemical, building materials, medical and aerospace industries.
|
Model
|
OLT-TS-300
|
OLT-TS-400
|
|
Internal Dimension Φ*D(mm)
|
300×500
|
400×550
|
|
External Dimension
W*H*D(mm)
|
800*1360*900
|
900*1460*950
|
|
Steam Temperature Range
|
Heating up time:RT→+ 132℃ about 55min Temperature Range:100℃→+132℃. ( control point )
Temperature fluctuation degree:±0.5℃. Temperature deviation:±2.0℃.
|
|
Humidity range
|
100%R.H Saturated steam
|
|
Steam Pressure
|
0.5~2.0kg/cm2 ( control point ); (3.0Kg/cm2 is special standard)
|
|
Boost time
|
Atmospheric pressure →+ 2kg/cm2 About 60min.
|
|
Humidity uniformity
|
±3.0%.
|
|

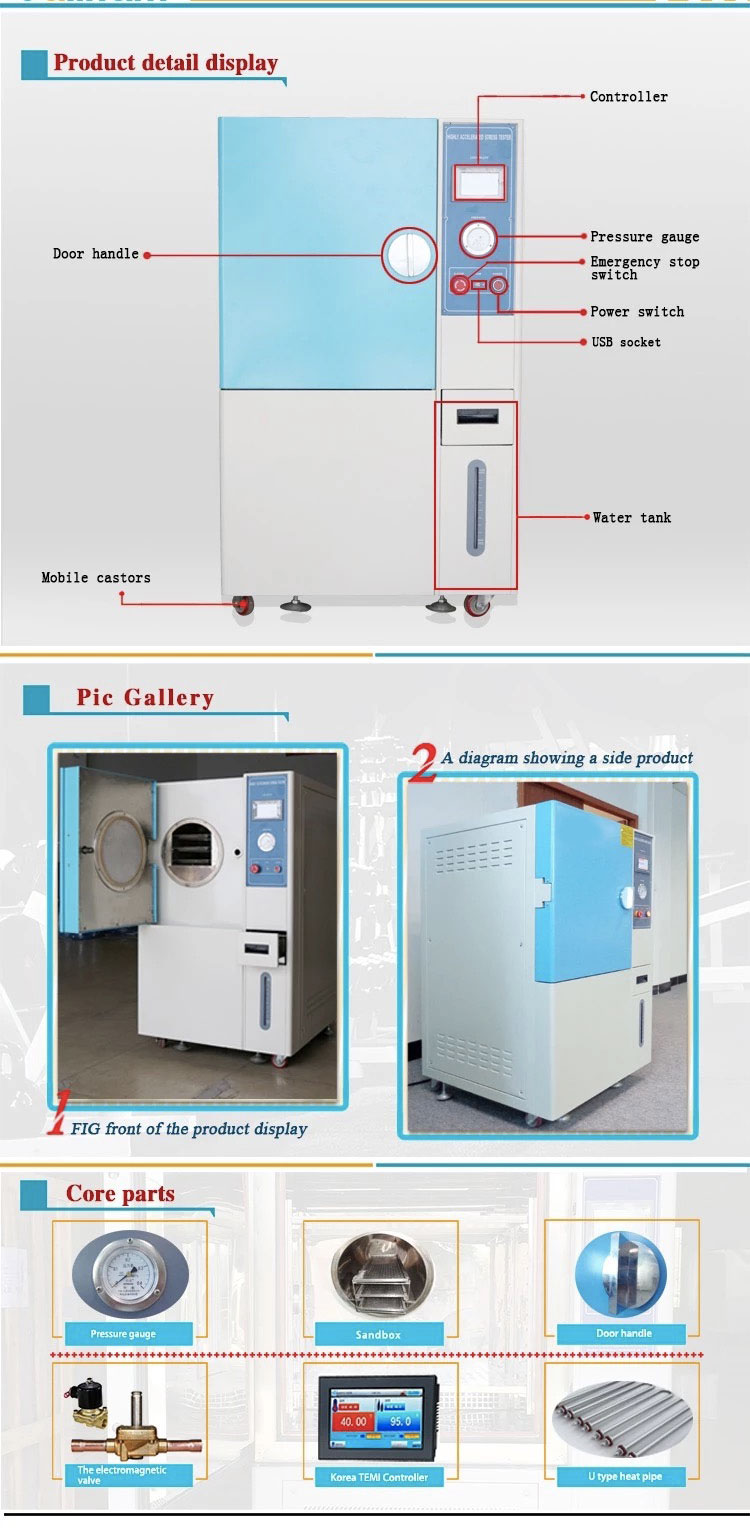

Controller
|
Korea TEMI controller(4.3inch Touch screen programmable controller)
|
|
protection devices
|
Adjustable over temperature protection ; Pressure overpressure protection ; Pressure gauge double protection ; Water shortage protection
|
|

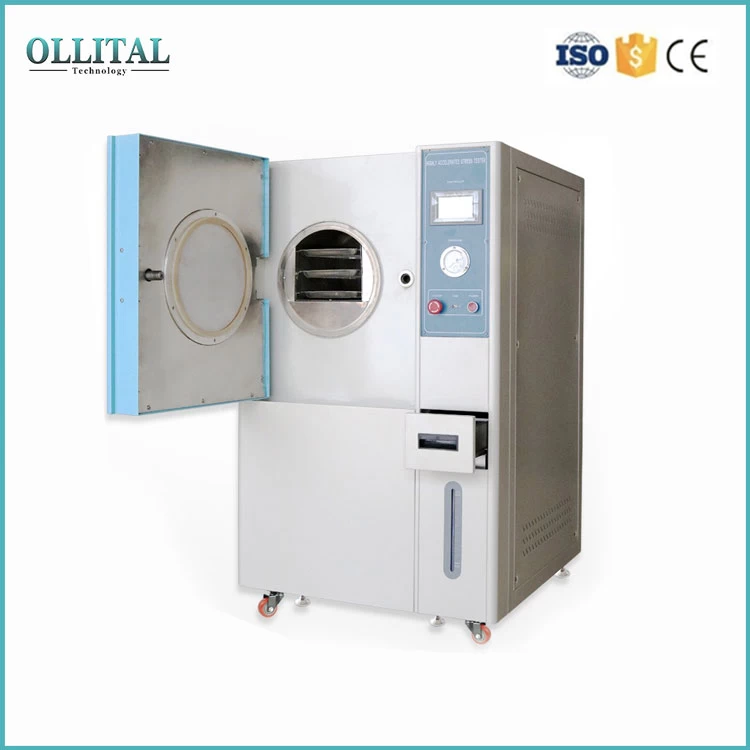

Sample holder
|
Two layers stainless steel plate
|
|
Power(W)
|
3500
|
4500
|
|
Weight (Kg)
|
180
|
250
|
