1.Description

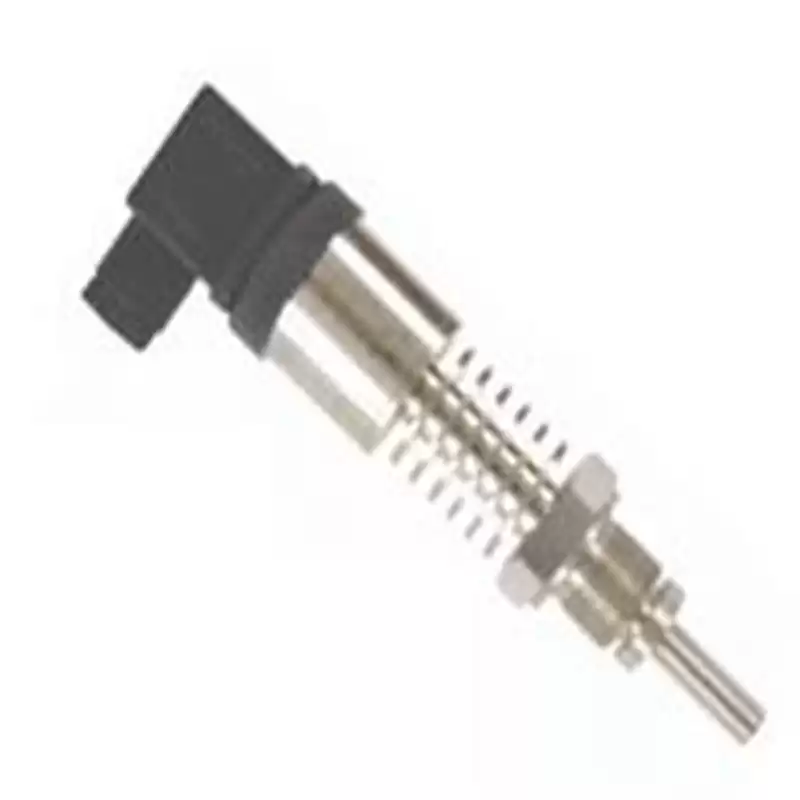

PCT200B Temperature Transmitter with Normal / Movable Connector is a specially designed transmitter for easy installation. It adopts imported high-performance, high-reliability platinum resistance, goes through precise temperature and non-linear compensation, and employs good performance modular signal processing technology to measure and calibrate medium temperature and output industrial control standard signals.
The product shell adopts all-stainless steel integrated processing, featuring small size, fast thermal response, etc. The wire adopts special shielded wire which has a wide temperature range. PCT200B is easy to install and has extremely high vibration resistance and shock resistance.
2.Features
■ Movable connector, easy to install
■ High strength, high pressure resistance
■ Integrated structure
■ Long-term stable work
■ Fast response
■ Reliable structure

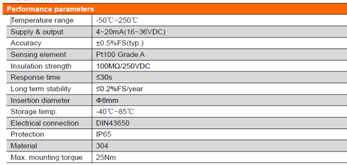

3.Technical Parameters

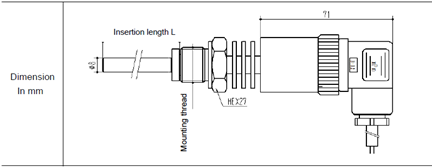

4.Process flow
5.Applications
■ Equipment support
■ Automatic temperature measurement and control systems such as pumps, compressors, natural gas pipelines, etc.
■ Temperature measurement of water or oil in petroleum, chemical, electric power, textile, and environmental protection fields, etc.
