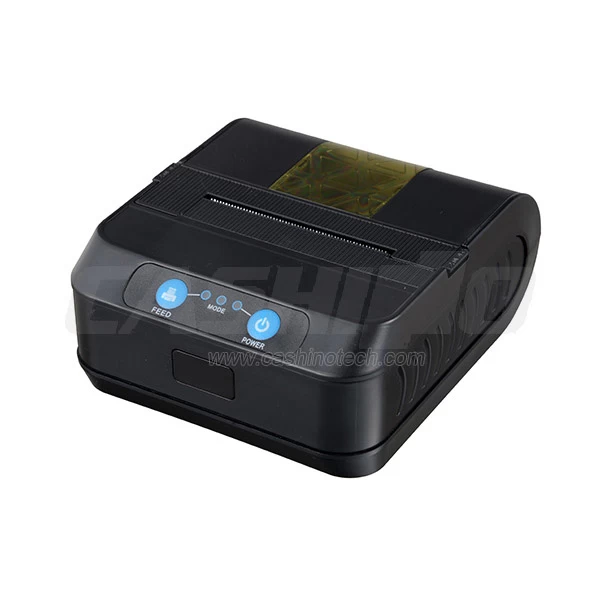

PDM-02 58mm dot matrix mobile bluetooth printer

RS232/USB, Bluetooth interface. For android and windows devices. 2000mAh li-ion battery.



PDM-02 58mm dot matrix mobile bluetooth printer

Brief:

The PDM-02 is a lightweight portable printer, designed especially for those transaction applications where small size, fast printing and dependability while staying in budget are vital. Delivering the key features and communication methods, the PTP-II has the flexibility to meet the unique, industry-specific receipt printing and ease of use required to keep up with the mobile worker’s long and demanding shift.




Key feature & Benefits:

1. Compact design

2. Print carbon copy paper, which can be kept for a long time.

3. 2000mAh li-ion battery - long lasting battery life.

4. With protective case,  can reach 1.2 meter drop resistance. Also easily and comfortably carry the printer.

5. Wired and wireless interfaces: RS232/USB/Bluetooth.




Specification:

Model No.

PDM-02

Print Method

Impact dot-matrix

Print Speed

5.5mm/s 1.2lps

Dot Structure

240dots/mm

Print Width

48mm

Paper Width

57.5±0.5mm

Paper Type

Carbon copy paper

Paper Thickness

0.06-0.085mm

Paper Roll Diameter

Max. 40mm

Black Mark Location

Support

Character Set

ASCII(6x12,9x17,8x16), GBK(24x24)

Print Sequence

English, figure, symbol, Chinese, curve, graph,

icon 24columns:144dots/line;40 columns:240 dots/line

Interface

RS232/USB+Bluetooth

Power supply

Battery: DC7.4V/2000mAh Rechargeable Li-ion battery

Adapter: DC 12V,0.8A

Print Length for once: 15m(25%print density)18m(12.5% print density)

Dimension (WxLxH)

112x99x46mm

Weight

345g(with battery)

Accessories

Standard accessories: Li-ion battery, AC adapter, USB cable, paper roll, user manual

Optional accessories: Serial cable/CD/Car charger/Protective Case


Applications:

1. Food--Animal trace ability, Food safety

2. Meter Reading--Utilities charge

3. Insurance--Quick decide damage in car insurance field

4. Storage--Stock-taking,allocated and transfers in and out stock

5. Parking fee--Confirm the parking fee then charge

6. Logistics--Express transporation invoice,cargo delivery order

7. Mobile POS--Bus ticket;FMCG fast-moving consumer goods





Company Information:

Xiamen Cashino Technology Co., Ltd. is a professional manufacturer of thermal printers since 2011, with the ISO9001, CE, Rohs and FCC certificates passed. We have a wealth of in dependent research and experience, which can effectively meet different customers ODM requirements and help achieve printing simply, efficiently and economically. Currently, Our products are exported to Southeast Asia, South Asia, South & North America, Middle East and Europe, etc.

mobile printer




Certificates:

portable printer



Our services:

portable bluetooth printer



FAQ:

Q: About samples

A: Samples are available for testing.

Q: Delivery date.

A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order

delivery date approximately 2 weeks.

Q: Payment terms

A: Paypal, western union, T/T in advance, or order in aliexpress.

Q: Warranty

A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be

responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with

reasonable price to the customer.
