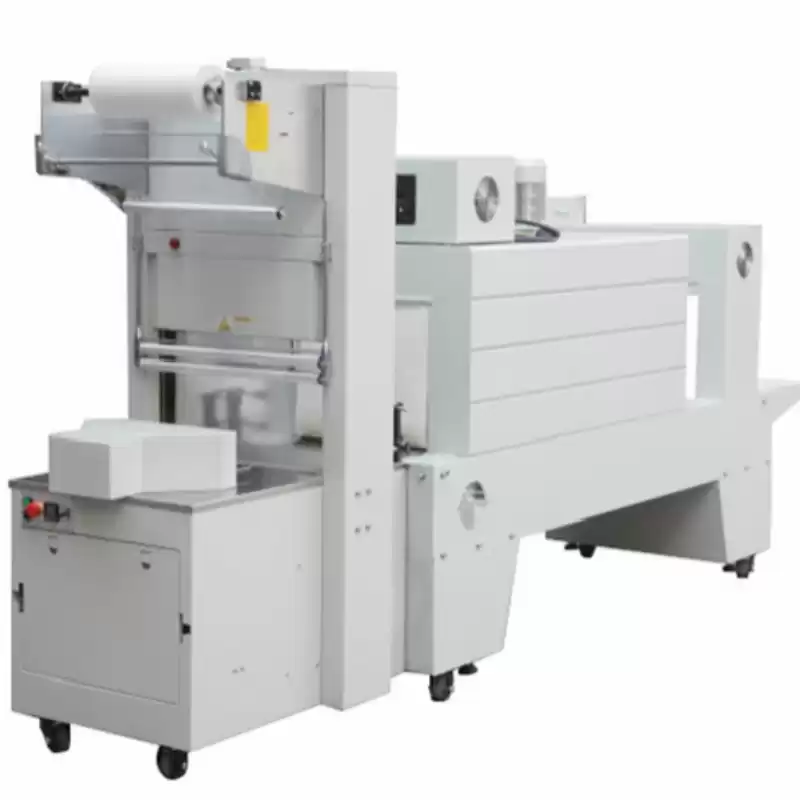

PE film shrink packaging machine with shrink tunnel
Customized And OEM Service Available
Summary:
MZH-A series Jet PE film shrink packaging machine is designed especially for PE shrink film. However it is suitable for other types shrink films.
Characteristic:
◇ Upper and down electromagnetic switch prevent sealing mistakes, and protect operator.
◇ Every simply and easy to adjust machine to match different packing size.
◇ Simple operation and maintenance with high packing efficiency.
◇ Automatic alarm security system protects machine and operator.
◇ Large power conveyer motor, with step-less speed regulating, ensures smooth feeding.
◇ Two large power fans make the temperature of shrink tunnel every even and stable, this ensures the excellent effect of shrinking in one time.
◇ Super cooling system cools the packing and makes the figuration perfectly.
Specification：
|
Model
|
MZH-5038B(Pneumatic)
|
|
Power supply
|
220-240V50-60Hz;1.8KW
|
|
Capacity
|
0-6 packs/min
|
|
Sealing time/shrink time
|
0.5-1.5s,0-0.6s
|
|
Conveyor loading
|
30kg
|
|
Film thickness
|
0.03-0.25mm
|
|
Max. packing dimension(L*W*H)
|
450 x 270 x 350mm
|
|
Min. packing dimension(L*W*H)
|
250 x 60 x 60mm
|
|
Machine size(L*W*H)
|
1020 x 830 x 1980mm
|
|
Weight
|
225kgs
|
|
Shrink film
|
PE
|
