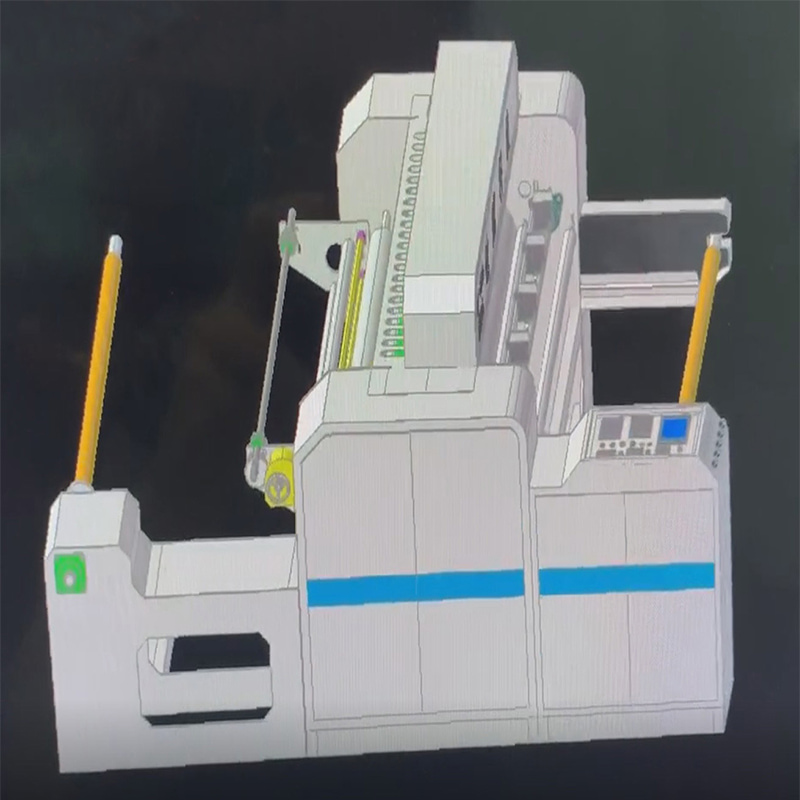

New design in 2023
Machine Characteristics

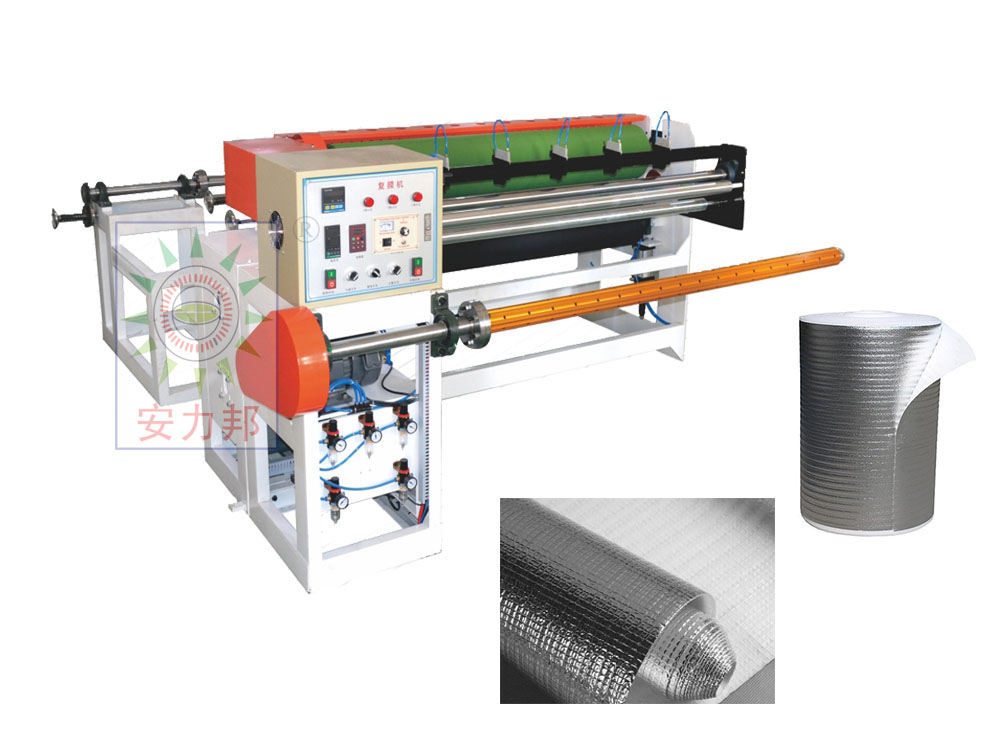

- The Single side laminating machine is generally used to heat cover EPE foam roll with a layer of plastic film.
- At the same time, the machine is suitable for Pe film, AL film, kraft paper or other roll materials, and it has embossing function.
- The machine adopts high temperature oil electric heating mode, and with pneumatic disc cutters.
Technical Parameters
| Model |
Voltage |
Speed（Second) |
Laminating Width（mm) |
Laminatling Thickness（mm) |
| 1750 |
380V |
1-1.5M/S |
1600 |
0.5-3mm |
| 2000 |
380V |
1-1.5M/S |
1800 |
0.5-3mm |
| 2200 |
380V |
1-1.5M/S |
2000 |
0.5-3mm |
| 2500 |
380V |
1-1.5M/S |
2300 |
0.5-3mm |
Details Show

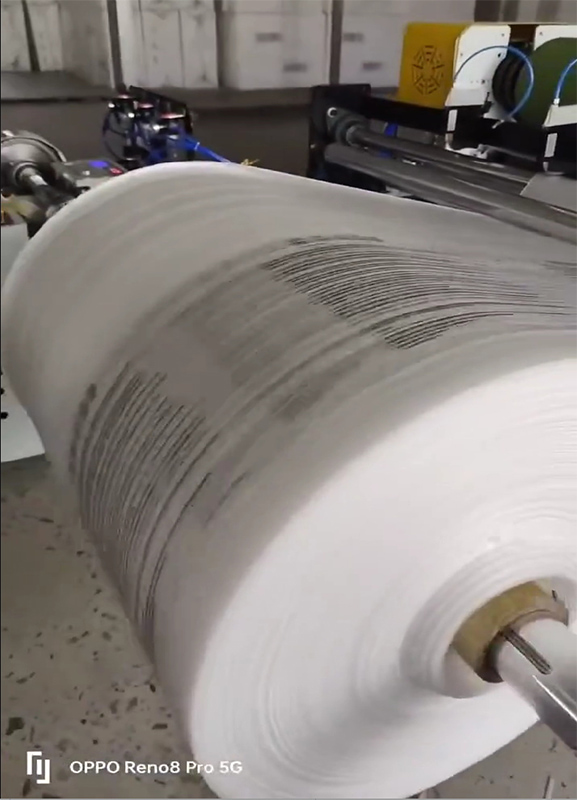

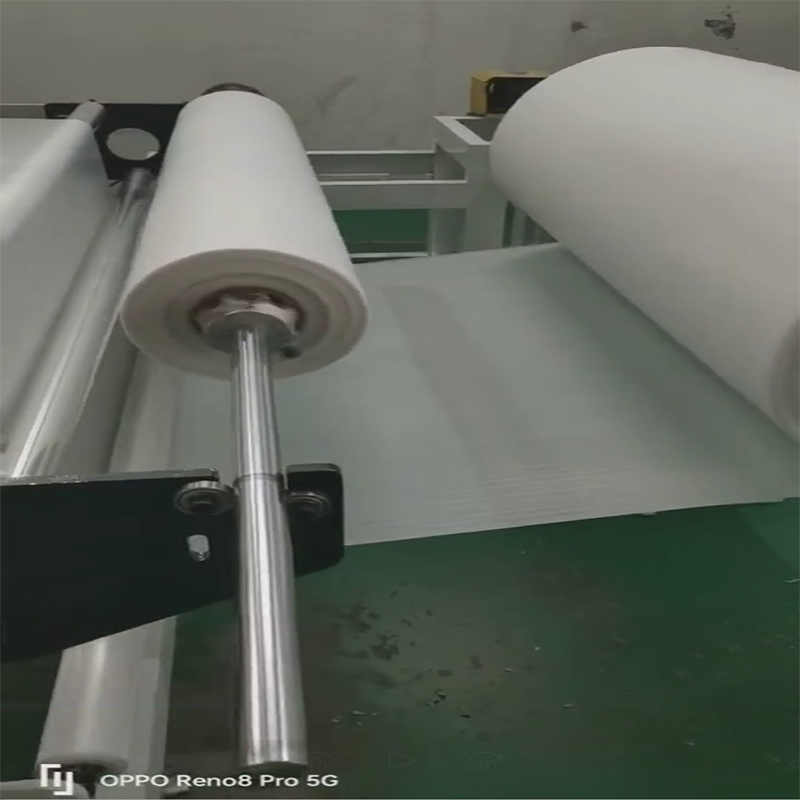

2 rolls of Material feeding

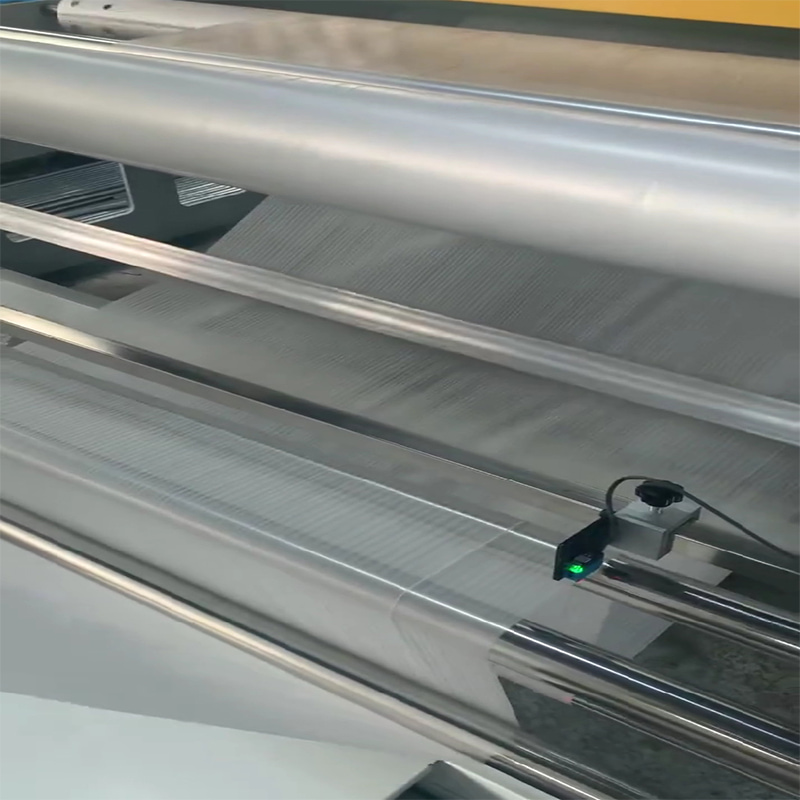

Photocell sensor device for edge correcting

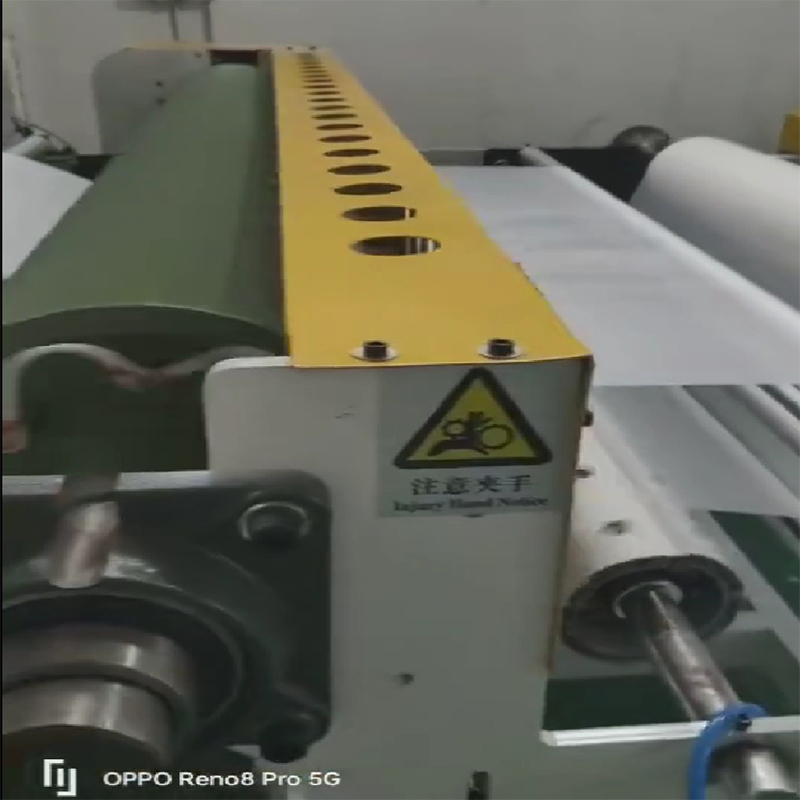

Two Heat Laminating rollers

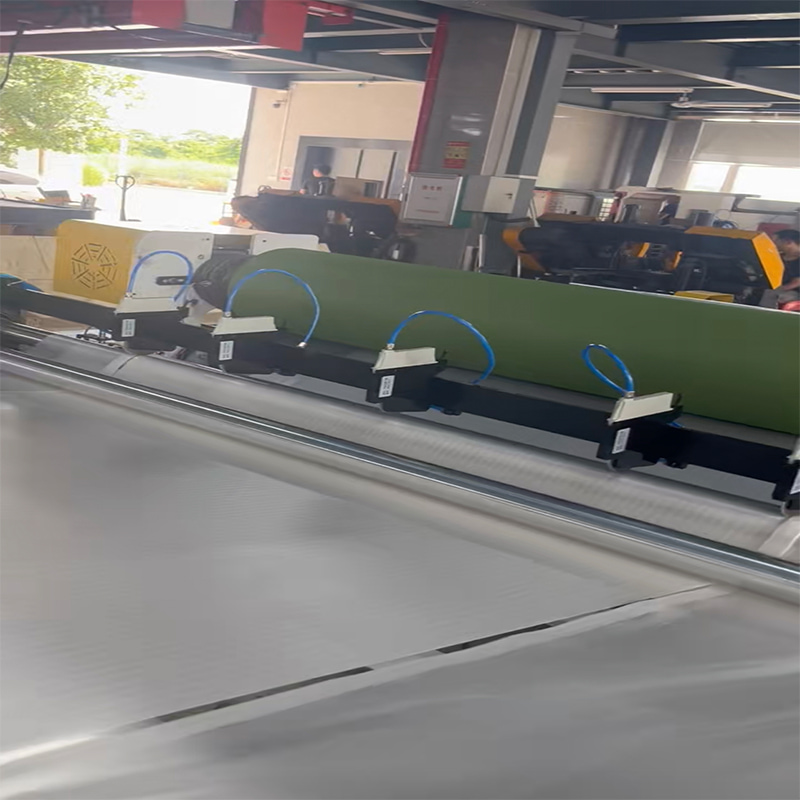

Adopts with pneumatic disc cutters for lengthwise slitting of materials

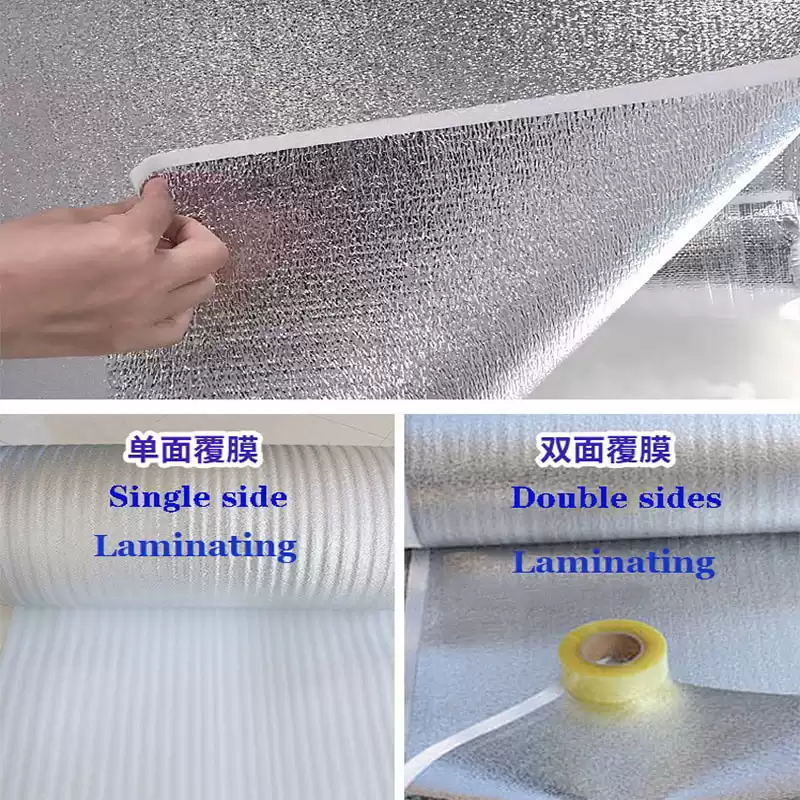

Finished Laminated EPE Foam Roll
