PE mailer bag making machine

High speed Mulching Film Punching Machine, Easy operating, Intelligent and Efficient, Hole spacing and Hold diameter are freely adjustable. hole spacing and aperture are freely adjustable, with Waste recycling.

Facebook Twitter Pinterest LinkedIn 分享

Machine Characteristics & Technical Parameters

  1. the whole machine adopts microcomputer control, (optional servo motor control system)
  2. fixes the length at random, and has accurate and stable step size photoelectric tracking, automatic stop when losing the printing mark.
  3. automatic synchronization applying bag sealing tape, automatic make hole punching.

  4. automatic bag counting and it can be set counting alarm.

  5. hot sealing pattern edge, automatic constant temperature, sealing firm & smooth.

Technical Parameters

Item Model
XBL-PE500 XBL-PE800
Max width of base material 500mm 800mm
Max cutting length 50-800mm 50-800mm
Max bag making width 480mm 780mm
Production capacity 40-200pcs/min 40-200pcs/min
Power 3.6kw 6kw
Weight of Machine 900kgs 1400kgs
Overall demensions 3500x1100x1800mm 6500x1200x1800mm

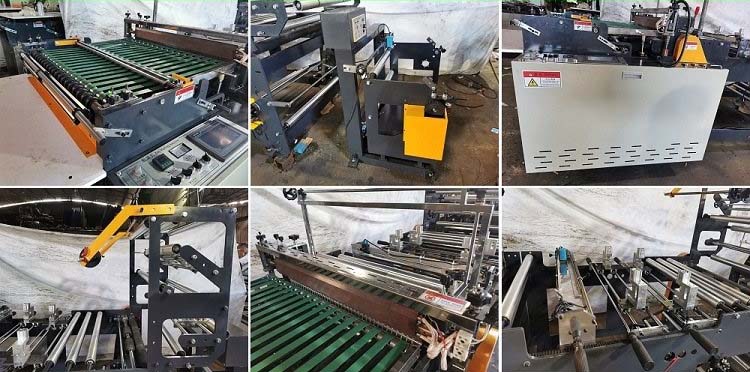

Details Show
