PE PP Twin Screw Plastic Extruder Production Line
Machine Model: SHJ-65A/SHJ-65B/SHJ-65C/SHJ-65D/SHJ-65G
[C/D/G type is for high torque-high speed gearbox.]
HS CODE: 8477.2010.00
The machine is for regular plastic modifiction granules making.
Our machine can process the following materials:
|
Process
|
Representative materials
|
|
Mixing nature-changing
|
PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA +Silicon rubber, etc.
|
|
PE,PA,PC,CPE+ABS(alloy),PBT+PET,PP+ PE etc.
|
|
Filling nature-changing
|
PE,PP,EVA, etc.+ Calcium carbonate, talcum powder, titanic powder
ABS,PC,PS, etc.+ aluminum hydroxide, magnesium hydroxide, antimony oxide.
|
|
PP,PA,ABS +ferrous powder, sulphuric powder ceramic powder
|
|
Functional machine pellets
|
PP,PA,ABS,PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets
|
|
PE,PP,PS, etc+ starch: de-composing machine pellets
|
|
PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets
|
|
PE,EVA=ABS etc+ carbon black: black machine pellets
|
|
Colored machine pellets
|
PE,PP,ABS,AS,PA,EVA,PET +pigment and auxiliary
|
|
Intensified glass fibers and carbon fibers
|
PP,PBT,ABS,AS,PA,PC,POM,PPS,PET etc.+ long fibers, small fibers, carbon fibers, crystals and so on, etc.
|
|
Various cables
|
HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP, etc. insulating cables,coatings,
PE peroxide silicon alkyl crossing cables: radialization crossing cables
|
|
Special materials
|
EVA heat-melting glue, polyurethane, fluorine rubber, fluorine plastics, PP cigarette filtering material and TPR sole material
|
|
Reaction extruding
|
Poly-amide condensate, poly-amide melting polymerization, poly-amide polythene-adding, poly-carbonate condensate, etc.
|
|
Exhausting and volatilization
|
Polystyrene oxide, high-absorbing resin, chlorine sulphur polyethylene
|
|
Powder paint
|
Polyester, ring oxide, lactide, polyurethane, acrylate
|

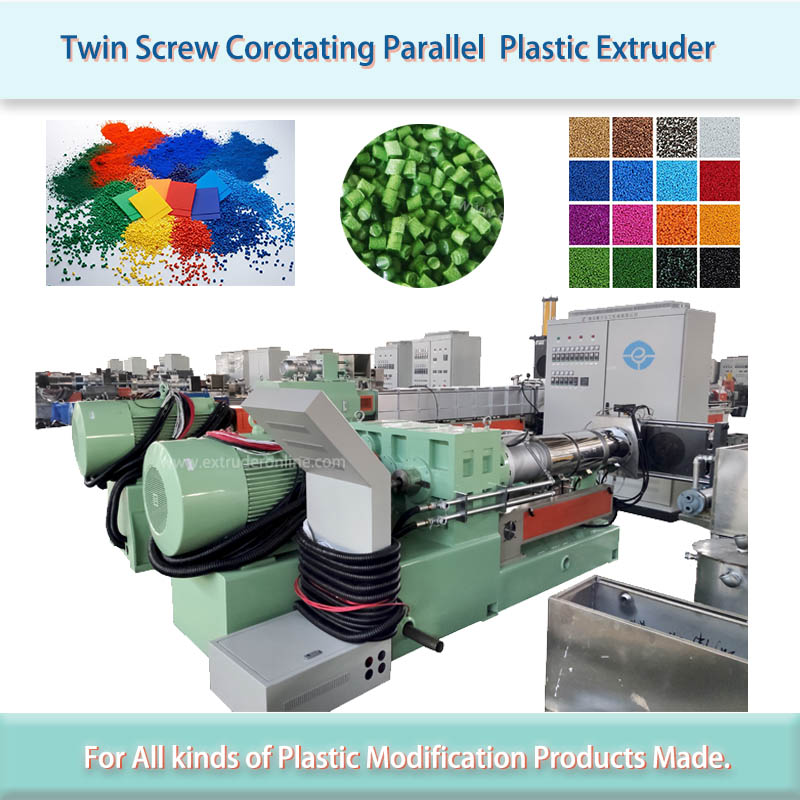

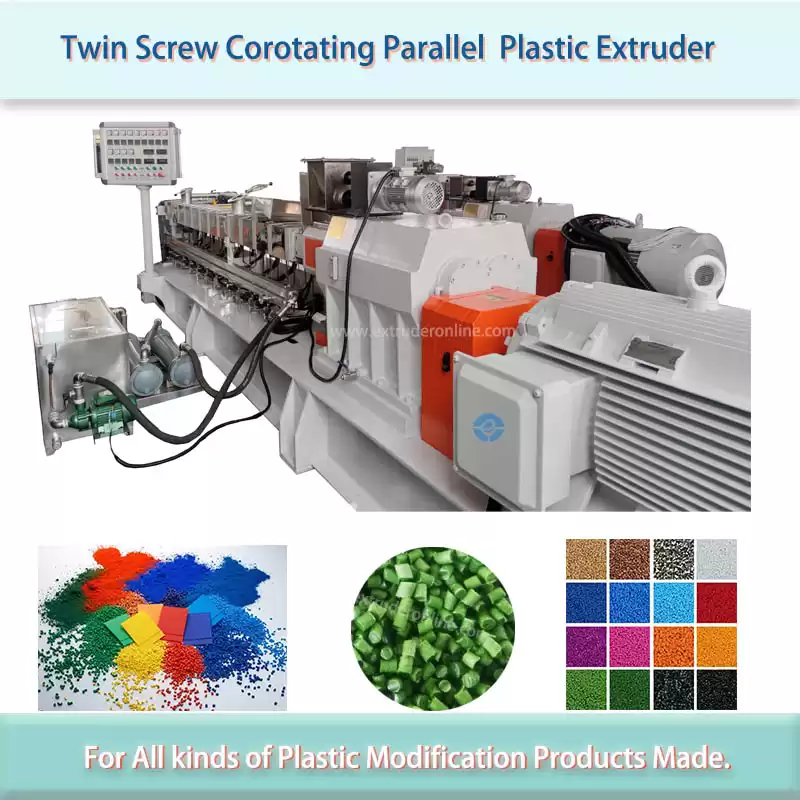

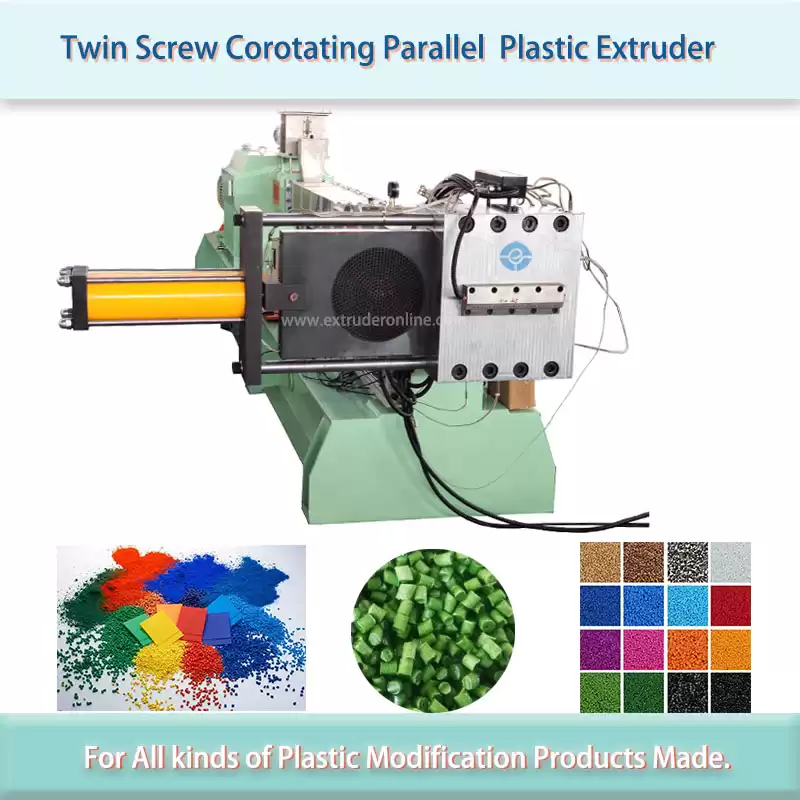

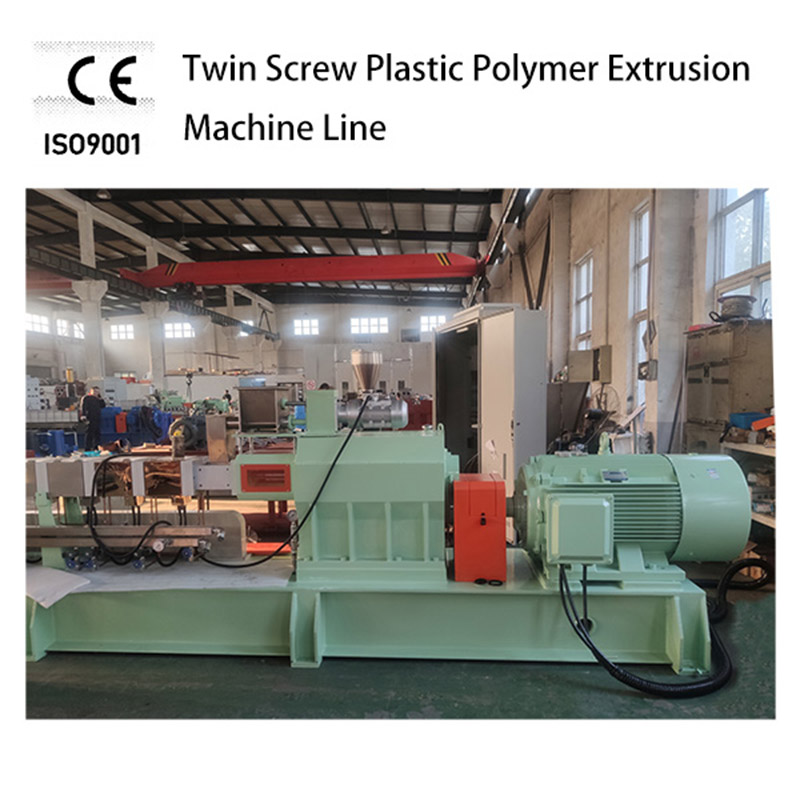

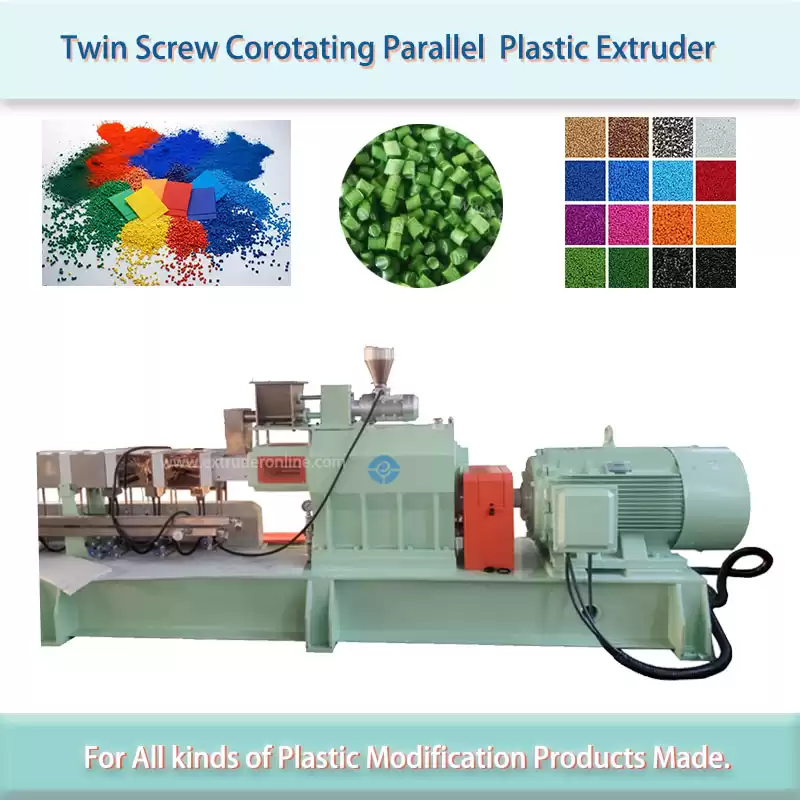

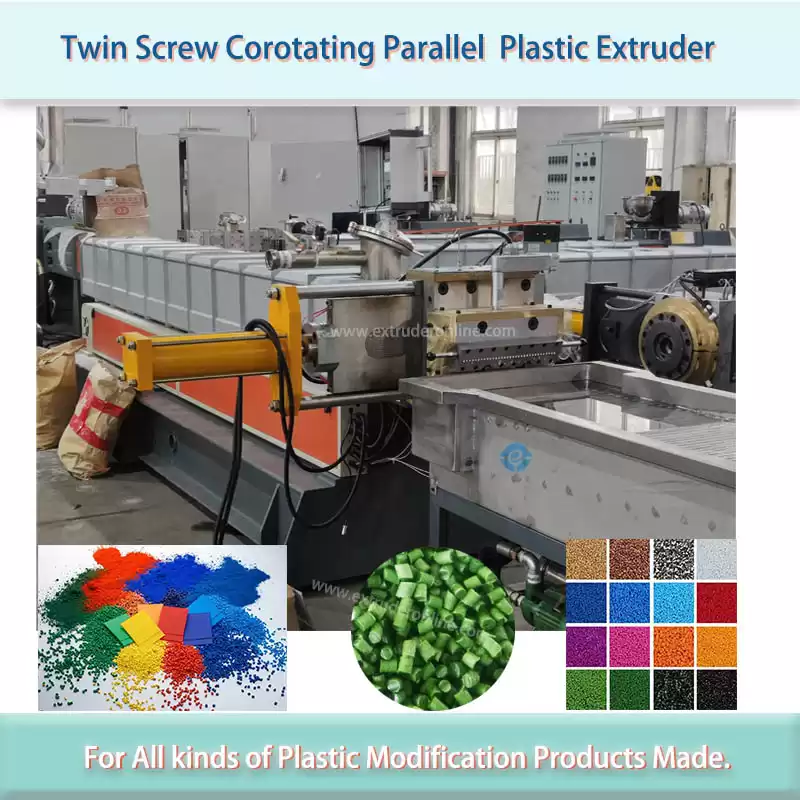

Co-rotating Parallel Twin Screw Plastic Polymer Extruder make Thermoplastic Elastomer SHJ Series
This SHJ-65 Twin Screw Plastic Polymer Extruder is for wild usage, not only for engineer granules making, but also for single color(white, black, red or other single color large output capacity orders.) master batch, functional granules(anti-static, anti-flame, fire retared, anti-UV，anti-aging granules.) production. If you need to produce the sheet or panel, then just change the die-head when you place the order to us or equipped extra die-head and other auxiliary equipments ( Auxiliary machine, like three rollers calander, dragging machine and others.)

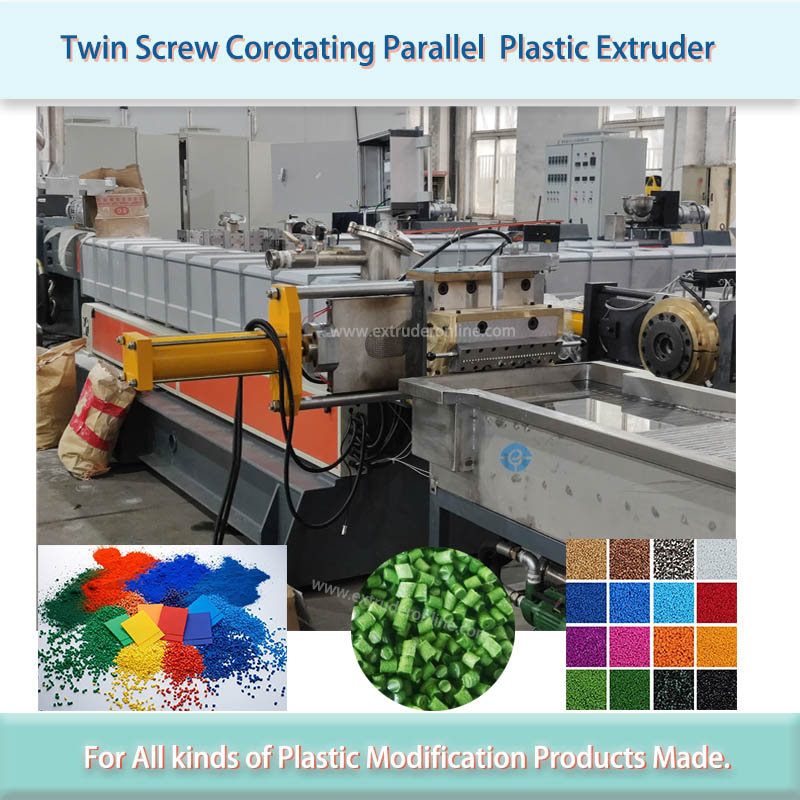

Rough configuration of strands bathing water cooled pelletizing system is as follows:
[SHJ***C/D/G type is for high torque-high speed gearbox.]
L/D ratio：40：1 (could be from 32 to 60, it's according to the users' detailed request and carrier used.)
Screw Dia.: 62.4mm
Barrel hole Dia.: 63mm
Whole hardness: 62-64
Screw Speed: 400/500/600 rpm
Motor power: 75Kw, Wannan or Siemens-beide brand;
Machine line includs HOST, Power cabinet, water trough, air knife, pelletizer and some spare parts.
Production Standard: Export Standard
Packaes & transportation:
1) FCL: Metal frame on the bottom for transportation by lift when loading or unloading into/from the container to workshop; wrap film cover whole machine and parts; if it has meter or PLC outside, then will pack it carefully avoide crush.
2) LCL: Wooden case for package, but we will charge the packing cost to the clients.
Quality Guarantee: 1 year from B/L issued date, except quick-ware parts (like segments, heaters, shafts, sensor and Etc., we will list them on delivery packing list; We will collect the cost of the replace parts if the problem by man-made damage.
Installation and debugging charges: will be collected, please ask for our clerks in overseas markets department.
Documents presentation： B/L, INVOICE, PACKINGLIST, C/O and Insurance policy (If CIF terms);
We also can present the following different mode of plastic extruders, the Technical Parameter is as follows:
|
Model
(A/B/C/D/G)
|
Screw Dia.
(mm)
|
Screw Rotary
Speed (rpm)
|
Motor Power
(kw)
|
L/D
|
Output Capacity
(kg/h)
|
|
SHJ-20
|
21.7
|
600
|
4
|
32-60
|
0.5-15
|
|

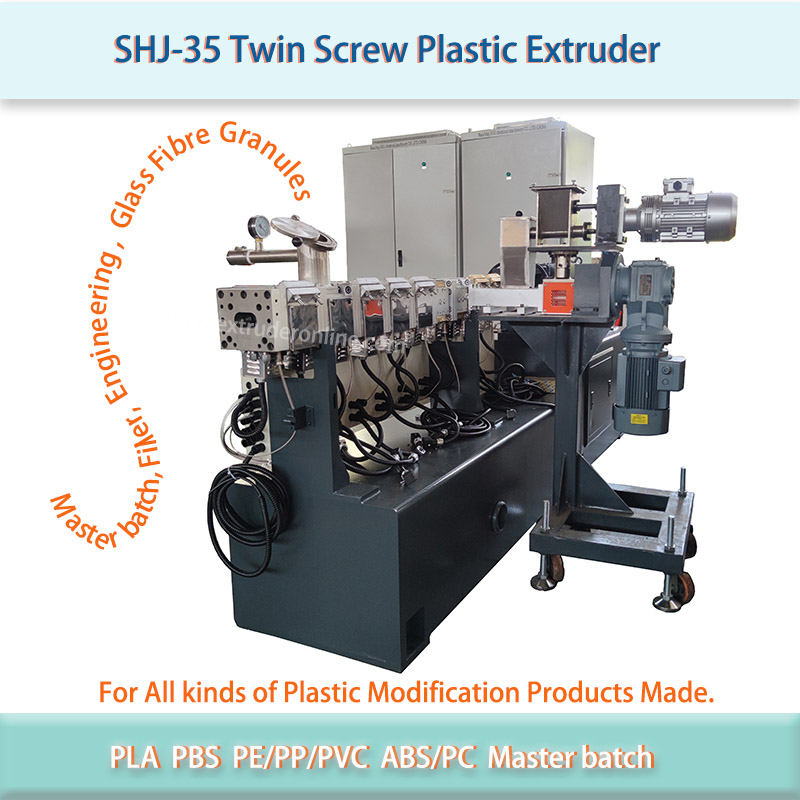

SHJ-35
|
35.6
|
500
|
11-15
|
32-60
|
15-40
|
|
SHJ-50
|
50.5
|
500
|
45/55/75
|
32-60
|
135-225
|
|
SHJ-65
|
62.4
|
500/600
|
55-75-90
|
32-60
|
25-375
|
|
SHJ-75
|
71.0
|
500-600
|
90/110/132
|
32-60
|
330-550
|
|
SHJ-95
|
93.0
|
400-500
|
250/315
|
32-60
|
750-1250
|
