Product Introduction

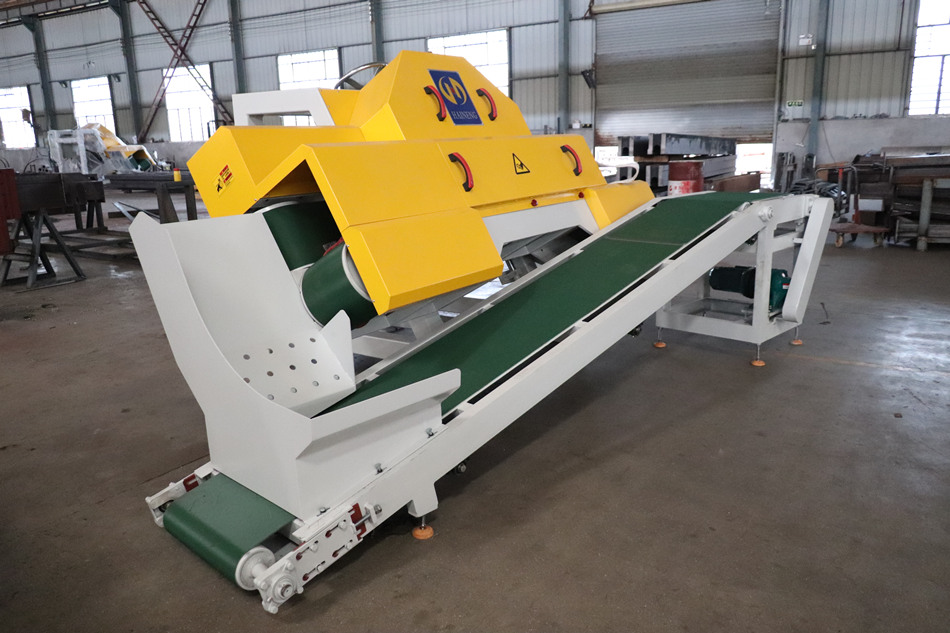

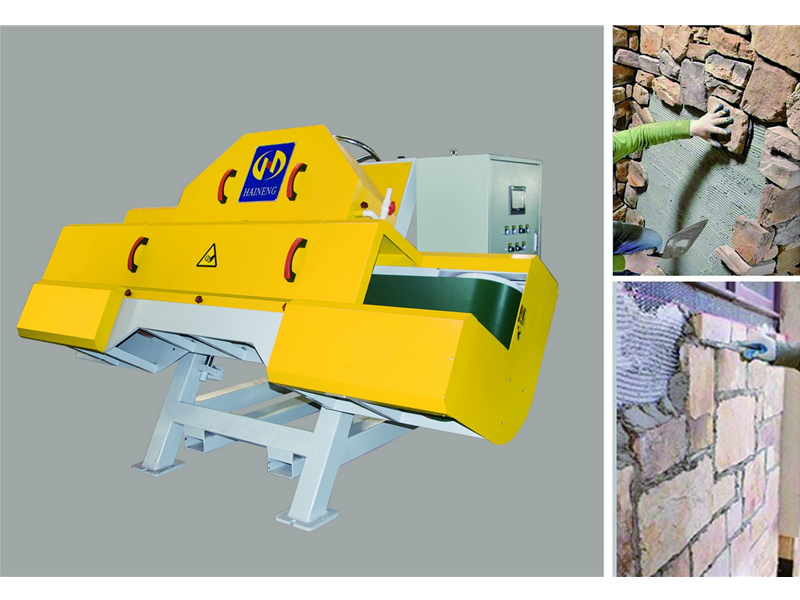

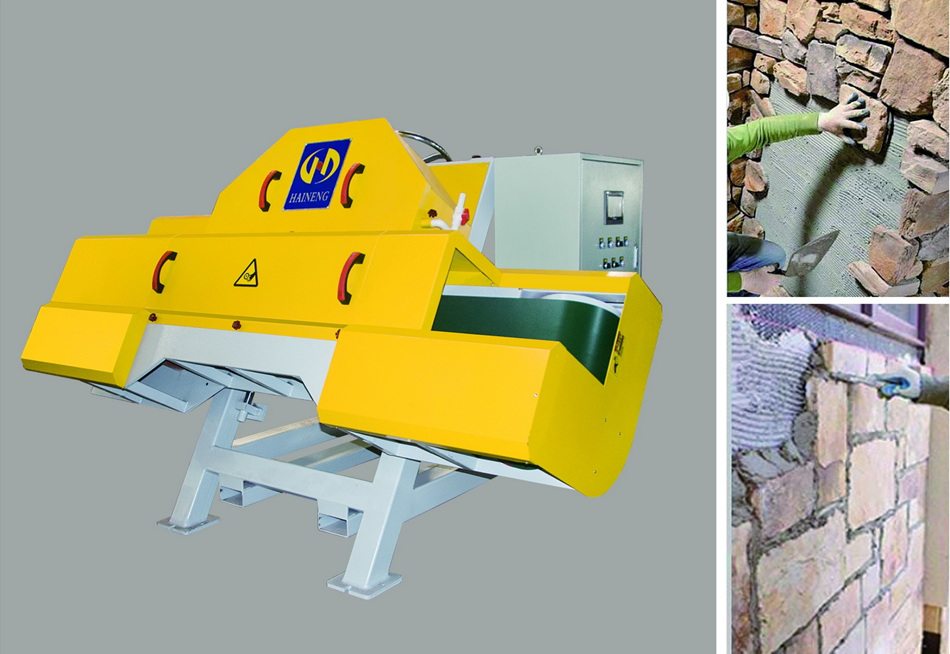

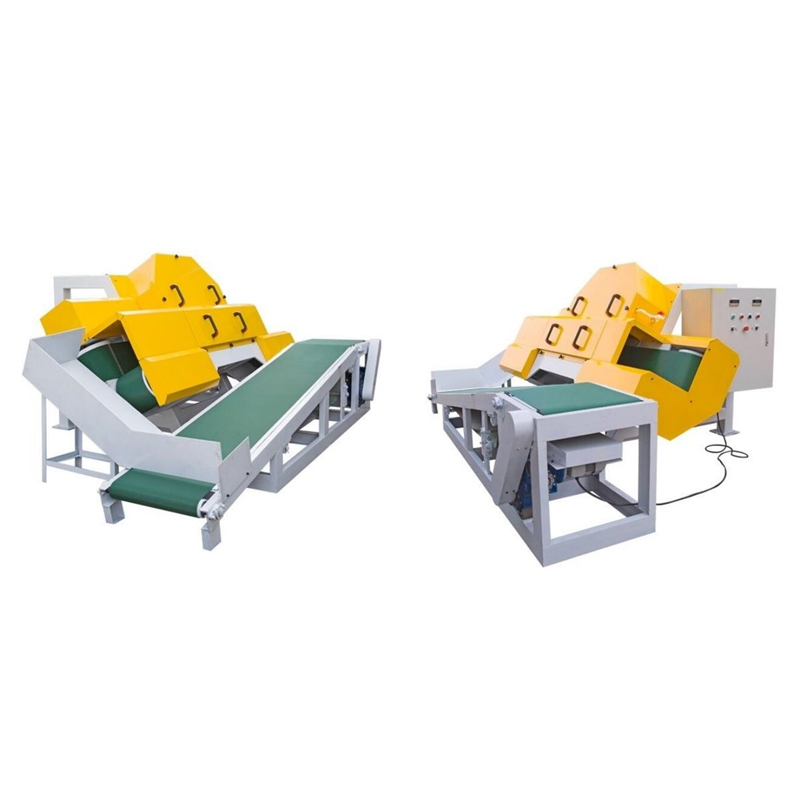

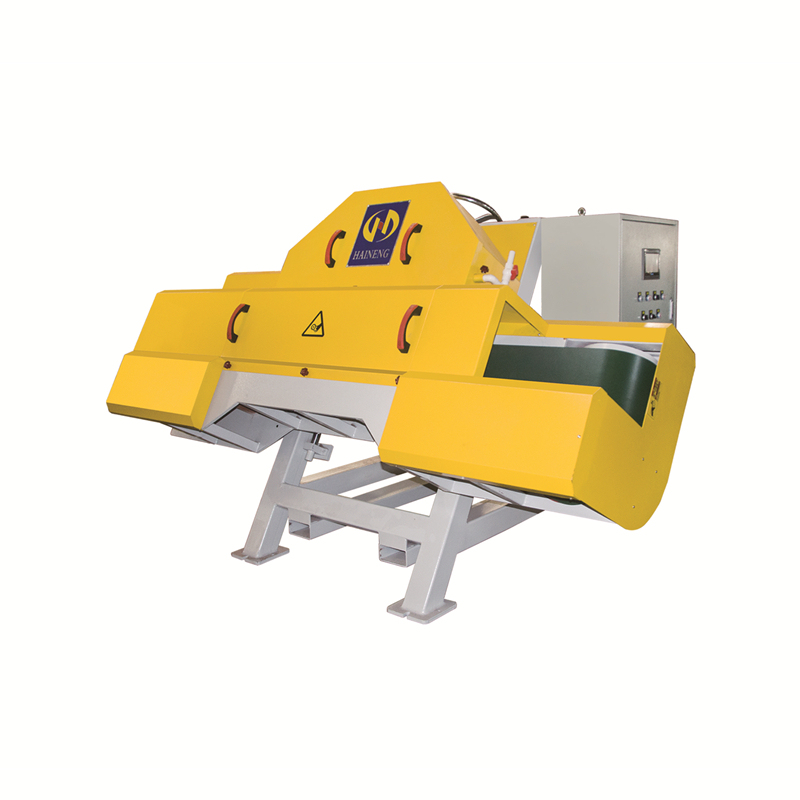

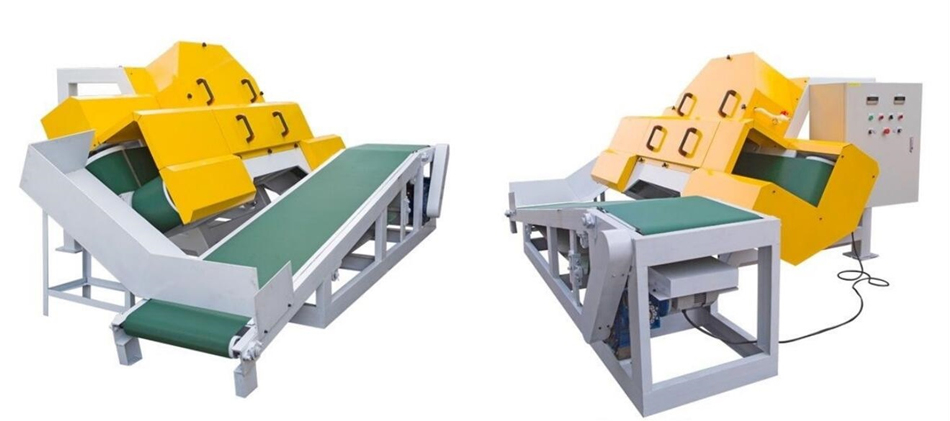

Pebble Cutter Machine is an integral structure, compact structure, easy to install and transport.
The main control components are international brand components, cutting the main motor and cutting conveyor belt are stepless speed regulation.

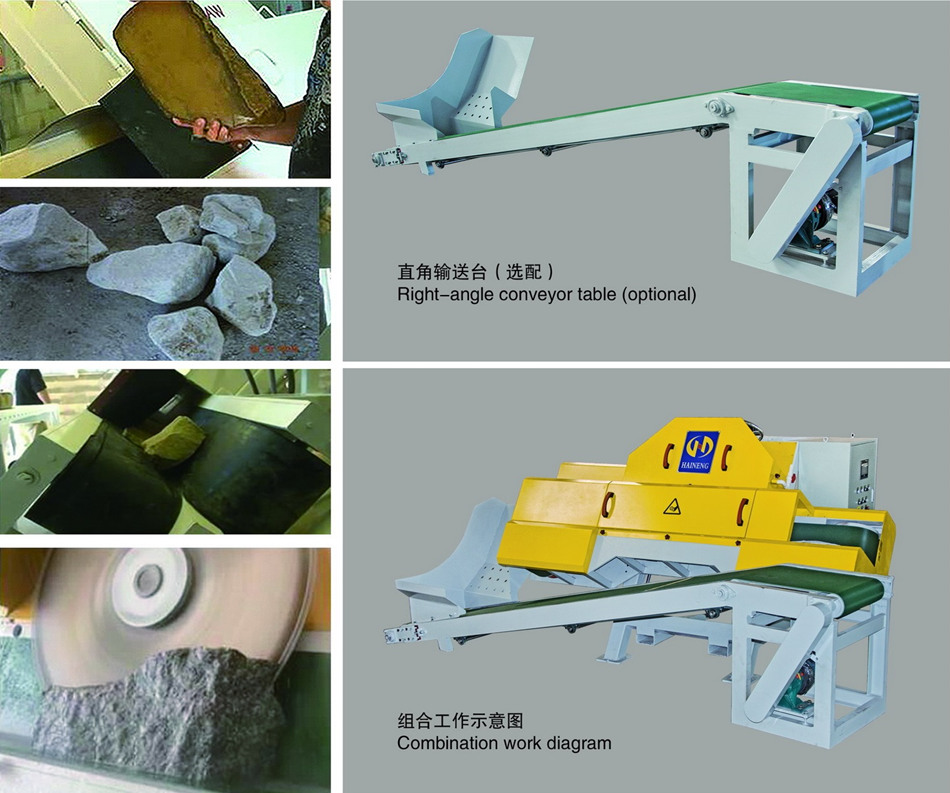

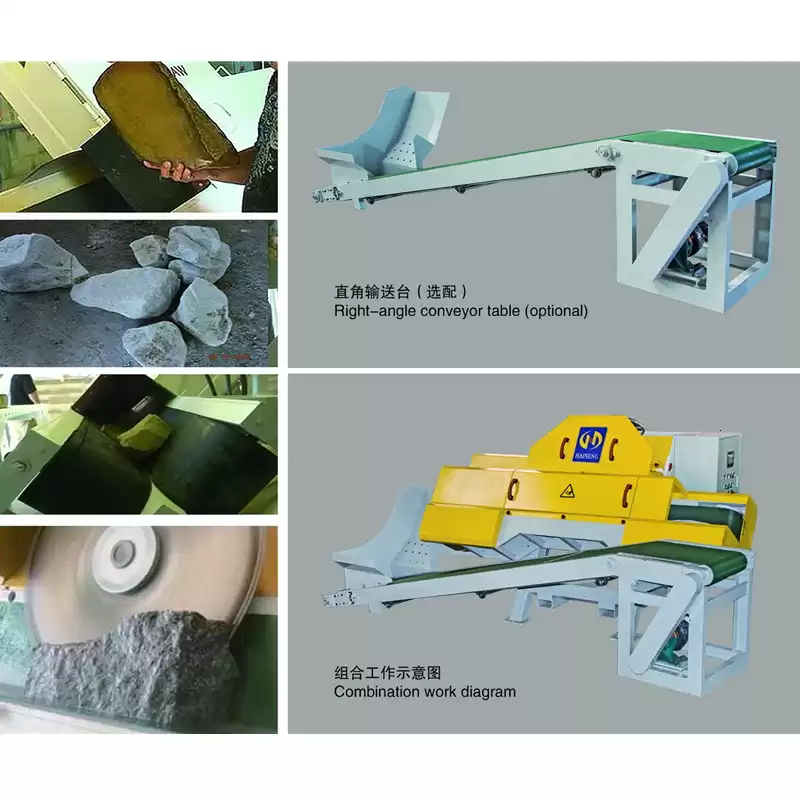

The working mode of this machine adopts the continuous cutting mode of assembly line, which is mainly used for cutting the plane of irregular elliptical stones such as cobblestone and raw stone.
Technical Parameters
|
Pebble Cutter Machine
|
|
Type
|
unit
|
ZQ-1000/22
|
ZQ-1200/45
|
|
Max. Blade diameter
|
mm
|
Φ800-Φ1000
|
Φ1000-Φ1200
|
|
Max. Cuttingthickness
|
rpm
|
380
|
480
|
|
Max. Cuttingwidth
|
mm
|
380
|
480
|
|
Main motor power
|
kw
|
22
|
45
|
|
Total power
|
kw
|
22.75
|
45.75
|
|
Water consumption
|
m³/h
|
4
|
4
|
|
Dimension (L×W×H)
|
mm
|
2850×1950×1750
|
3300×2200×2200
|
|
Total weight
|
kg
|
2200
|
3100
|
