Pedestal Base Pillow BLock Bearing Units UCPH2

UCPH Standard duty,Wider inner ring bearing,Setscrew locking

,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.


Facebook Twitter Pinterest LinkedIn 分享

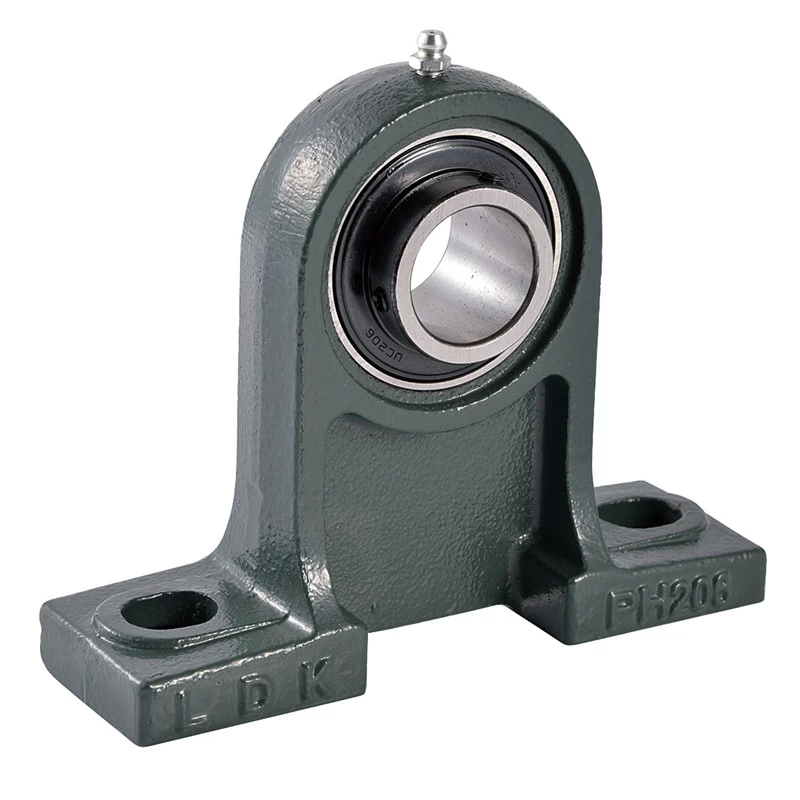

Pedestal Base Pillow Block Bearing Units UCPH209

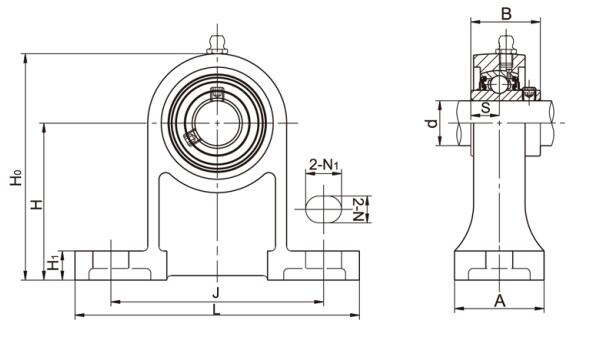

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight (kg)
d H L J A N N1 H1 Ho B s
(in) (mm)
UCPH201  12 70 127 95 40 13 19 15 101 31 12.7 M10 0.96
UCPH201-8 1/2   70 127 95 40 13 19 15 101 31 12.7 M10 0.96
UCPH202  15 70 127 95 40 13 19 15 101 31 12.7 M10 0.96
UCPH202-9  9/16   70 127 95 40 13 19 15 101 31 12.7 M10 0.96
UCPH202-10 5/8   70 127 95 40 13 19 15 101 31 12.7 M10 0.96
UCPH203  17 70 127 95 40 13 19 15 101 31 12.7 M10 0.96
UCPH203-11 11/16   70 127 95 40 13 19 15 101 31 12.7 M10 0.96
UCPH204 20 70 127 95 40 13 19 15 101 31 12.7 M10 0.96
 UCPH204-12 3/4   70 127 95 40 13 19 15 101 31 12.7 M10 0.96
UCPH205  25 80 140 105 50 13 19 16 114 34.1 14.3 M10 1.20
UCPH205-14  7/8    80 140 105 50 13 19 16 114 34.1 14.3 M10 1.20
UCPH205-15  15/16    80 140 105 50 13 19 16 114 34.1 14.3 M10 1.20
UCPH205-16 1   80 140 105 50 13 19 16 114 34.1 14.3 M10 1.20
UCPH206  30 90 165 121 50 17 21 18 130 38.1 15.9 M14 1.60
UCPH206-17  1-1/16    90 165 121 50 17 21 18 130 38.1 15.9 M14 1.60
UCPH206-18  1-1/8    90 165 121 50 17 21 18 130 38.1 15.9 M14 1.60
UCPH206-19  1-3/16    90 165 121 50 17 21 18 130 38.1 15.9 M14 1.60
UCPH206-20 1-1/4   90 165 121 50 17 21 18 130 38.1 15.9 M14 1.60
UCPH207  35 95 167 127 60 17 21 19 140 42.9 17.5 M14 2.10
UCPH207-20  1-1/4    95 167 127 60 17 21 19 140 42.9 17.5 M14 2.10
UCPH207-21  1-5/16    95 167 127 60 17 21 19 140 42.9 17.5 M14 2.10
UCPH207-22  1-3/8    95 167 127 60 17 21 19 140 42.9 17.5 M14 2.10
UCPH207-23 1-7/16   95 167 127 60 17 21 19 140 42.9 17.5 M14 2.10
UCPH208  40 100 178 137 70 17 21 20 150 49.2 19.0 M14 2.70
UCPH208-24  1-1/2    100 178 137 70 17 21 20 150 49.2 19.0 M14 2.70
UCPH208-25 1-9/16   100 178 137 70 17 21 20 150 49.2 19.0 M14 2.70
UCPH209  45 105 190 146 70 17 21 20 158 49.2 19.0 M14 3.10
UCPH209-26  1-5/8    105 190 146 70 17 21 20 158 49.2 19.0 M14 3.10
UCPH209-27  1-11/16    105 190 146 70 17 21 20 158 49.2 19.0 M14 3.10
UCPH209-28 1-3/4   105 190 146 70 17 21 20 158 49.2 19.0 M14 3.10
UCPH210  50 110 206 159 70 20 23 22 165 51.6 19.0 M16 3.50
UCPH210-30  1-7/8   110 206 159 70 20 23 22 165 51.6 19.0 M16 3.50
UCPH210-31  1-15/16   110 206 159 70 20 23 22 165 51.6 19.0 M16 3.50
UCPH210-32 2   110 206 159 70 20 23 22 165 51.6 19.0 M16 3.50
UCPH211  55 120 219 171 75 20 23 23 181 55.6 22.2 M16 4.07
UCPH211-32  2   120 219 171 75 20 23 23 181 55.6 22.2 M16 4.07
UCPH211-34  2-1/8    120 219 171 75 20 23 23 181 55.6 22.2 M16 4.07
UCPH211-35 2-3/16   120 219 171 75 20 23 23 181 55.6 22.2 M16 4.07
UCPH212    60 130 235 186 85 20 23 24 197 65.1 25.4 M16 6.31
UCPH212-36  2-1/4    130 235 186 85 20 23 24 197 65.1 25.4 M16 6.31
UCPH212-38  2-3/8   130 235 186 85 20 23 24 197 65.1 25.4 M16 6.31
UCPH212-39 2-7/16   130 235 186 85 20 23 24 197 65.1 25.4 M16 6.31
