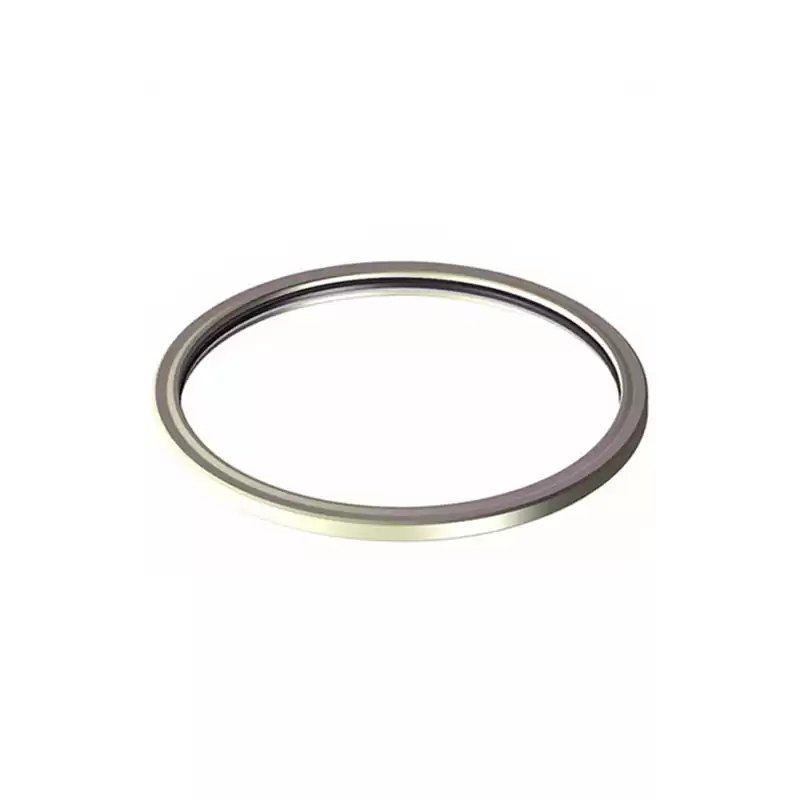

PEEK OFS ID face seal

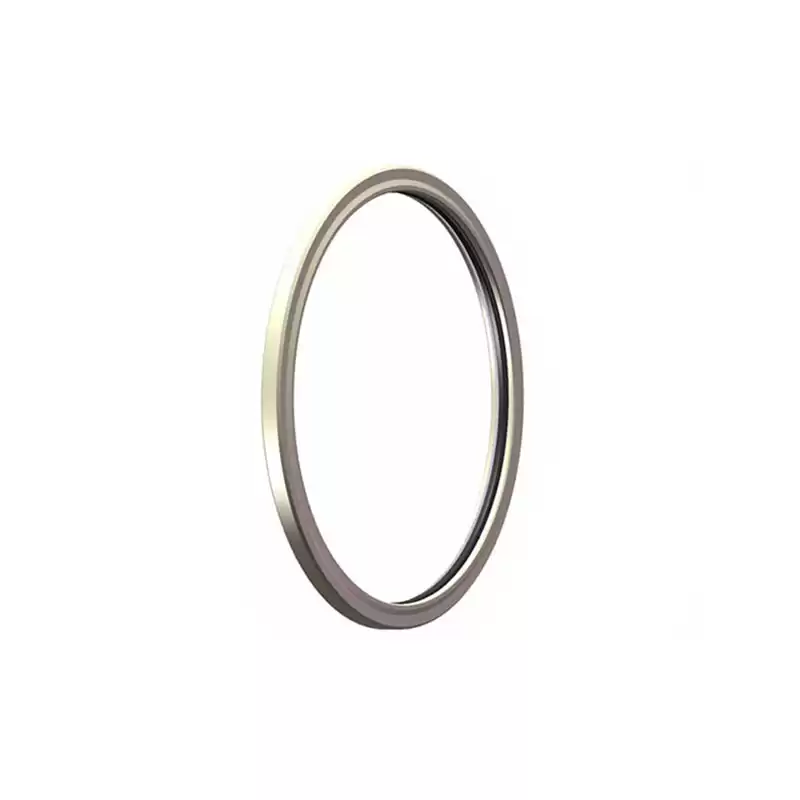

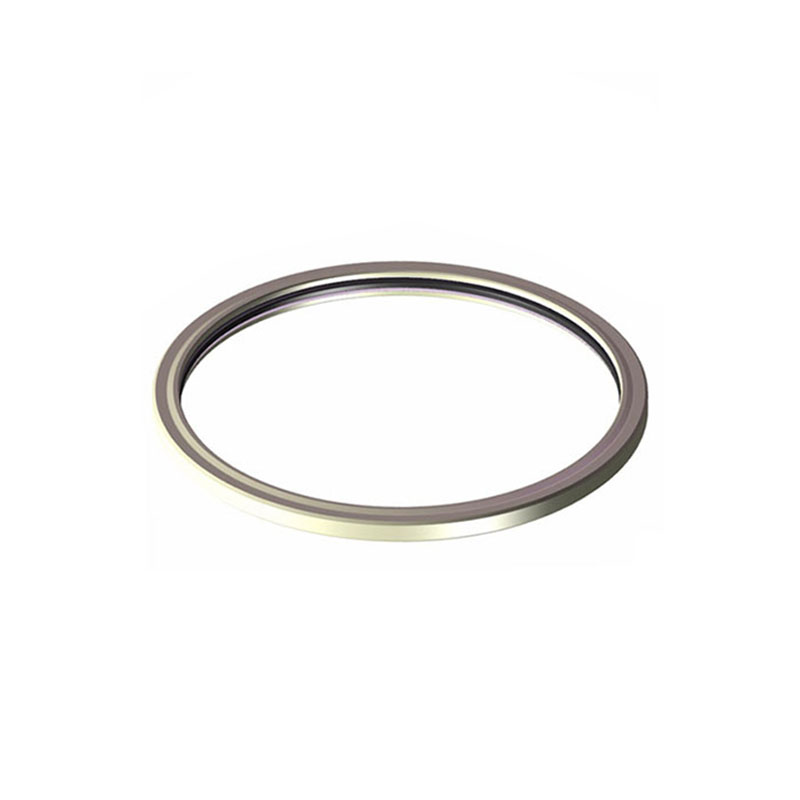

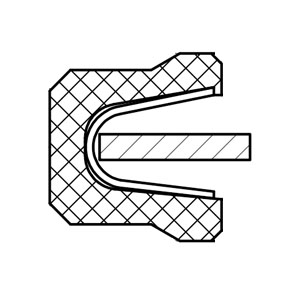

ID Face Seal for Cameron Type FLS Gate Valves, are spring-loaded, pressure-energized lip seal that improve gate and seat service life for all Cameron style FLS gate valves.

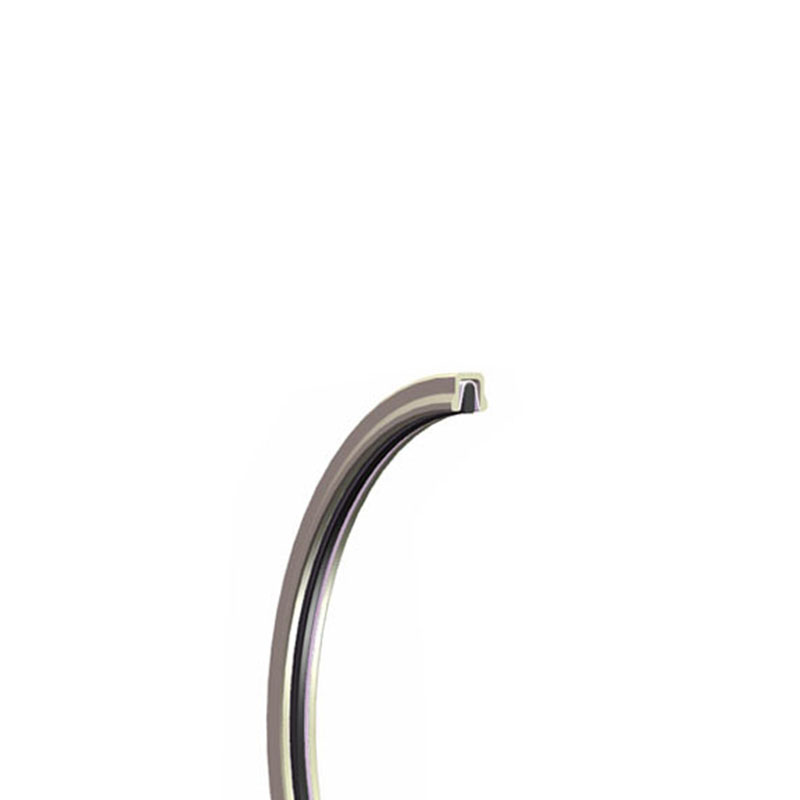

It is an end face mechanical seal with both rigid and flexible elements, which gives consistent contact at the sealing interface.
|
Advantages:
1. Over 15 different ID face seal options
2. Sizes ranging from 1-13/16β to 7-1/16β
3. Pressures ranging from 5,000-15,000 PSI
4. PR2 tested
|
Working Conditions
|
Working Pressure
|
Working Temperature
|
Working Medium
|
Material
|
5000~15000PSI
|
PU, LU, PX, LX
|
Hydraulic fluids, crude oil, sour oil/gase, H2S, salty water
|
PEEK, Elgiloy/SS steel, Filled PTFE
|
Application Suggestion:
FLS valve, FLS-R valve
Size:
2-1/16"
2-9/16"
3-1/16"
4-1/16"
5-1/8"
7-1/16"
|
|
Valve Nominal Diameter
|
Pressure Level
|
Seat inner ring
|
|
Inch
|
MM
|
psi
|
Mpa
|

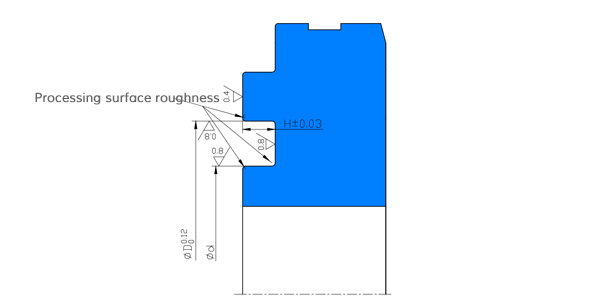

Groove OD
|
Groove ID
|
Groove depth
|
|
1-13/16"
|
46
|
10K/15K
|
70/105
|
64.34mm (2.533in)
|
57.15mm (2.250in)
|
3.10mm (0.122in)
|
|
2-1/16"
|
52
|
2K/3K/5K/10K
|
14/21/35/70
|
|
2-1/16"
|
52
|
15k
|
105
|
|
2-9/16"
|
65
|
3K/5k
|
21/35
|
92.58mm (3.645in)
|
85.09mm (3.350in)
|
|
2-9/16"
|
65
|
10k
|
70
|
77.29mm (3.043in)
|
70.00mm (2.756in)
|
|
2-9/16"
|
65
|
15k/20K
|
105/140
|
95.25mm (3.750in)
|
86.16mm (3.392in)
|
|
3-1/16"
|
78
|
10k/15K/20K
|
70/105/140
|
92.58mm (3.645in)
|
85.09mm (3.350in)
|
|
3-1/8"
|
80
|
2K/3K/5K
|
14/21/35
|
|
4-1/16"
|
103
|
3K/5K
|
21/35
|
118.01mm (4.646in)
|
110.49mm (4.350in)
|
|
4-1/16"
|
103
|
10k
|
70
|
|
4-1/16"
|
103
|
15K
|
105
|
120.70mm (4.750in)
|
111.10mm (4.370n)
|
|
5-1/8"
|
130
|
5k
|
35
|
149.20mm (5.874in)
|
139.70mm (5.500in)
|
|
6-3/8"
|
162
|
3k/5K
|
21/35
|
184.15mm (7.250in)
|
169.85mm (6.687in)
|
|
7-1/16"
|
180
|
3k/5K
|
21/35
|
|
7-1/16"
|
180
|
5K/10K
|
35/70
|
203.20mm (8.000in)
|
189.71mm (7.469in)
|
4.70mm (0.185in)
|
