PEEK OFS OD face seal
OD Face Seal are 100% compatible with Cameron Type FLS and FLS-R Gate Valves, It is spring-loaded and pressure-energized to improve gate and seat service life.
|
Advantages:
1. Over 15 different ID face seal options
2. Sizes ranging from 1-13/16β to 7-1/16β
3. Pressures ranging from 5,000 to 15,000 PSI
4. PR2 tested
|
Working Conditions
|
Working Pressure
|
Working Temperature
|
Working Medium
|
Material
|
5000~15000PSI
|
PU, LU, PX, LX
|
Hydraulic fluids, crude oil, sour oil/gase, H2S, salty water
|
PEEK, Elgiloy/SS steel, Filled PTFE
|
Application Suggestion:
FLS valve, FLS-R valve
Size:
2-1/16"
2-9/16"
3-1/16"
4-1/16"
5-1/8"
7-1/16"
|
|

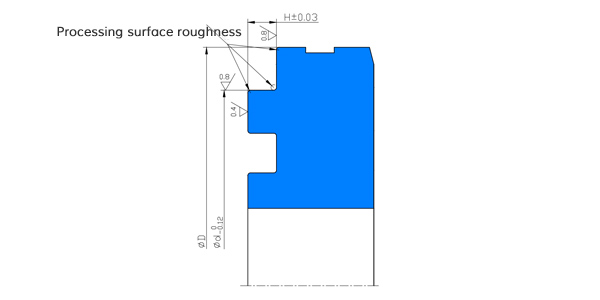

Valve Nominal Diameter
|
Pressure Level
|
Seat inner ring
|
|
Inch
|
MM
|
psi
|
Mpa
|
Groove OD
|
Groove ID
|
Groove depth
|
|
1-13/16"
|
46
|
10K/15K
|
70/105
|
70.69mm (2.783in)
|
78.31mm (3.083in)
|
3.10mm (0.122in)
|
|
2-1/16"
|
52
|
2K/3K/5K/10K
|
14/21/35/70
|
|
2-1/16"
|
52
|
15k
|
105
|
86.13mm (3.390in)
|
95.25mm (3.750in)
|
|
2-9/16"
|
65
|
3K/5k
|
21/35
|
111.81mm (4.402in)
|
120.40mm (4.740in)
|
|
2-9/16"
|
65
|
10k
|
70
|
92.61mm (3.646in)
|
101.70mm (4.004in)
|
|
2-9/16"
|
65
|
15k/20K
|
105/140
|
102.11mm (4.020in)
|
109.98mm (4.330in)
|
|
3-1/16"
|
78
|
10k/15K/20K
|
70/105/140
|
111.81mm (4.402in)
|
120.40mm (4.740in)
|
|
3-1/8"
|
80
|
2K/3K/5K
|
14/21/35
|
102.11mm (4.020in)
|
109.98mm (4.330in)
|
|
4-1/16"
|
103
|
3K/5K
|
21/35
|
124.89mm (4.917in)
|
133.40mm (5.252in)
|
|
4-1/16"
|
103
|
10k
|
70
|
130.99mm (5.157in)
|
139.40mm (5.488in)
|
|
4-1/16"
|
103
|
15K
|
105
|
136.52mm (5.375in)
|
146.05mm (5.750in)
|
|
5-1/8"
|
130
|
5k
|
35
|
158.80mm (6.252in)
|
168.30mm (6.626in)
|
|
6-3/8"
|
162
|
3k/5K
|
21/35
|
196.85mm (7.750in)
|
211.12mm (8.312in)
|
|
7-1/16"
|
180
|
3k/5K
|
21/35
|
196.85mm (7.750in)
|
211.12mm (8.312in)
|
|
7-1/16"
|
180
|
5K/10K
|
35/70
|
215.90mm (8.500in)
|
231.24mm (9.104in)
|
4.70mm (0.185in)
|
