Specification:
-
Material: FR4 PCB
-
Layer count: 2 layers
-
Board thickness: 1.6mm
-
Finish copper thickness: 1.0 oz
-

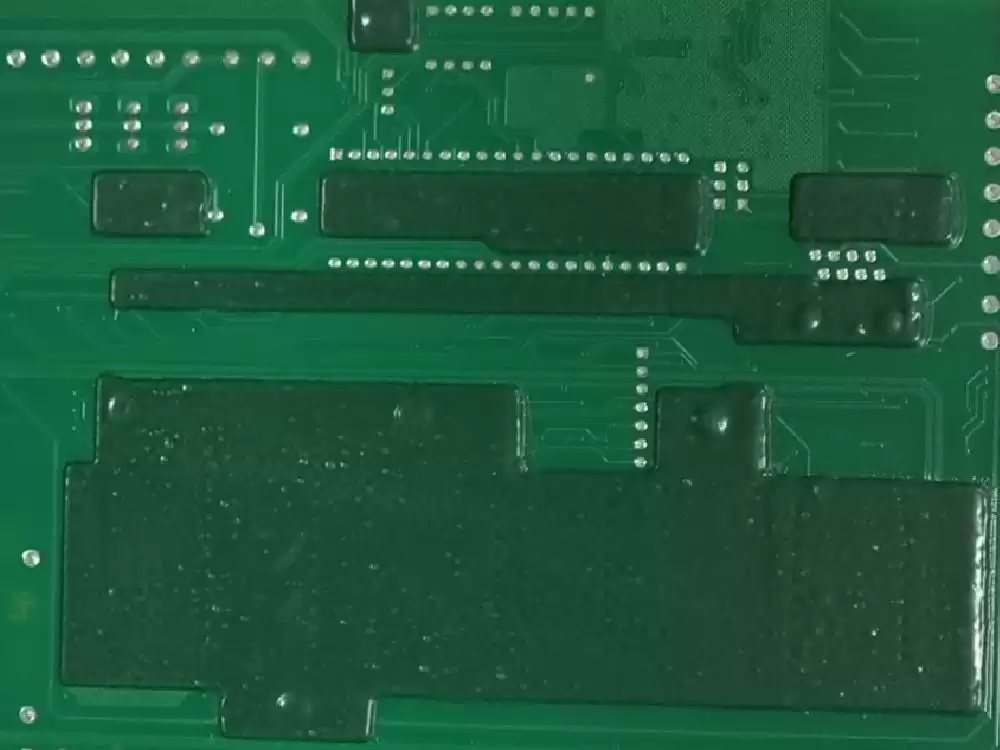

Surface treatment: LF HAL, peelable mask
Our Capability:
Diameter of hole with
peelable mask
|
Max.: 3.5mm
Min.: 0.7mm
|
Diameter of Pad with
peelable mask
|
Min.: 0.25mm
|
Thickness of peelable
solder mask
|
Min.: 0.13mm
|
Space between peelable mask
and opening bonding Pad
|
Min.: 0.5mm
|
PCB Manufacturing Process Flow:
FAQ:
A. Why choose High Precision
Technology as PCB supplier?
-- High Precision Technology specialises on PCB manufacturing since 2011 with
rich experiences. We mainly use KB & Shengyi Brand laminiate, Rongda &
Taiyo brand oil and strictly compliance to IPC-6012 class 2. In our Hunan new
factory, all procedures are made in-house. The quality and price can be
controlled effectively. If you are still looking for a suitable supplier of PCB
fabrication, contact us, we will supply professional and flexible support.
B. What’s
kind of certificates do you have?
-- We have certificate ISO9001, ISO14001, UL, TS16949 etc.
C. What's
lead time?
-- The lead time can be negotiable to meet your demands.
D. What is
MOQ (Minimum Order Quantity)?
-- There is no MOQ for new PN, sample is welcome.
E. What informations need to be
supplied for quote?
-- Order quantity, Gerber file, PCB specification ( base
material, layer, PCB finished thickness, base copper thickness, surface
treatment, solder mask color, and others if you have )
F. Is the
files for quote or manufacturing safer?
-- Yes, it is safe as we are professional PCB manufacturer
and Non-disclosure agreement can be signed if you need. All documents from
customers are never shared with any third parties.
G. When can
the quotation be supplied?
-- All quotation can be supplied within 24 hours.
HASL has excellent
solderability and good shelf life. HASL PCB Finish—ENIG PCB Finish is a
double-layer metallic coating with nickel that acts both as a protective
barrier for copper circuits and as a surface finish.
