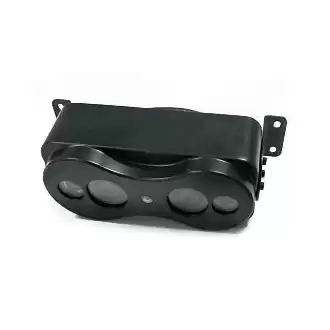

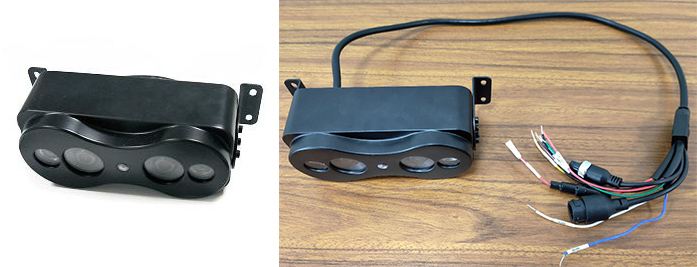

People Counting Camera Dual Sensor Stereo Vision

Item

Parameters

Performance

Basic parameters

Image sensor

SONY  1/3 CCD

Horizontal Resolution

700TVL

Lens

5 mm

Resolution

960(Horizontal)×576(Vertical), 3.6 mm（2.8mm/3.6mm/4mm/6mm, Optional）

Day and night

Electronic auto color turn to black

Shutter speed

1/50S to 1/80000S, 1/60S to 1/80000S,

Frame rate

25frames/Sec

Gain

Automatic gain control

S/N

＞48db

Video

Video input

2 composite video inputs

Video input impedance

1 Channel video input, 75Ω

Video output

1 Channel Output

Video output voltage

2VP-P CVBS Output analog signal

Video Display

1/4 Screen Display

Signal system

PAL/NTSC optional

Electrical parameters

Alarm input (I / O)

2 chs IO Input. Low voltage trigger below 1V, High voltage trigger above 5V

RS485

One RS485 interface

RJ45

One RJ45 Ethernet Port

Power supply

DC10V～36V

Working current

370MA≤

ACC detection

≤4V, shutdown, ≥5V, Power On

relative humidity

10%～90%（no condensation）

Operating temperature

-25℃～70℃

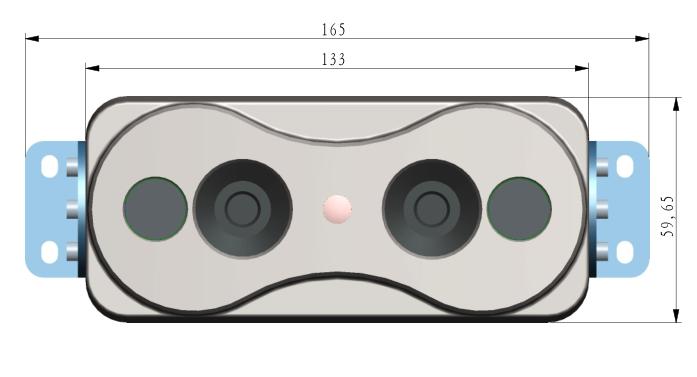

Size

133(W)mmx50(H)mmx59.65(L)mm

weight

≤0.6kg
