All products

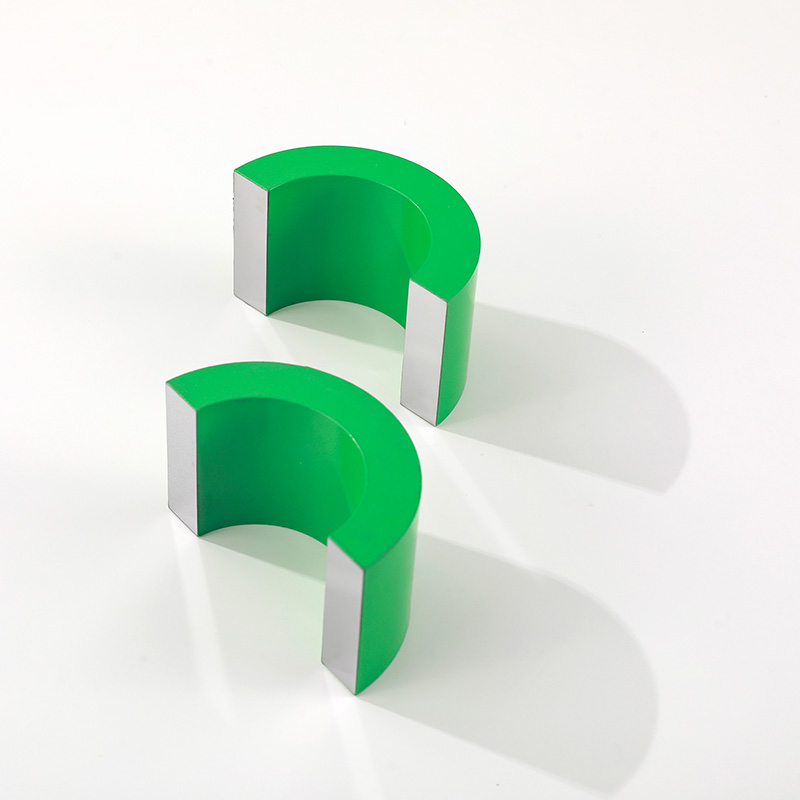

Soft Iron Core Energy Harvesting Transformer 1J85 Permalloy Current Transformer Core

Permalloy refers to an iron-nickel alloy with a wide range of nickel content, ranging from 35% to 90%. The biggest feature of Permalloy is its high magnetic permeability in weak magnetic fields. Their saturation magnetic induction intensity is generally between 0.6-1.0T.

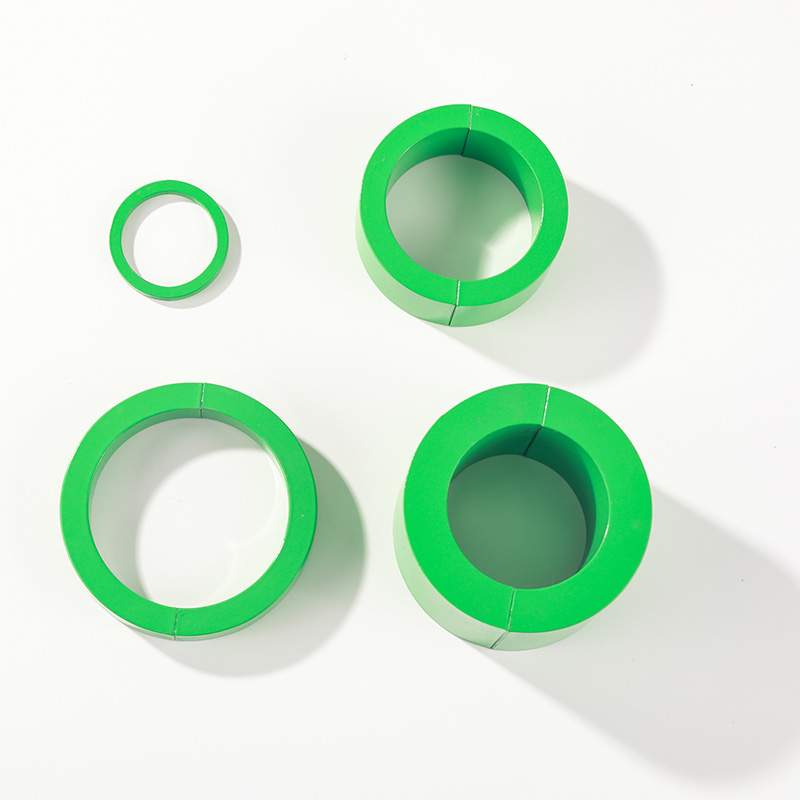

High Permeability Transformer Soft Magnetic Core Material Current Transformer Core Permalloy

Permalloy can be divided into 4 categories according to composition: 35%~40% Ni-Fe alloy, 45%~50% Ni-Fe alloy, 50%~65% Ni-Fe alloy and 70%~81% Ni-Fe alloy . Each type can be made into materials with circular hysteresis loop, rectangular hysteresis loop or flat hysteresis loop.

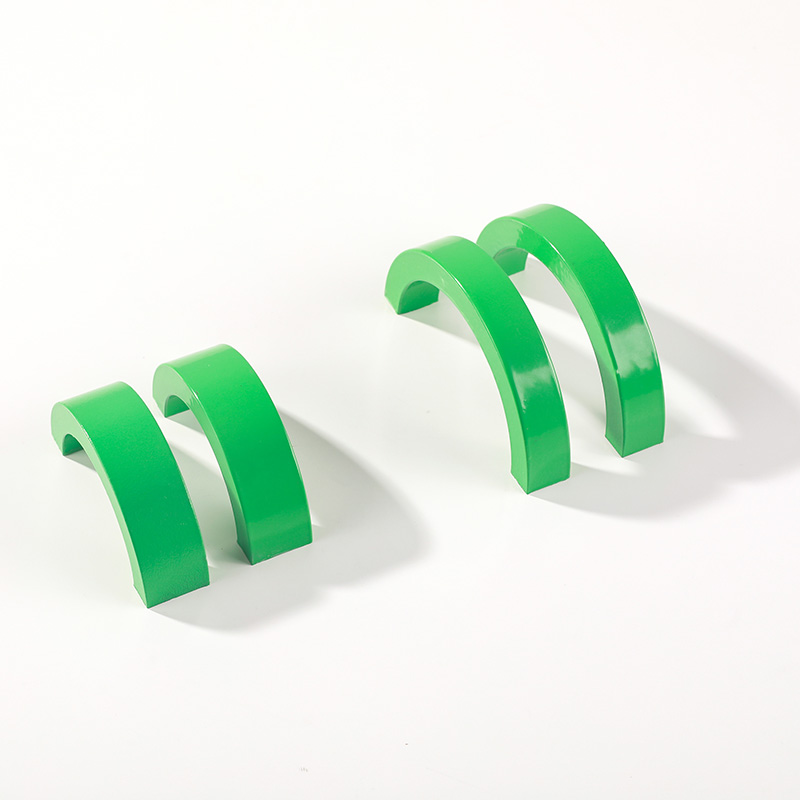

Low Iron loss Ferronickel Iron Nickel Alloy Current Transformer Core Permalloy Core

Permalloys often refer to iron-nickel alloys with a nickel content in the range of 30 to 90%. It is a very widely used soft magnetic alloy. The saturation magnetic induction strength is slightly lower than that of silicon steel, but the permeability is much higher than that of silicon steel, and the iron loss is also lower than that of silicon steel, making it a very good core material.

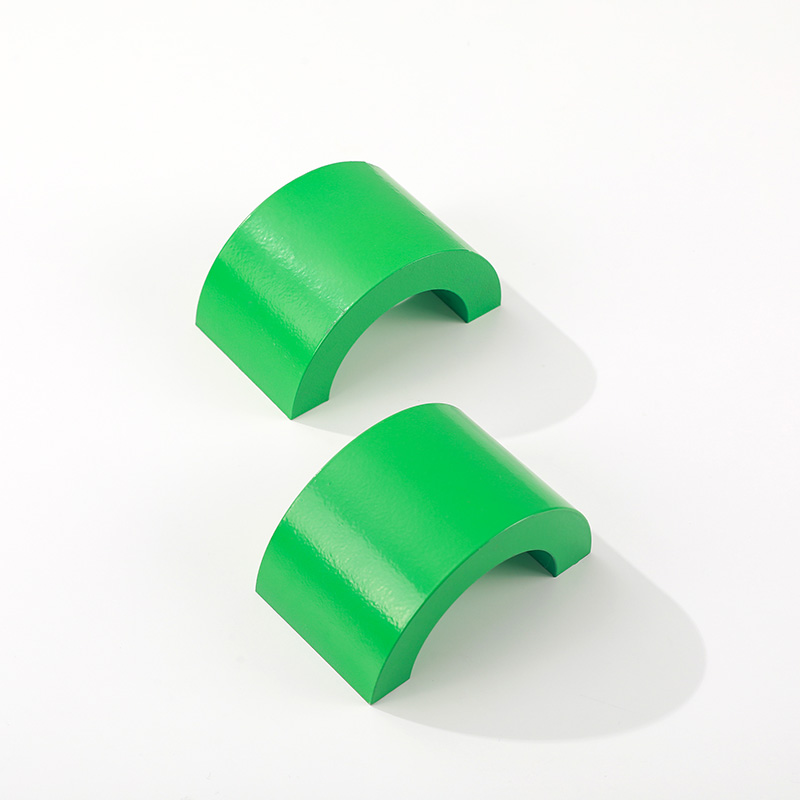

Iron Nickel Alloy Permalloy Transformer Ring Power Supply Ferronickel Current Transformer Core

China's Permalloy grade is 1JXX, where J means "precision alloy", "1" means soft magnetic, followed by a number for the serial number, usually indicates the nickel content of the alloy. For example, 1J50, 1J851 and so on. Perm alloy has high permeability, so it is often used in the core of medium and high frequency transformers or devices with strict requirements for sensitivity, such as high frequency (tens of kHz) switching power transformers, precision transformers, leakage switching inductors, magnetic shielding, yokes and so on.

Showing 1 to 1 of 1 (1 Pages)
