Permalloy / Nickel Alloy Ring Core for GFCI & RCD

* High initial permeability and saturation magnetic induction.
* Excellent temperature stability.
* Supreme resistance against high current impulse.
* Lower core loss.
Permalloy core is widely used for zero phase current transformers and GFCI coils.



Permalloy / Nickel Alloy Ring Core for GFCI & RCD


Widely used on Zero phase Current Transformer and GFCI current transformer


Dimensions Specification


Model No.

Type

Case Sizemm/inch)

Core Sizemm/inch)

Single Turn Performance

A

B

C

OD

ID

HT

Iin(1:1)mA

E(mV)

HP1201P

Laminated

7.6

13.45

3.16

12.2

8.8

0.35×5

25

>0.07

0.299

0.530

0.124

0.480

0.346

HP1201B

Laminated

8.23

14.36

3.1

12.2

8.8

0.35×5

25

>0.07

0.324

0.565

0.122

0.480

0.346

HP1201CB

Laminated

8.23

14.36

3.1

12.7

9.5

0.35×5

25

>0.07

0.324

0.565

0.122

0.500

0.374

HP1202P

Laminated

8.23

14.36

4.9

12.7

9.5

0.35×10

25

≥0.145

0.324

0.565

0.193

0.500

0.374

HP1301P

Laminated

8.8

14.9

3.27

13.4

9.8

0.35×5

25

>0.07

0.346

0.587

0.129

0.528

0.386

HP1302P

Laminated

9.8

14.7

3.6

13.5

11

0.35*7

25

0.06-0.09

0.386

0.579

0.142

0.531

0.433

HP1303C

Rolling

8.64

14.82

5.36

13.5

10

3.2

20

>0.2

0.340

0.583

0.211

0.531

0.394

0.126

HP1310C

Rolling

8.14

14.78

12.26

13

9

10

20

>0.06

0.320

0.582

0.483

0.512

0.354

0.394

HP1402P

Laminated

10.1

15.9

3.7

14.5

11.5

0.35*7

25

>0.07

0.398

0.626

0.146

0.571

0.453

HP1403P

Laminated

11.5

15.05

3.6

14.5

12.2

0.35*6

25

>0.05

0.453

0.593

0.142

0.571

0.480

HP1410C

Rolling

9.3

16

12.22

14.5

10

10

20

>0.6

0.366

0.630

0.481

0.571

0.394

0.394

HP1502C

Laminated

9.7

16.5

4.14

15

11

0.35×7

25

>0.065

0.382

0.650

0.163

0.591

0.433

HP1801P

Laminated

11.6

19.3

3.25

17.5

13.2

0.35×5

25

>0.07

0.457

0.760

0.128

0.689

0.520

HP7704C

Laminated

61.6

79.5

7.4

77

64

0.35*11

25

>0.05

2.425

3.130

0.291

3.031

2.520


Magnetic properties


Initial Permeability:80000 (Gs/Oe) min   /   Density:8.75 (g/cm3)
Maximum Permeability:400000 (Gs/Oe)  /  Curie Temperature:400 (℃)
Saturated Induction density:0.75 (T) /  Saturated Magnetostrictive Coefficient :0.0005
Resistivity:0.56 (μΩ*m)  / Coercive Force:<0.006 (Oe)

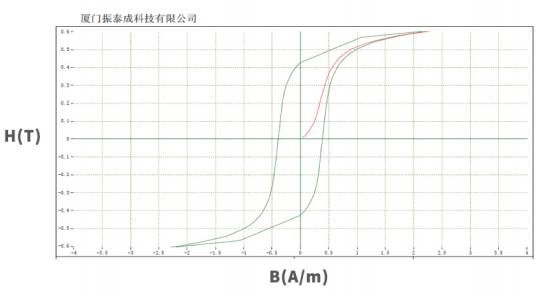

Magnetic characteristics curve



Core Drawing


Testing Data




Production Process


Implement ISO9001 / 14000 / IATF16949 to meet electrical and electric manufacturing and automobile industry requirement.



Testing


A series incoming and outcoming inspection ensure our products have high quality to meet customers requirement and outcoming pass rate less then 10PPM.


Packing and Shipping



We are specialized in permalloy / Nickel Alloy ring cores for current transformers, providing customized service and expertise in consulting, design and manufacturing.
