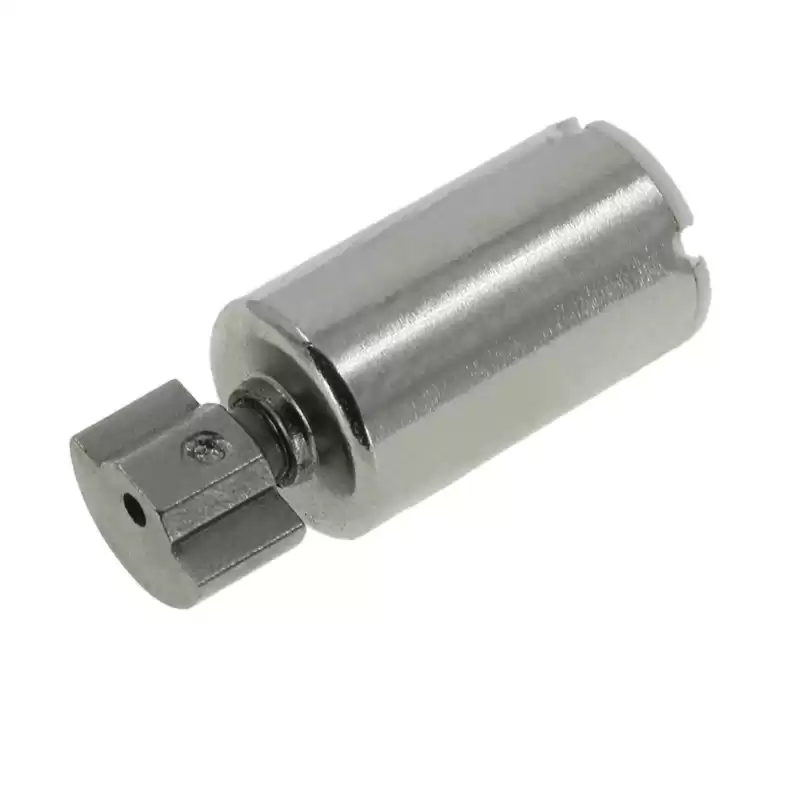

Permanent Magnet DC Coreless Miniature Silent Vibrator Motor

The coreless motor breaks through the rotor structure of traditional motor in structure, and adopts coreless rotor. This novel rotor structure completely eliminates the power loss caused by eddy current formed in the iron core.

About this item

• Dimension of the motor is 6 mm(D) x 14 mm(L) / 0.24" (D) x 0.55" (L).

• Shaft Diameter: 0.8 mm / 0.03" | Motor Diameter: 6 mm / 0.24" | Motor Length: 14 mm / 0.55".
• Rated Voltage Range: DC 1.5 ~ 3.7V | Speed: 20000 ~ 54000 RPM (the actual speed may be high or low).
• Weight: 1.8 g/pcs;  Lead wire: (+): Red wire; (-): Black wire.
• Please Comfirm the Motor Size, Voltage, Current and other parameters before purchase.

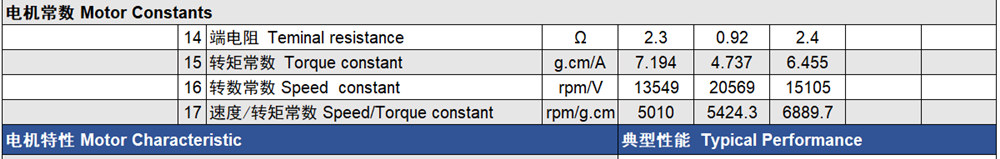

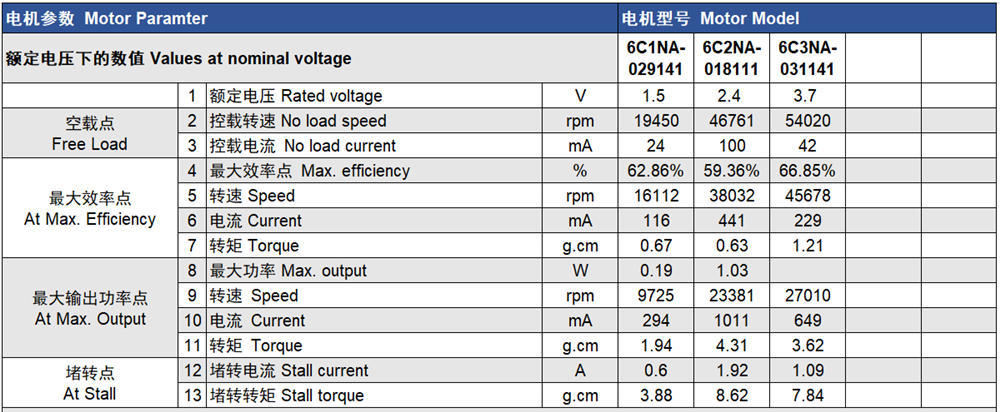

DC Brushes Micro Motor 6C614

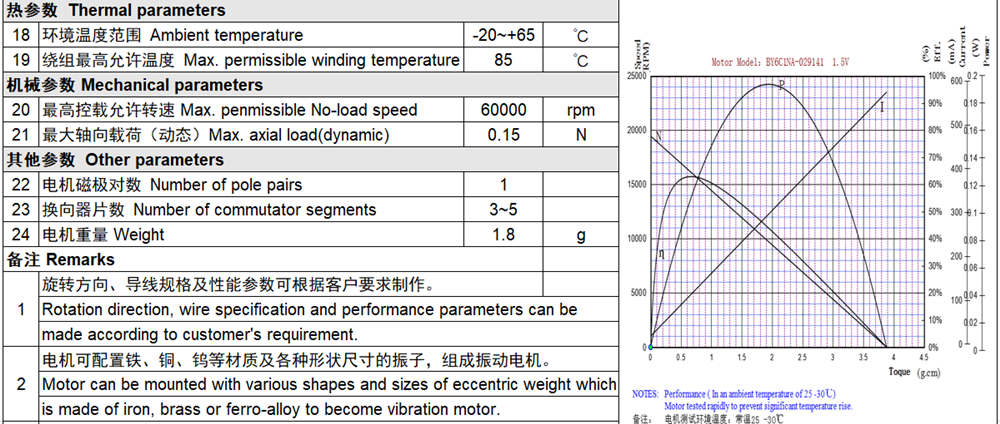

• Rotation direction, wire specification and performance performance parameters can be made according to customer's requirement.
• Motor can be mounted with various shapes and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.

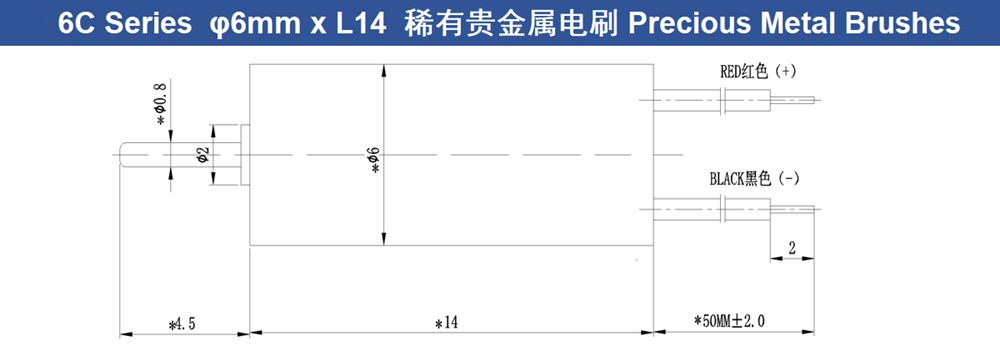

• Dimension with " * " in the drawing can be adjusted according to customer's requirement.

Feature

• Provides optimal starting torque;

• Low noise and power consumption while running;
• Optimized self-supporting coil and magnetic circuit;
• High quality, stable performance, strong power, long service time;
• This coreless motor is made of high quality metal material, which is waterproof, rust proof and durable, stable performance, easy to install and maintain.

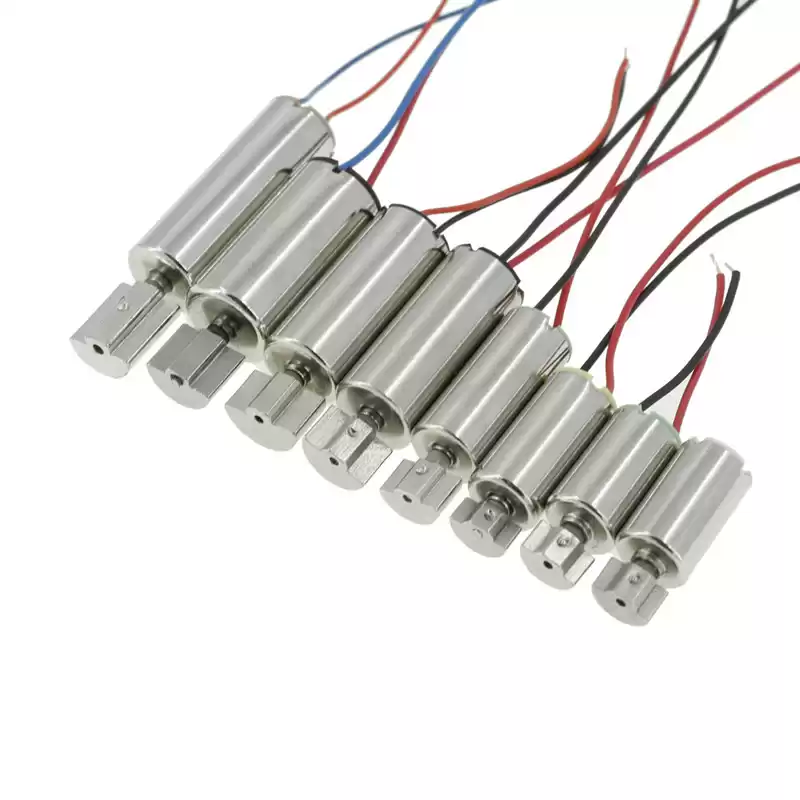

More Models

These micro motors come in a variety of different sizes and can be adapted to various applications to meet customer needs.

Application

Products are widely used in household appliances, small automated machinery, electronic products, massage health, beauty fitness, electric toys, aviation models, razors, electric toothbrushes, electronic door locks.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our motors are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
