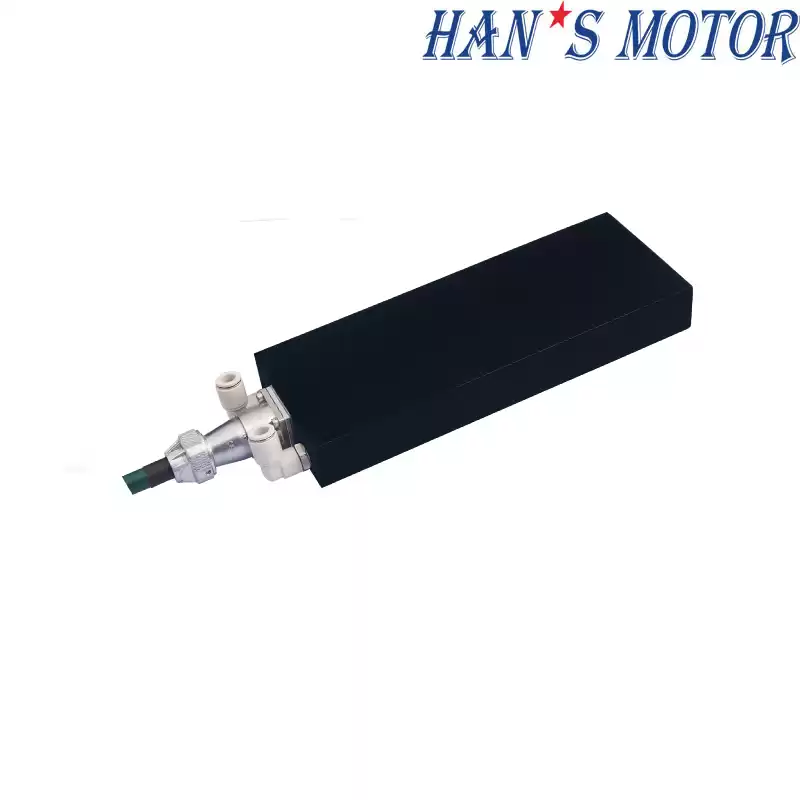

Product name：Permanent synchronous iron core linear motor LSMFL-50 For AOI optical inspection
Specifications
Mover Spec: LSMFL10xxxx-x-H-NC-N-C00.5
|
101A-S
|
101B-S
|
201A-S
|
201B-S
|
301A-S
|
401A-S
|
Performance Parameters
|
Symbol
|
Units
|
Series
|
Series
|
Series
|
Series
|
Series
|
Series
|
Continuous Force (Tmax）
|
Fc
|
N
|
59
|
59
|
118
|
118
|
176
|
236
|
Peak Force
|
Fp
|
N
|
157
|
157
|
314
|
314
|
466
|
628
|
Motor Constant (25℃)
|
Km25
|
N/Sqrt(W)
|
11.5
|
11.7
|
16.3
|
16.3
|
20.1
|
23.5
|
Max.Continuous Power Dissipation
|
Pc
|
W
|
36
|
35
|
72
|
72
|
105
|
138
|
Continuous Current (Tmax）
|
Ic
|
Arms
|
4.0
|
2.6
|
4.0
|
2.6
|
4.0
|
4.0
|
Peak Current (1S)
|
Ip
|
Arms
|
12.0
|
7.8
|
12.0
|
7.8
|
12.0
|
12.0
|
Force Constant (25℃，±5%）
|
Kf
|
N/Arms
|
14.8
|
22.7
|
29.5
|
45.4
|
44.0
|
59.0
|
Back EMF Constant (25℃，±5%）
|
Ke
|
Vrms/m/s
|
4.9
|
7.6
|
9.8
|
15.1
|
14.7
|
19.7
|
Resistance(25℃，±5%）P-P
|
R
|
Ω
|
1.1
|
2.5
|
2.2
|
5.1
|
3.2
|
4.2
|
Inductance(25℃，±20%）P-P
|
L
|
mH
|
4.5
|
11.0
|
9.0
|
22.0
|
13.5
|
18.0
|
Max Coil Temperature
|
Tmax
|
℃
|
120
|
120
|
120
|
120
|
120
|
120
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
2τ
|
mm
|
20
|
20
|
20
|
20
|
20
|
20
|
Magnetic Attraction
|
Fa
|
kN
|
0.3
|
0.3
|
0.7
|
0.7
|
1.0
|
1.3
|
Max.DC Bus Voltage
|
Ubus
|
V
|
600
|
600
|
600
|
600
|
600
|
600
|
Vmax,Fc@Vbus=310Vdc
|
|
m/s
|
21.6
|
13.8
|
10.5
|
6.6
|
6.9
|
5.0
|
Vmax,Fp@Vbus=310Vdc
|
|
m/s
|
12.2
|
7.6
|
5.8
|
3.5
|
3.7
|
2.6
|
Vmax,0@Vbus=310Vdc
|
|
m/s
|
25.4
|
16.5
|
12.7
|
8.2
|
8.5
|
6.3
|
Vmax,Fc@Vbus=537Vdc
|
|
m/s
|
37.9
|
24.3
|
18.7
|
11.9
|
12.4
|
9.1
|
Vmax,Fp@Vbus=537Vdc
|
|
m/s
|
21.7
|
13.6
|
10.6
|
6.5
|
6.9
|
5.0
|
Vmax,0@Vbus=537Vdc
|
|
m/s
|
44.2
|
28.8
|
22.1
|
14.4
|
14.8
|
11.0
|
Mover Mass
|
Mp
|
Kg
|
0.9
|
0.9
|
1.6
|
1.6
|
2.3
|
3.1
|
Stator Mass within unit length
|
Ms
|
Kg/m
|
3.3
|
3.3
|
3.3
|
3.3
|
3.3
|
3.3
|

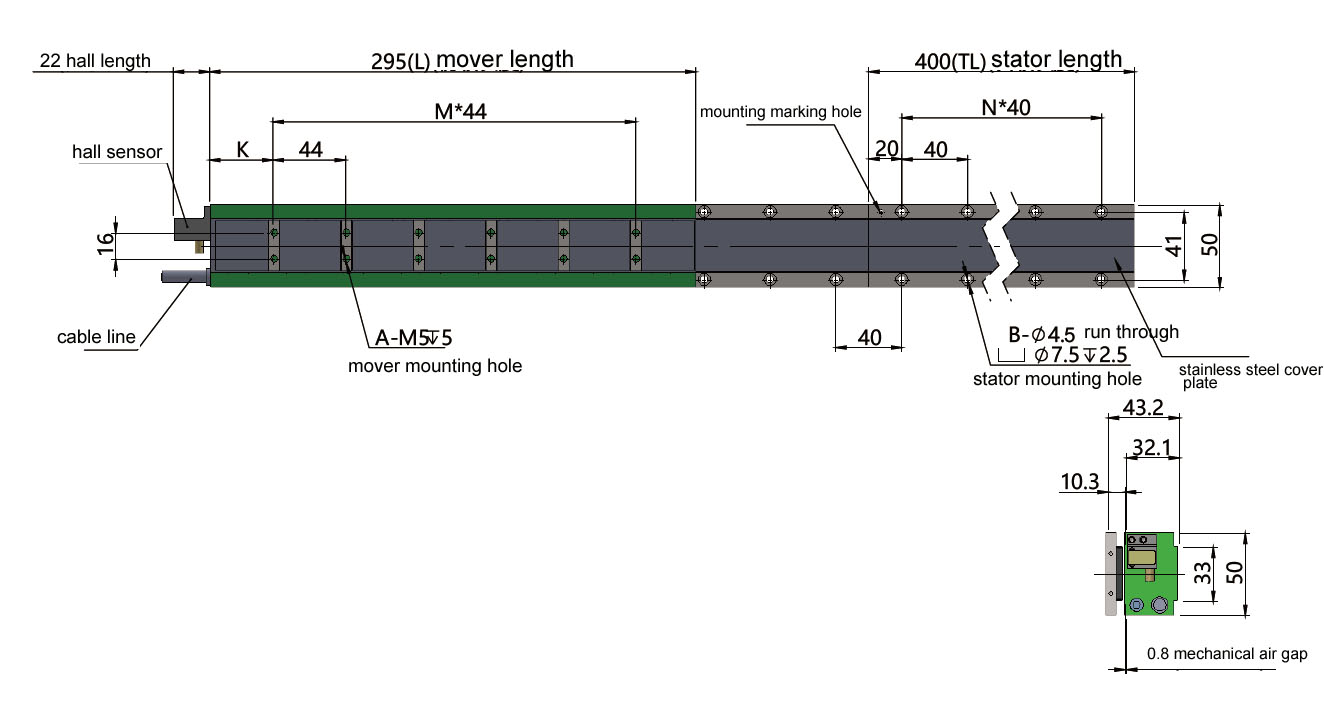

Dimension
|
Mover Length
|
Mover model
|
Mover length L
|
M
|
Mover mounting hole A
|
LSMFL10101A-S-H-NC-N-C00.5
|
85
|
1
|
21.5
|
LSMFL10101B-S-H-NC-N-C00.5
|
85
|
1
|
21.5
|
LSMFL10201A-S-H-NC-N-C00.5
|
155
|
2
|
34.5
|
LSMFL10201B-S-H-NC-N-C00.5
|
155
|
2
|
34.5
|
|
LSMFL10301A-S-H-NC-N-C00.5
|
255
|
4
|
25.5
|
LSMFL10401A-S-H-NC-N-C00.5
|
295
|
5
|
38.5
|
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
Stator Length
|
Stator model
|
Stator length TL
|
N
|
Stator mounting hole B
|
|
LSMFJ2A-W50-L40
|
40
|
0
|
2
|
|
LSMFJ2A-W50-L80
|
80
|
1
|
4
|
LSMFJ2A-W50-L200
|
200
|
4
|
10
|
LSMFJ2A-W50-L320
|
320
|
7
|
16
|
LSMFJ2A-W50-L400
|
400
|
9
|
20
|
Suitable for any mover of this series.
Industry Applications:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
